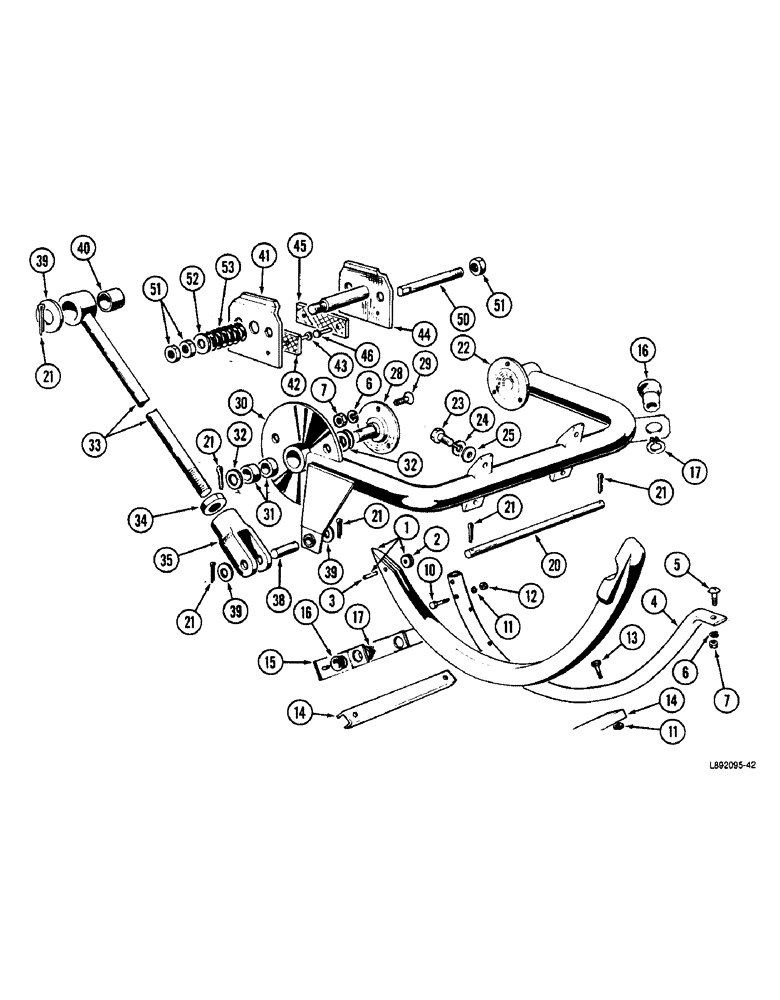

Запчасти Case IH 5420 (9-38) - NEEDLES, YOKE AND BRAKE (09) - CHASSIS

1

1337721C1

NEEDLE

ASSEMBLY - baler

2шт.

2

1337719C1

ROLLER

- needle

1шт.

3

1337720C1

PIN

- roller

1шт.

4

ZA551215

PIPE

GUARD - needle (Replaces 1337724C1)

2шт.

5

21556R1

SCREW

- pan head slotted, 3/8 NC x 1 inch

2шт.

6

120832

WASHER - lock, 3/8 inch

8шт.

7

120377

NUT,3/8" - 16, Gr 5

2шт.

10

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

11

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

12

120376

NUT,5/16"-18, G5

16шт.

13

180087

SPRING

- hex, 5/16 NC x 2 inch

6шт.

14

ZA551216

CHANNEL

GUARD - needle (Replaces 1337723C1)

2шт.

15

ZA551217

GUIDE

BRACKET - needle (Replaces 1337722C1)

1шт.

16

1337628C1

GUIDE

- twine (Replaces 1337717C1)

3шт.

17

1337817C1

RING

- snap

3шт.

20

1337718C1

PIN

- pivot

1шт.

21

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

6шт.

22

1337711C1

BRACKET

- needle

1шт.

23

30044R1

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 40 mm

4шт.

24

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

25

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat hardened, 17/32 x 1-1/16 x 1/8 inch

4шт.

28

1337712C1

BRACKET

- support

1шт.

29

21780R1

SCREW

- flat counter sunk head, 3/8 NC x 1-1/2 inch

6шт.

30

1337713C1

SUPPORT

ASSEMBLY - needle

1шт.

31

1337714C1

BUSHING

- support

4шт.

32

28585R1

WASHER

- flat, 1-1/32 x 1-5/8 x 1/16 inch

2шт.

33

1337816C1

ROD

- pitman

1шт.

34

3402651C1

NUT - hex jam, 16 mm

1шт.

35

1337715C1

YOKE

- pitman

1шт.

38

1337716C1

PIN

- pivot

1шт.

39

472635R1

WASHER

- flat, 19/32 x 1 x 3/64 inch

3шт.

40

1337705C1

BUSHING

- pitman

1шт.

41

1337707C1

YOKE

ASSEMBLY - brake

1шт.

42

1337708C1

LINING

- brake

1шт.

43

1337849C1

RIVET

- lining

2шт.

44

1337709C1

YOKE

ASSEMBLY - brake

1шт.

45

1337708C1

LINING

- brake

1шт.

46

1337849C1

RIVET

- lining

2шт.

50

1337710C1

PIN

- yoke

2шт.

51

1500081C1

THIN NUT

- hex jam, 12 mm

4шт.

52

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

53

1337706C1

SPRING

- brake

1шт.
