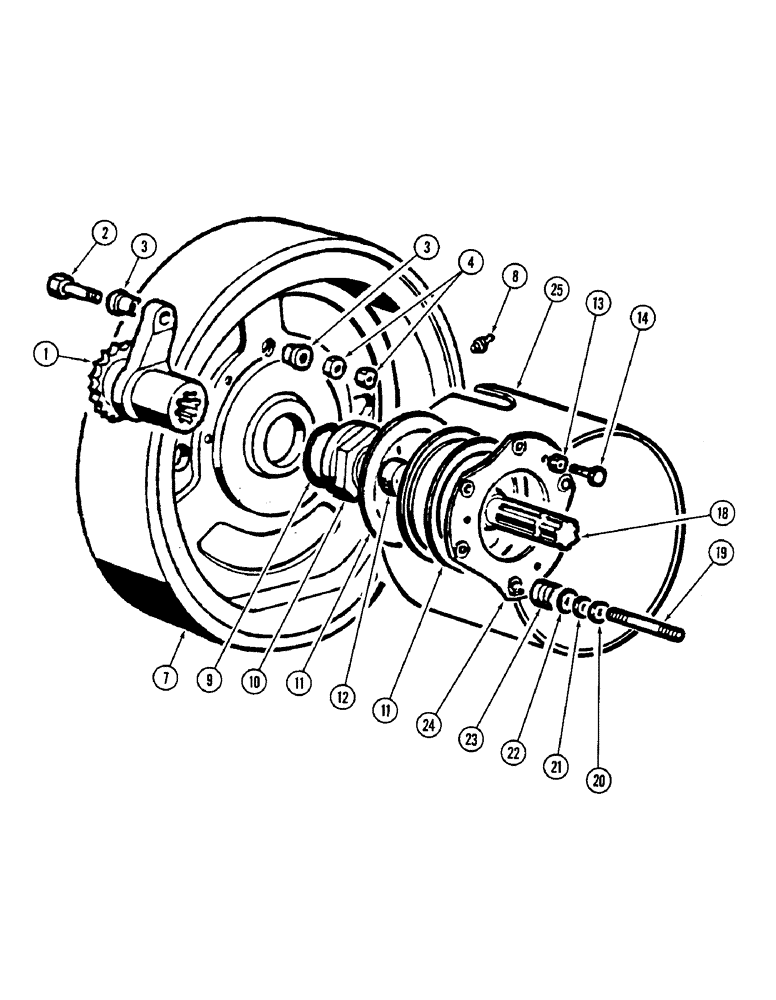

Запчасти Case IH 5420 (9-36) - MAIN DRIVE FLYWHEEL AND CLUTCH (09) - CHASSIS

1

1976426C1

HUB

- flywheel (Replaces 1337695C1)

1шт.

2

180089

SPRING

- hex shear, 5/16 NC x 2-1/4 inch

1шт.

3

1337652C1

SLEEVE

- shear bolt

2шт.

4

120376

NUT,5/16"-18, G5

2шт.

7

1976424C1

FLYWHEEL

- main drive (Replaces 1337694C1)

1шт.

8

1337832C1

FITTING

- straight lube 8 mm

1шт.

9

1337841C1

RING

O-RING - flywheel

1шт.

10

1337842C1

NUT

- retainer, flywheel

1шт.

11

1337698C1

DISC

- clutch

2шт.

12

1337697C1

BUSHING

- plate

1шт.

13

30168R1

NUT,M10, Cl 10

- hex, 10 mm

3шт.

14

30025R1

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10 mm - 1.50 x 50 mm

3шт.

18

1337699C1

PLATE

- drive, clutch

1шт.

19

1337702C1

ROD

STUD - plate, clutch

6шт.

20

1500081C1

THIN NUT

- hex jam, 12 mm

6шт.

21

30169R1

NUT,M12 x 1.75, Cl 10

- hex, 12 mm

6шт.

22

28288R1

WASHER - flat, 1/2 x 1-5/8 x 5/64 inch

6шт.

23

1337701C1

SPRING

- clutch

6шт.

24

1337700C1

PLATE

- clutch

1шт.

25

ZA551037

SHIELD

- PTO

1шт.
