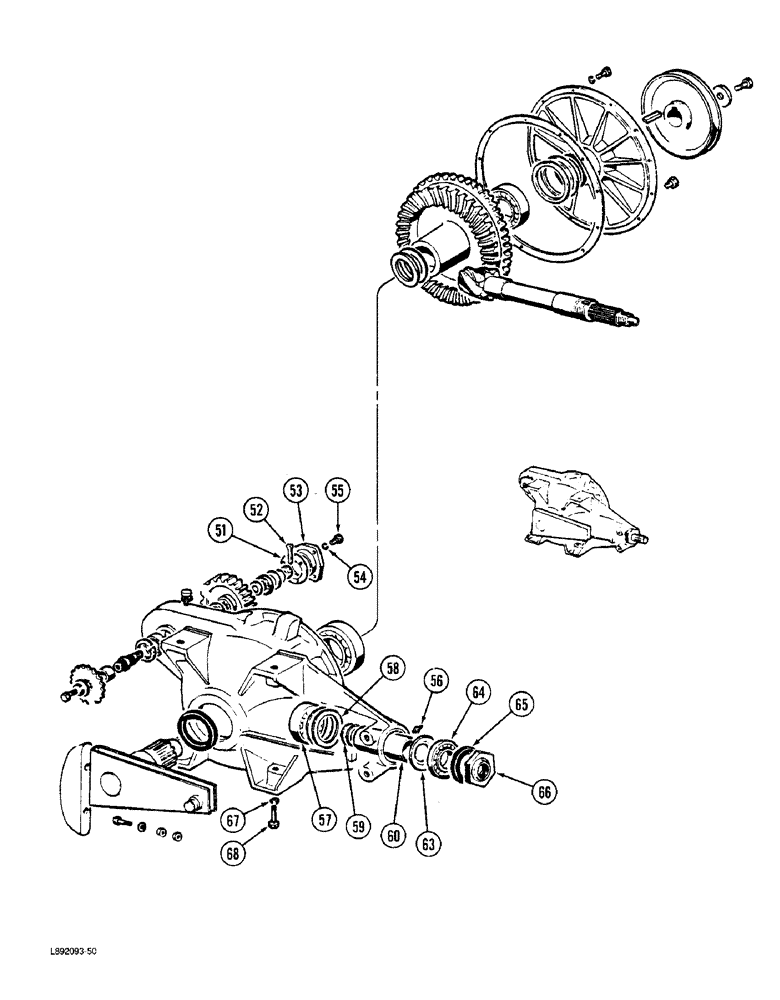

Запчасти Case IH 5420 (9-34) - MAIN DRIVE GEAR BOX, CONTINUED (09) - CHASSIS

1337704C1

HOUSING

GEAR BOX ASSEMBLY - main drive

1шт.

51

NSS

NOT SOLD SEPARAT

GASKET - cover (Order gasket eliminator)

1шт.

52

932956R1

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm

1шт.

53

1337681C1

COVER

- housing

1шт.

54

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

55

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

- hex, 8 mm - 1.25 x 20 mm

3шт.

56

1337832C1

FITTING

- straight lube, 8 mm

1шт.

57

1337838C1

BALL BEARING

- pinion, inner

1шт.

58

1337689C1

SHIM KIT

- bearing

1шт.

59

1337690C1

SHIM KIT

- bearing

1шт.

60

1337691C1

SPACER

- bearing

1шт.

63

1337692C1

DEFLECTOR

- oil

1шт.

64

1337839C1

BALL BEARING

- pinion, outer

1шт.

65

1337693C1

SEAL

- oil

1шт.

66

1337840C1

NUT

- pinion

1шт.

67

30686R1

LOCK WASHER,M18

WASHER - lock, 18 mm

6шт.

68

1337843C1

BOLT

- hex, 18 mm - 2.50 x 55 mm

2шт.

68

1337844C1

BOLT

- hex, 18 mm - 2.50 x 60 mm

4шт.
