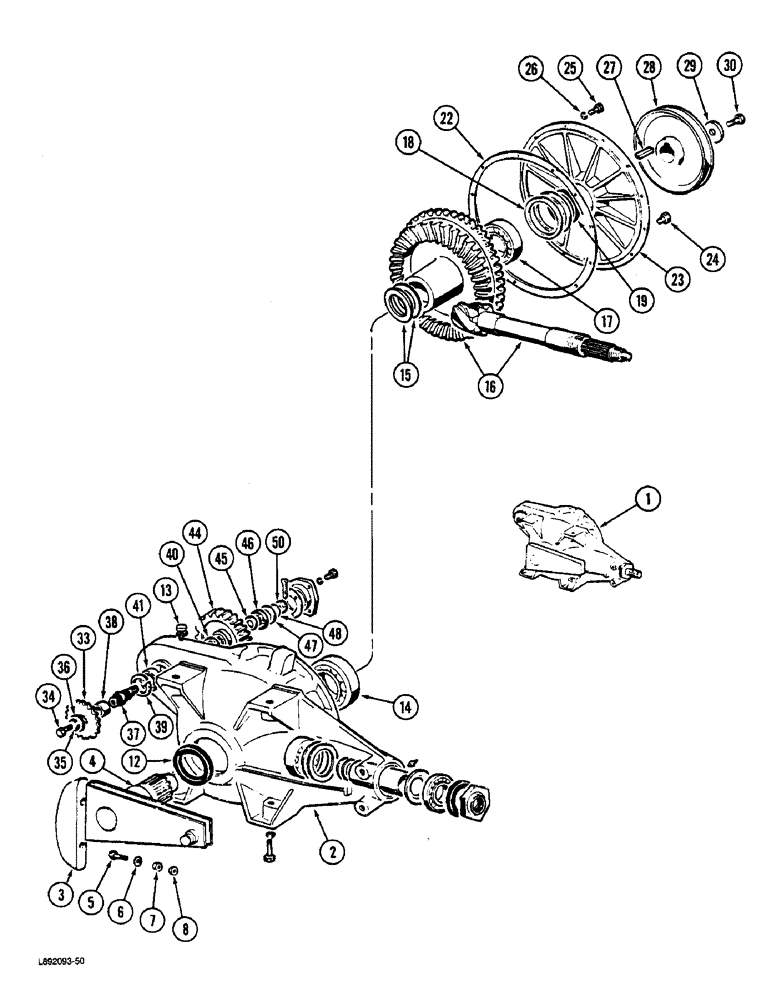

Запчасти Case IH 5420 (9-32) - MAIN DRIVE GEAR BOX (09) - CHASSIS

1

1337704C1

HOUSING

GEAR BOX ASSEMBLY - main drive

1шт.

2

1337674C1

HOUSING

- gear box

1шт.

3

1337703C1

WEIGHT

- counter

1шт.

4

1337670C1

PIN

- crank

1шт.

5

30074R1

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex, 16 mm - 2.0 x 90 mm

2шт.

6

21796R1

WASHER

- flat, 16 mm

3шт.

7

30170R1

NUT,M16, Cl 10

- hex, 16 mm

2шт.

8

3402651R1

NUT

- hex jam, 16 mm

2шт.

12

1337669C1

SEAL

- oil

1шт.

13

1337675C1

BREATHER

- housing

1шт.

14

1337837C1

BALL BEARING

ASSEMBLY - crank pin

1шт.

15

1337688C1

SHIM KIT

- bearing

1шт.

16

1337687C1

GEAR, BEVEL

PINION AND GEAR SET - drive

1шт.

17

3217760R91

TAPERED BEARING

- roller

1шт.

18

1337685C1

SHIM

- bearing

1шт.

19

1337684C1

SEAL

- oil

1шт.

22

1337686C1

GASKET

- cover

1шт.

23

1337683C1

COVER

- housing

1шт.

24

1337856C1

PLUG

- cover

1шт.

25

30044R1

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 40 mm Grade 10.9

11шт.

25

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 30 mm

1шт.

26

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

12шт.

27

1337855C1

KEY

- square

1шт.

28

1337682C1

PULLEY

SHEAVE - main drive

1шт.

29

1337836C1

WASHER

- flat, 17 mm

1шт.

30

931834R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 30 mm

1шт.

33

1337671C1

SPROCKET ASSY.

SPROCKET - drive (20 teeth)

1шт.

34

30041R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 25 mm

1шт.

35

933966R1

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

36

28288R1

WASHER - flat, 1/2 x 1-5/8 x 5/64 inch

1шт.

37

1337673C1

PIN

- gear

1шт.

38

1337672C1

SPACER

- sprocket

1шт.

39

933237R1

SNAP RING,M55, Int

RING - snap

1шт.

40

1337676C1

BUSHING

- gear

1шт.

41

463364R91

BALL BEARING,30 mm ID x 55 mm OD x 13 mm

- shaft

1шт.

44

1337677C1

GEAR

- spur (30 teeth)

1шт.

45

1337678C1

BUSHING

- gear

1шт.

46

81569C1

BEARING

- pin (Replaces 1337835C1)

1шт.

47

1337679C1

SHIM

- bearing

1шт.

48

21796R1

WASHER

- flat, 16 mm

3шт.

50

1337826C1

NUT

- hex, 16 mm

1шт.
