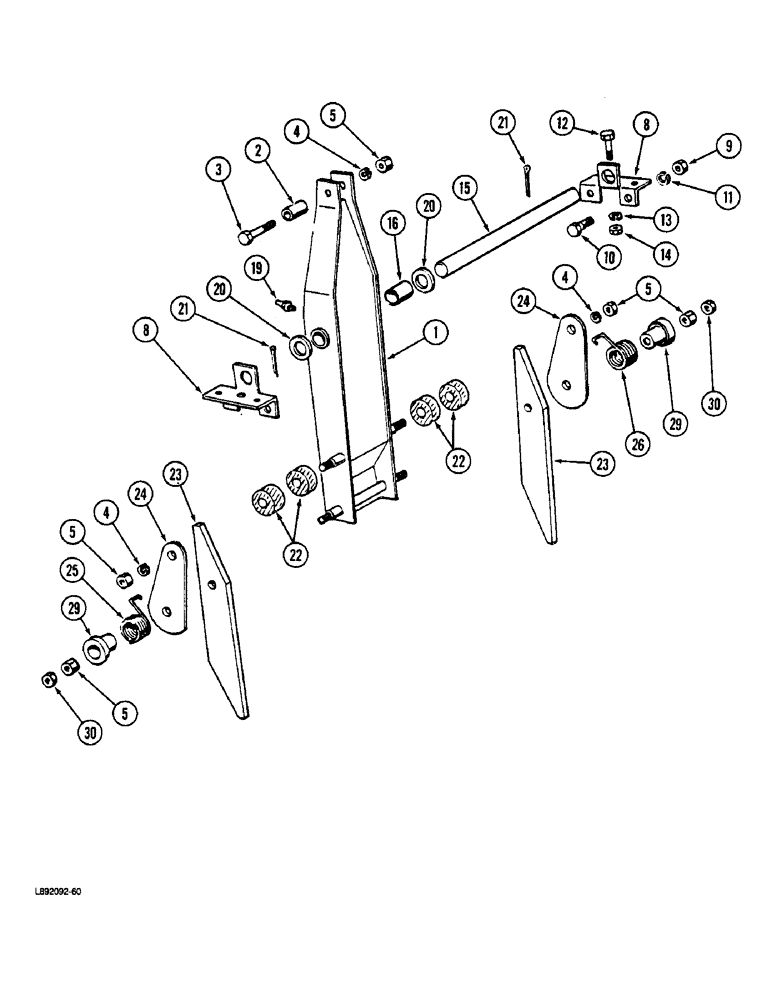

Запчасти Case IH 5420 (9-30) - FEEDER ARM AND FINGERS (09) - CHASSIS

1

1337660C1

ARM

- feeder

1шт.

2

1337659C1

SPACER

- arm

1шт.

3

30493R1

BOLT (SPREADER),Hex, M10 x 55, 8.8

BOLT - hex, 10 mm - 1.50 x 55 mm

1шт.

4

933965R1

LOCK WASHER,M10

3шт.

5

30168R1

NUT,M10, Cl 10

- hex, 10 mm

5шт.

8

1337661C1

BRACKET

- shaft

2шт.

9

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

12

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

13

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

120377

NUT,3/8" - 16, Gr 5

2шт.

15

1337662C1

SHAFT

- pivot, arm

1шт.

16

1337657C1

BUSHING

- shaft (Replaces 1337663C1)

2шт.

19

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

1шт.

21

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

22

1337664C1

SHOCK ABSORBER

ABSORBER - shock

4шт.

23

1337667C1

FORK

- feeder

2шт.

24

1337665C1

PLATE

- counter

2шт.

25

1337666C1

SPRING

- return

1шт.

26

1337668C1

SPRING

- return

1шт.

29

1960400C1

BUSHING

BEARING - spring (Replaces 1337657C1)

2шт.

30

30168R1

NUT,M10, Cl 10

- hex, 10 mm

2шт.
