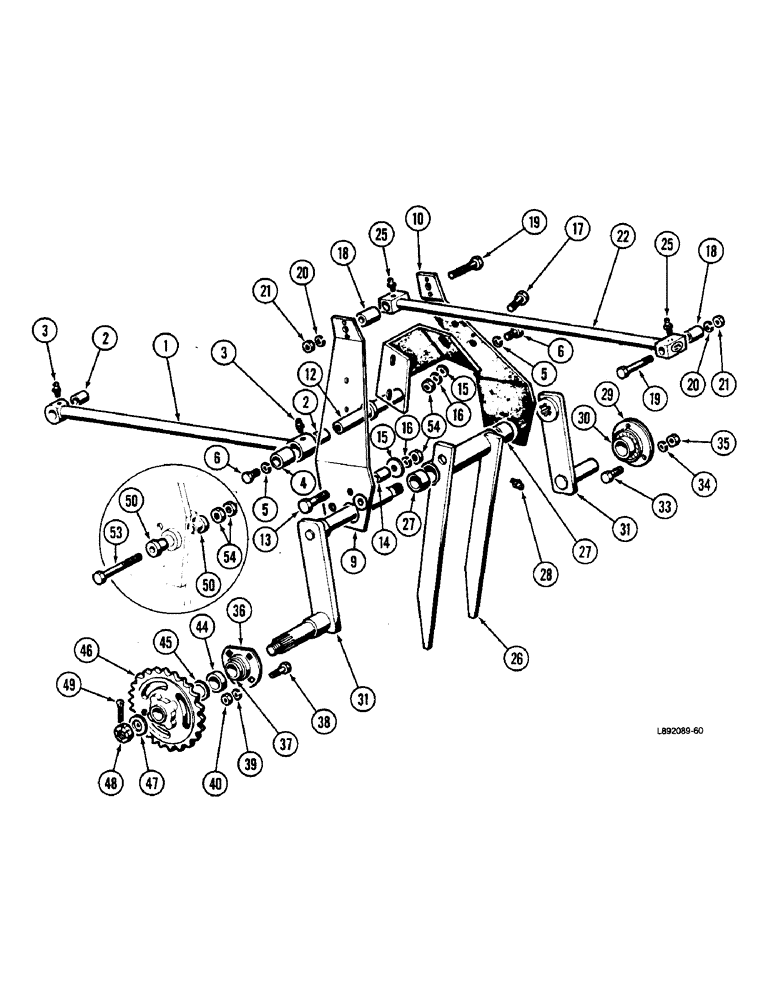

Запчасти Case IH 5420 (9-28) - PLUNGER SIDE FEEDER AND FINGERS (09) - CHASSIS

1

1337642C1

ROD

- link, lower

1шт.

2

1337644C1

BUSHING

- rod

2шт.

3

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

4

1337643C1

SPACER

- rod

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

30241R1

BOLT,Hex, M16 x 2 x 25mm, Class 10.9

2шт.

9

1337651C1

ARM

- front

1шт.

10

1337649C1

ARM

- rear

1шт.

11

1337647C1

SPACER

- arm

1шт.

12

1337645C1

PIN

- pivot

1шт.

13

931418R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 mm - 1.25 x 45 mm

1шт.

14

1337650C1

BUSHING

- bolt

1шт.

15

21496R1

WASHER

- flat, 11/32 x 3/4 x 7/64 inch

5шт.

16

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

17

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

- hex, 8 mm - 1.25 x 20 mm

4шт.

18

1337646C1

BUSHING

- rod

2шт.

19

30524R1

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

- hex, 10 mm - 1.50 x 65 mm

2шт.

20

933965R1

LOCK WASHER,M10

2шт.

21

30168R1

NUT,M10, Cl 10

- hex, 10 mm

2шт.

22

1337648C1

ROD

- Link, upper

1шт.

25

1337832C1

FITTING

- lube straight, 8 mm

2шт.

26

1337658C1

TOOTH

- plunger

1шт.

27

1337657C1

BUSHING

- tooth

2шт.

28

1337835C1

FITTING

- 45 degree lube, 6 mm

1шт.

29

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing

2шт.

30

3156361R91

SPHERICAL BEARING,30 mm ID x 62 mm OD x 21.6 mm

BEARING - crankshaft

1шт.

31

1337656C1

CRANKSHAFT

- plunger

1шт.

33

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

34

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

35

120377

NUT,3/8" - 16, Gr 5

3шт.

36

1337834C1

FLANGE

- bearing

2шт.

37

3155176R91

SPHERICAL BEARING,40 mm ID x 80 mm OD x 23.5 mm

- crankshaft

1шт.

38

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

39

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

40

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

44

1337655C1

SPACER

- bearing

1шт.

45

1337654C1

SHIM

- bearing

1шт.

46

1337653C1

SPROCKET ASSY.

SPROCKET - drive (45 teeth)

1шт.

47

118671

WASHER - flat, 21 x 55 x 4 mm

1шт.

48

1337829C1

NUT

- hex slotted

1шт.

49

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

50

1337652C1

SLEEVE

- shear bolt

2шт.

53

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex shear, 5/16 NC x 2-1/4 inch

1шт.

54

120376

NUT,5/16"-18, G5

1шт.
