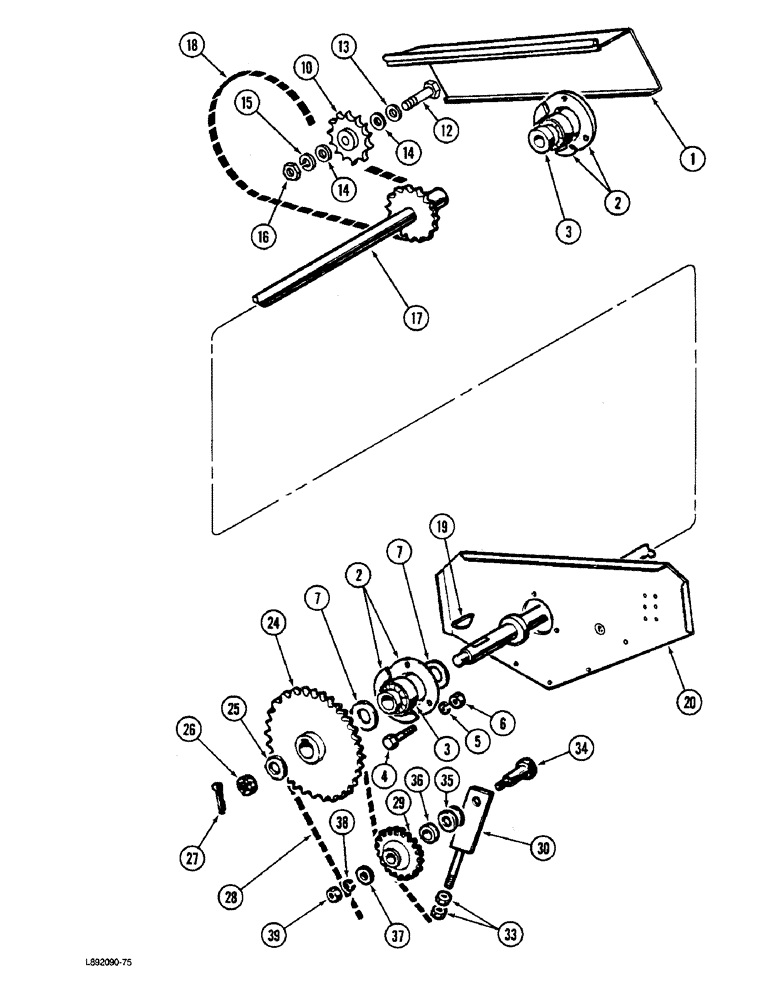

Запчасти Case IH 5420 (9-26) - PACKER FINGERS JACKSHAFT DRIVE (09) - CHASSIS

1

ZA551027

SHIELD

- knotters

1шт.

2

462360R1

FLANGED BEARING

- bearing

4шт.

3

3166068R91

BEARING ASSY,25 mm ID x 52 mm OD x 16.7 mm

ASSEMBLY - shaft

2шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

6шт.

5

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

120376

NUT,5/16"-18, G5

6шт.

7

21789R1

WASHER

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

10

541857R92

SPROCKET,15T

ASSEMBLY - idler (15 teeth)

1шт.

12

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

- hex, 5/8 NC x 3-1/2 inch

1шт.

13

21905R1

WASHER

- flat, 21/32 x 1-3/4 x 7/32 inch

5шт.

14

NLS

NO LONGER SERVICED

- flat, 21/32 x 1-5/16 x 5/64 inch

4шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

17

1337635C1

SHAFT

- drive, jackshaft

1шт.

18

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (See Note B)

1шт.

19

1337833C1

KEY

- shaft

1шт.

20

ZA551844

PLATE

PANEL - front, drive with decal (Replaces ZA551131)

1шт.

24

1337636C1

SPROCKET ASSY.

SPROCKET - drive (37 teeth)

1шт.

25

21224R1

WASHER

- flat, 29/32 x 1-1/2 x 5/32 inch

2шт.

26

1337829C1

NUT

- hex slotted

1шт.

27

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

28

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (See Note A)

1шт.

29

1337637C1

FRONT IDLER

SPROCKET ASSEMBLY - idler

1шт.

30

ZA551631

PLATE

- sprocket (Replaces 1337640C1)

1шт.

33

30167R1

NUT,M8, Cl 10

- hex, 8 mm, Cl 10

2шт.

34

1337641C1

PIN

- pivot

1шт.

35

131016

WASHER

- flat, 21/32 x 1-5/16 x 5/64 inch

1шт.

36

1337639C1

SPACER

- sprocket

1шт.

37

575807R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

1шт.

38

933965R1

LOCK WASHER,M10

1шт.

39

30168R1

NUT,M10, Cl 10

- hex, 10 mm

1шт.
