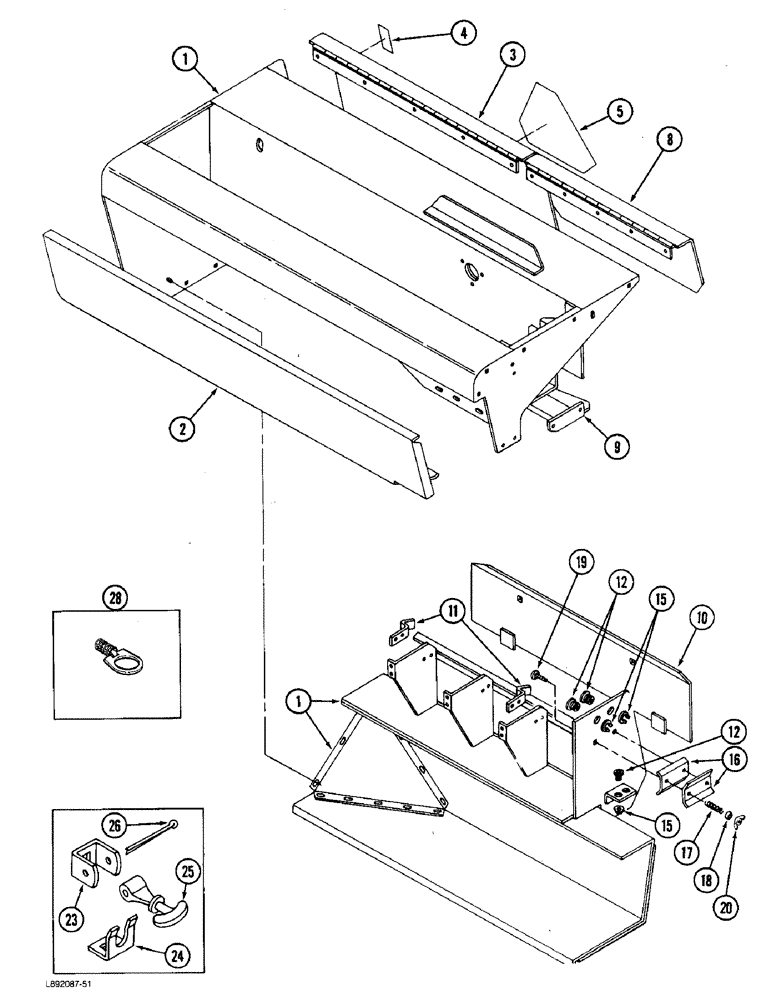

Запчасти Case IH 5420 (9-20) - RIGHT HAND HOOD ASSEMBLY (09) - CHASSIS

1

ZA551000

HOOD ASSY.

HOOD ASSEMBLY - right (With decals)

1шт.

2

ZA551043

PANEL

- front, hood

1шт.

3

ZA551153

COVER

ASSEMBLY - hood (With decals)

1шт.

4

1284374C1

REFLECTOR,Reflector Red

- cover

1шт.

5

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - SMV

1шт.

8

ZA551027

SHIELD

ASSEMBLY - knotters

1шт.

9

ZA551122

STRIPPER

ASSEMBLY - packer

1шт.

10

ZA551020

PANEL

ASSEMBLY - twine box

1шт.

11

ZA551003

CLIP

BRACKET -twine box

2шт.

12

1337628C1

GUIDE

- twine

4шт.

15

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

4шт.

16

662380R1

GUIDE

PLATE - tension, twine

2шт.

17

269920R2

SPRING

- tension, twine

2шт.

18

B32120

WASHER

- cup

2шт.

19

495058R2

BOLT,Carriage, 1/4" - 20 x 3"

- round head square neck

2шт.

20

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

23

ZA551019

HOLDER

- latch (Prior to P.I.N. CCB0000784)

1шт.

24

ZA551087

BRACKET

- latch (Prior to P.I.N. CCB0000784)

1шт.

25

1337626C1

LATCH

- panel (Prior to P.I.N. CCB0000784)

1шт.

26

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (Prior to P.I.N. CCB0000784) 5/32" x 1 1/4"

1шт.

28

188029C1

LATCH

- cover (P.I.N. CCB0000784 and after)

1шт.
