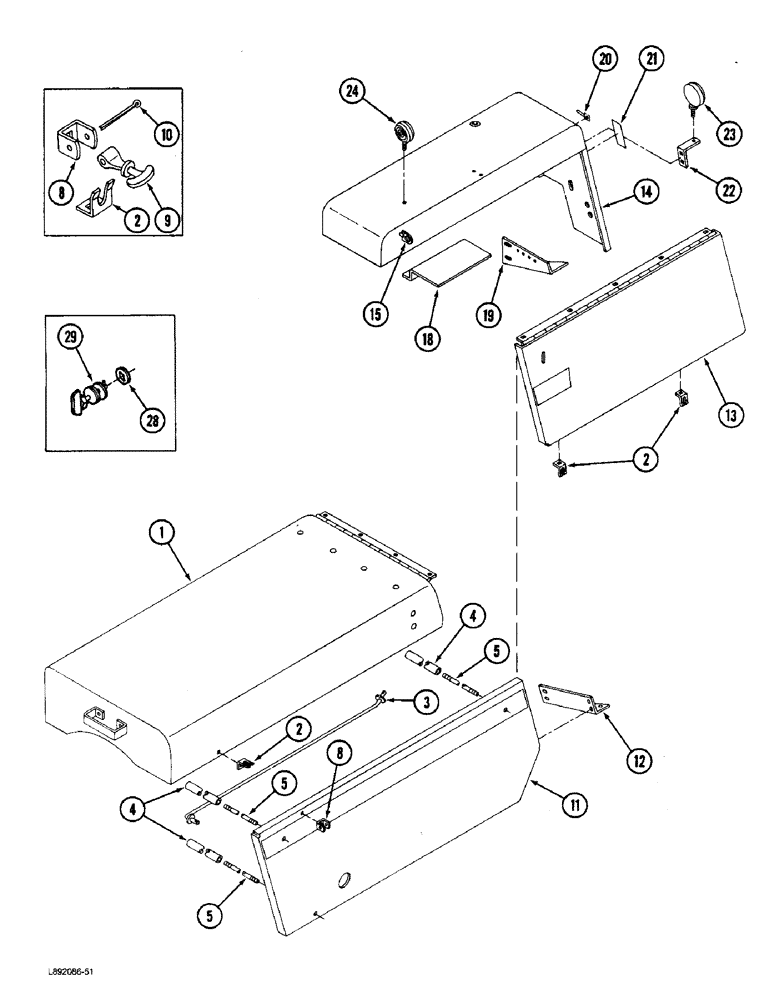

Запчасти Case IH 5420 (9-18) - HOOD AND SIDE SHIELDS (09) - CHASSIS

1

ZA551151

SHIELD

HOOD ASSEMBLY - baler (With decals)

1шт.

2

ZA551087

BRACKET

- latch (Prior to P.I.N. CCB0000784)

4шт.

3

ZA551404

ROD

- shield (Replaces ZA551134)

1шт.

4

ZA551036

SPACER

- shield

3шт.

5

ZA551083

ROD

- threaded

3шт.

8

ZA551019

HOLDER

- latch (Prior to P.I.N. CCB0000784)

1шт.

9

1337626C1

LATCH

- shield (Prior to P.I.N. CCB0000784)

4шт.

10

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (Prior to P.I.N. CCB0000784) 5/32" x 1 1/4"

4шт.

11

ZA551032

SHIELD

- belt, drive

1шт.

12

ZA551081

BRACKET

- shield

1шт.

13

ZA551075

SHIELD

- side

1шт.

14

ZA551152

SHIELD

ASSEMBLY - top (With decals)

1шт.

178068

PLUG - shield

2шт.

15

188029C1

LATCH

FASTENER - cam lock

1шт.

18

1337627C1

SHIELD

- lower

1шт.

19

ZA551082

BRACKET

- shield

1шт.

20

ZA701085

FASTENER

- shield

1шт.

21

1284374C1

REFLECTOR,Reflector Red

- red

1шт.

22

ZA708451

BRACKET

- light

1шт.

23

REF

INSTRUCTION

LIGHT ASSEMBLY - tail (See Page 4-3)

1шт.

24

REF

INSTRUCTION

LIGHT ASSEMBLY - flasher (See Page 4-3)

1шт.

28

ZA103937

WASHER

BRACKET - latch retaining (P.I.N. CCB0000784 and after)

2шт.

29

ZA103138

FASTENER

- latch (P.I.N. CCB0000784 and after)

1шт.
