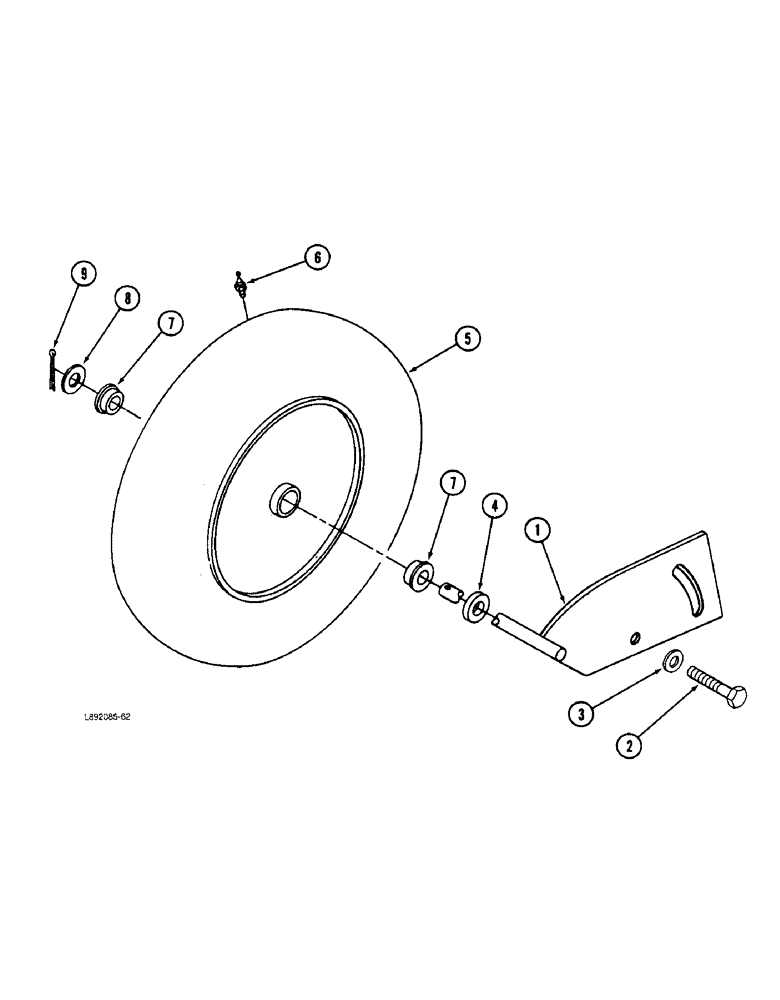

Запчасти Case IH 5420 (9-16) - GAUGE WHEEL (09) - CHASSIS

1

674175R1

SUPPORT

BRACKET - wheel, pickup

1шт.

2

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

- hex, 7/16 NC x 1-1/4 inch

1шт.

3

893862R1

WASHER

- flat, 15/32 x 1-1/4 x 7/64 inch

1шт.

4

467750R1

WASHER

- flat, 25/32 x 1-5/8 x 1/4 inch

1шт.

5

ZA104582

WHEEL

ASSEMBLY - gauge

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

ZA104825

BUSHING

BEARING - wheel, 1-25/64 inch OD

2шт.

7

669006R1

BUSHING

BEARING - wheel, 1-1/8 inch OD

2шт.

8

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

9

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.
