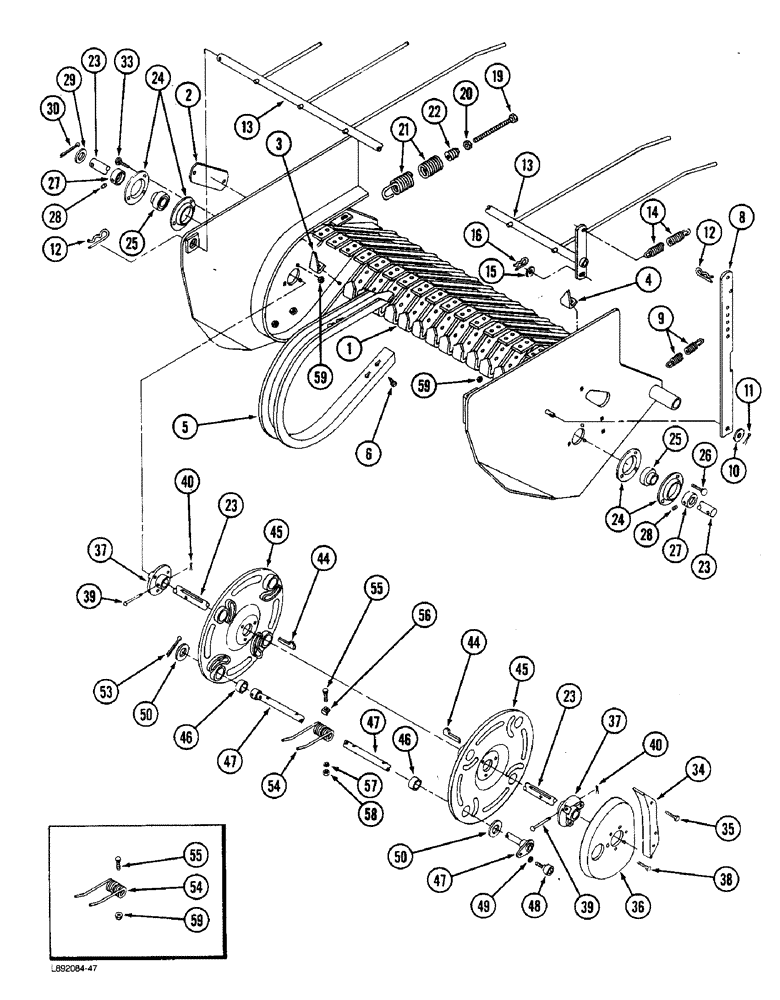

Запчасти Case IH 5420 (9-14) - PICKUP AND DRIVE (09) - CHASSIS

1

ZA551161

FRAME ASSY

FRAME ASSEMBLY - pickup

1шт.

2

ZA551144

COVER

- access

1шт.

3

ZA551147

RETAINER

- tine, right

1шт.

4

201738C1

RETAINER

- end, tine

1шт.

5

201989C1

STRIPPER

- center

17шт.

6

27950R1

SELF-TAP SCREW,Hex Hd, 5/16" x 3/4"

SCREW - hex self-tapping, 5/16 NC x 3/4 inch

68шт.

8

ZA551096

STRAP

- latch

1шт.

9

1337828C1

SPRING

- extension

1шт.

10

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

11

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

12

407210R1

CLIP

PIN - clip, hair type

2шт.

13

ZA551157

GUARD ASSY.

WINDGUARD ASSEMBLY - pickup

1шт.

14

97767C1

SPRING

- extension

1шт.

15

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

16

407211R1

CLIP

PIN - clip, hair type

1шт.

19

480556C1

BOLT,Spcl, 1/2" - 13 x 8"

- hex, 1/2 NC x 8 inch

1шт.

20

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

21

ZA761370

SPRING

ASSEMBLY - extension

1шт.

22

1281009C1

INSERT

- spring

1шт.

23

ZA551171

SHAFT

- drive, pickup

1шт.

24

462360R1

FLANGED BEARING

- bearing

4шт.

25

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

2шт.

26

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

3шт.

27

455102R21

COLLAR

- locking

2шт.

28

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

29

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 3/64 inch

1шт.

30

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

33

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

3шт.

34

202715C1

GUIDE

- roller, tooth bar

1шт.

35

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

3шт.

36

662317R2

CAM

- control

1шт.

37

659942R1

HUB

- drive, pickup cylinder

2шт.

38

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

6шт.

39

22753R1

HEADED PIN,5/16" x 2 3/16"

PIN, HEADED, 5/16" x 2 3/16"

2шт.

40

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

44

Q3931

KEY,Gib, 5/16" Sq x 1 7/8"

- tapered square, 5/16 x 1-7/8 inch

2шт.

45

667705R11

END

CYLINDER ASSEMBLY - pickup

2шт.

46

659437R1

BUSHING

- cylinder

4шт.

47

ZA551162

BAR ASSY.

BAR - tooth

4шт.

48

202719C91

BEARING ASSY,1.25" OD x 0.7812"

BEARING - follower, cam

4шт.

49

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

4шт.

50

21787R1

WASHER

- flat, 2-1/16 x 2-15/16 x 3/64

1шт.

53

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

4шт.

54

210614C1

FINGER,Coiled, 2 Prongs, 178mm L

TINE - pickup

36шт.

55

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

36шт.

56

ZA105429

CLIP

- tine pickup (P.I.N. CCB0000555 and after)

36шт.

57

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (P.I.N. CCB0000555 and after) 5/16"

36шт.

58

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (P.I.N. CCB0000555 and after)

36шт.

59

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC (Prior to P.I.N. CCB0000555)

36шт.
