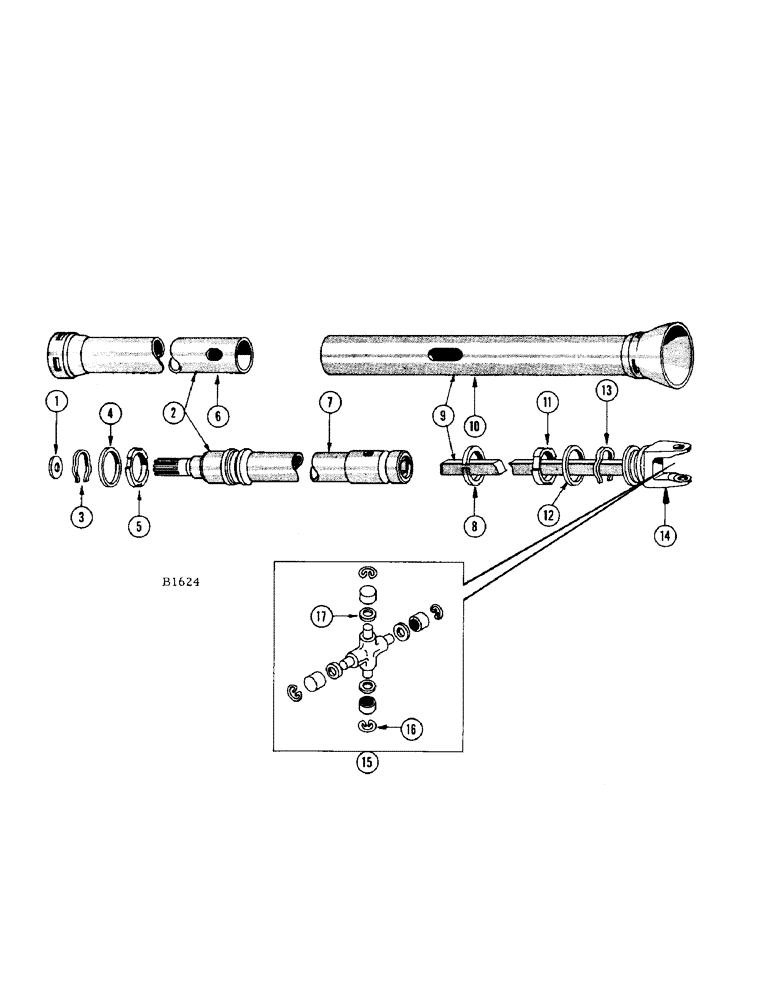

Запчасти Case IH 200 (10[A]) - PTO HANGER BEARING SHAFT, LONG DRAWBAR

1

F60918

WASHER - (1-1/2" O.D. x 17/32" I.D. x 3/16" thick)

1шт.

113-403

BOLT

SCREW - 1/2" x 1" N.C. nyloc hex. hd. cap

1шт.

2

F95553M

TUBE - hanger bearing end (Machinery item)

1шт.

3

F60925

RING, SNAP

SNAP RING - retaining

1шт.

4

F60927

WASHER

(2-3/4" O.D. x 2-7/16" I.D. x .067" thick) Thrust

1шт.

5

T19565

SHIELD

BEARING (Nylon) Thrust

1шт.

6

F95564

SHIELD - hanger bearing end

1шт.

7

F95565

TUBE - hanger bearing

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str. Lincoln #5000

1шт.

8

F60928

CENTER JOINT

BEARING (Nylon) Thrust

1шт.

9

F95554M

SHAFT - PTO (Machinery item)

1шт.

10

F95562

SHIELD - machine end

1шт.

11

T19565

SHIELD

BEARING (Nylon) Thrust

1шт.

12

F60927

WASHER

(2-3/4" O.D. x 2-7/16" I.D. x .067" thick) Thrust

1шт.

13

F60925

RING, SNAP

SNAP RING - retaining

1шт.

14

F95563

YOKE - universal joint, with shaft

1шт.

15

B13270

KIT

- universal joint center parts

1шт.

16

B13271

RING, SNAP

SNAP RING

4шт.

17

B13439

WASHER - cork

4шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" - 45 degree Lincoln #5200

1шт.

F95427

YOKE - universal joint, machine end (Not shown)

1шт.
