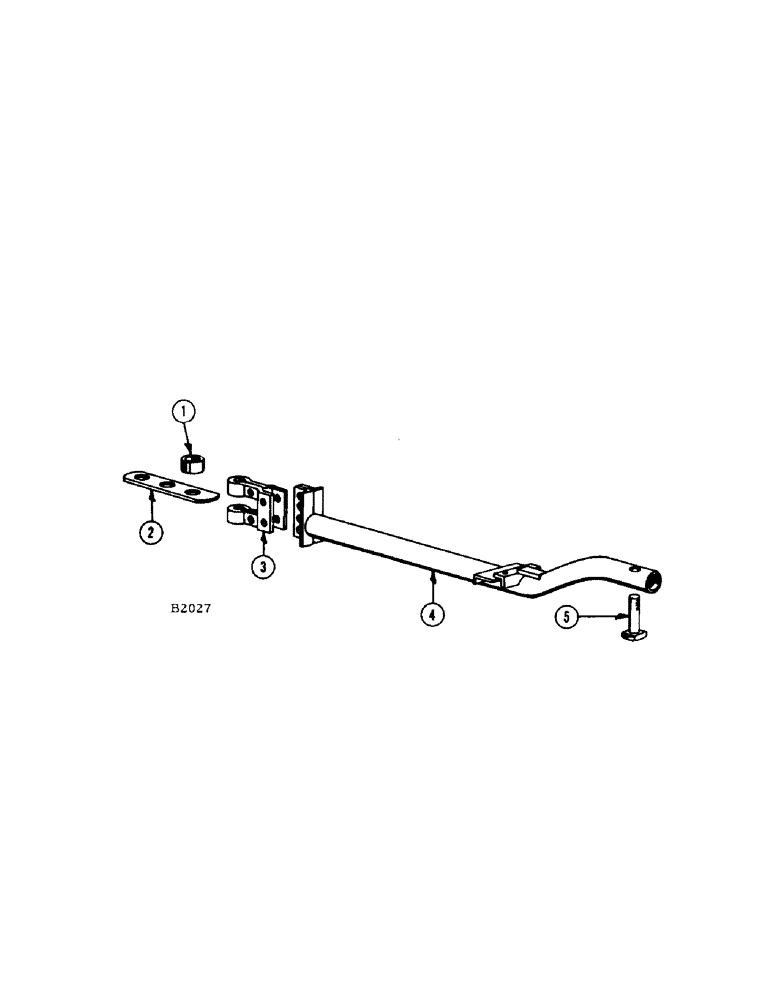

Запчасти Case IH 200 (08) - SHORT DRAWBAR, BEFORE SERIAL NO. 8221501

1

F60189

SPACER - drawbar extension

1шт.

BOLT - 3/4" x 2-3/4" N.F. hex. (14-1244) nut (25-1112) L.W. (92-12)

1шт.

2

F60690

EXTENSION - drawbar

1шт.

BOLT - 5/8" x 2-3/4" N.F. hex. (14-1044) nut (25-1110) L.W. (92-10)

1шт.

3

B18253

COUPLING

- drawbar

1шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) nut (25-118) L.W. (92-8)

2шт.

4

F95420

DRAWBAR

1шт.

BOLT - 1/2" x 1-1/2" N.C. hex. (13-824) nut (25-108) L.W. (92-8)

1шт.

5

3668HTA

BOLT - drawbar

1шт.

25-1212

NUT - 3/4" N.C. hex. slotted 3/4"-10, G5

1шт.

95-12

WASHER,3/4"

FLATWASHER - 3/4"

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.
