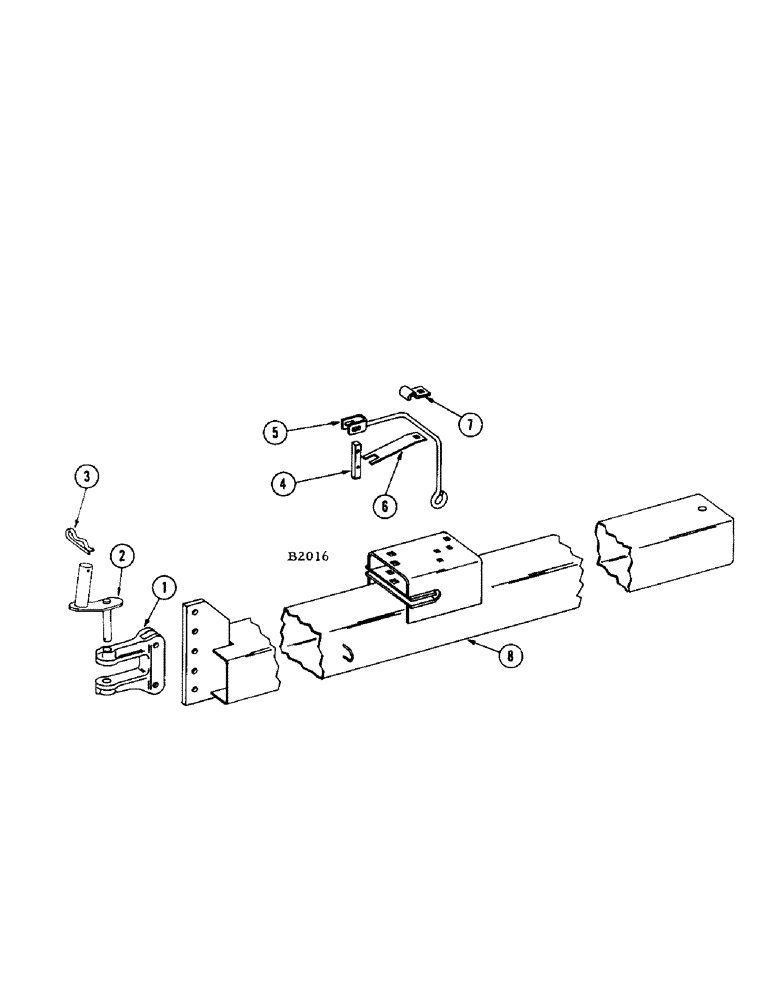

Запчасти Case IH 200 (08[A]) - SHORT DRAWBAR, SERIAL NO. 8221501 AND AFTER

1

F2563

CLEVIS

- drawbar

1шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) nut (25-118) L.W. (92-8)

2шт.

2

F95752

PIN - drawbar

1шт.

PIN - 1/8" x 1-1/4" cotter (132-50)

1шт.

3

T25682

SPLIT PIN

PIN - hair cotter

1шт.

4

F60986

PIN - drawbar swivel

1шт.

PIN - 1/4" x 1" roll (138-134)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

5

F95614

LIFT - pin

1шт.

CORD - 1/4" braided cotton sash (134")

1шт.

6

F60987

SPRING - drawbar pin

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5)

1шт.

7

F60985

BRACKET - drawbar pin lift

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5)

1шт.

8

F95612

DRAWBAR

1шт.

BOLT - 5/8" x 5" N.F. hex. (14-1080) Flexloc nut (131-580)

1шт.
