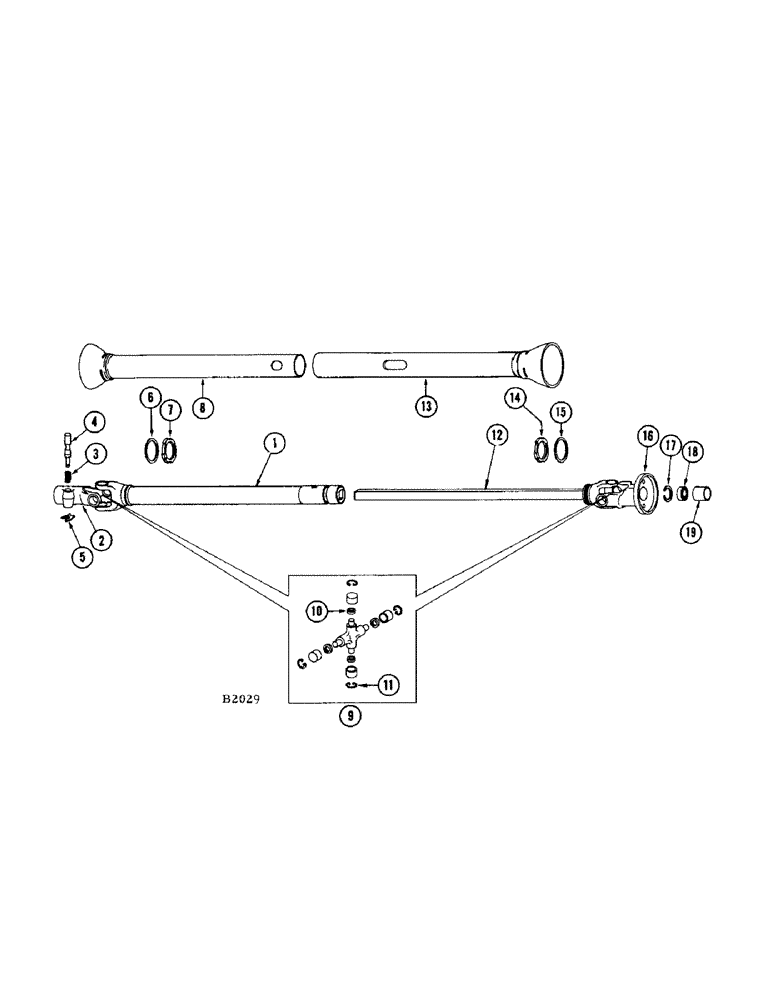

Запчасти Case IH 200 (06) - PTO SHAFT, SHORT DRAWBAR, BEFORE SERIAL NO. 8221501

F95424M

HOOKUP - PTO, complete (Machinery item)

1шт.

1

F95425

TUBE - PTO, tractor end

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str. Lincoln #5000

1шт.

2

B13272

YOKE (1-3/8" spline) Universal joint tractor end

1шт.

3

F62208

SPRING

- hitch pin

1шт.

4

N5519

PIN

- hitch

1шт.

5

N5518

WASHER

"X" WASHER

1шт.

6

F49081

WASHER - shield retaining

1шт.

7

T19565

SHIELD

BEARING - thrust

1шт.

8

F95515

SHIELD - safety, tractor end

1шт.

9

B13270

KIT

- universal joint center parts

1шт.

10

B13439

WASHER - cork

4шт.

11

B13271

RING, SNAP

SNAP RING

4шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" - 45 degree Lincoln #5200

1шт.

12

F95426

SHAFT - PTO (Machine end)

1шт.

13

F95516

SHIELD - safety, machine end

1шт.

14

T19565

SHIELD

BEARING - thrust

1шт.

15

F49081

WASHER - bearing retainer

1шт.

B13270

KIT

- universal joint center parts (See ref. 9)

1шт.

16

F95427

YOKE - universal joint, machine end

1шт.

17

N4649

RING, SNAP

SNAP RING

1шт.

18

F60695

BEARING

1шт.

19

F60692

BUSHING

(1-7/16" O.D. x 1" long)

1шт.

F95765M

HOOKUP - PTO, complete (Machinery item)

1шт.
