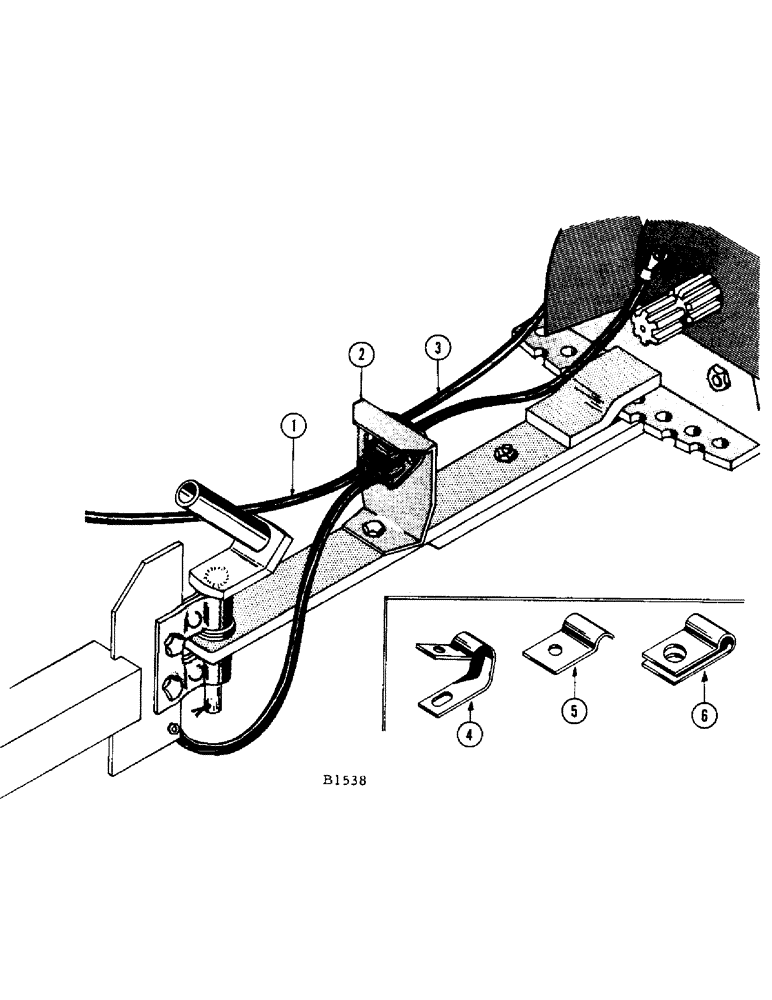

Запчасти Case IH 200 (64) - STARTING CABLE AND BRACKET
№
Артикул
Название
Примечание
Количество
1
F61006
CABLE (70-5/16" long) Starter, baler end (Before #8221501) See F61272
1шт.
N4487
PLUG - starter cable, baler end
1шт.
F61272
CABLE (83" long) Starter, baler end (#8221501 and after) See F61006
1шт.
N4487
PLUG - starter cable, baler end
1шт.
2
O4622B
BRACKET - tractor drawbar
1шт.
BOLT - 1/4" x 7/8" N.C. hex. (13-414) nut (25-104) L.W. (92-4)
3шт.
BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) nut (25-118) L.W. (92-8)
1шт.
3
N3786
CABLE (99" long) Starter, tractor end
1шт.
N4486
PLUG - starter cable, tractor end
1шт.
4
A28019
CLIP - starter cable to engine mounting platform
1шт.
5
A27128
CLIP - starter cable to baler hitch
1шт.
6
A27042
CLIP - starter cable to engine base
1шт.
B15967
KIT
DECAL KIT - for 200 baler decals
1шт.
321-8
DECAL
EAGLE decals
1шт.
321-21
DECAL
PATENTS decals
1шт.
321-362
DECAL
200 decals
2шт.
321-363
DECAL
NAME AND ADDRESS decals
1шт.
321-364
DECAL
CASE decals
2шт.
321-365
DECAL
CASE decals
1шт.
321-601
DECAL
BE CAREFUL decals
1шт.
321-602
DECAL
BE CAREFUL decals
1шт.
321-610
DECAL
BE CAREFUL decals
1шт.
321-643
DECAL
PICKUP DRIVE CHAIN decals
1шт.
B17117
DECAL KIT - for bale launcher decals
1шт.
321-8
DECAL
EAGLE decals
1шт.
321-21
DECAL
PATENTS decals
1шт.
321-274
CASE decals
1шт.
321-610
DECAL
BE CAREFUL decals
1шт.
321-668
LUBRICATE CLUTCH decals
1шт.
321-669
DECAL
WARNING decals
1шт.
321-796
BALE LAUNCHER decals
2шт.
Выбрано товаров: 31
