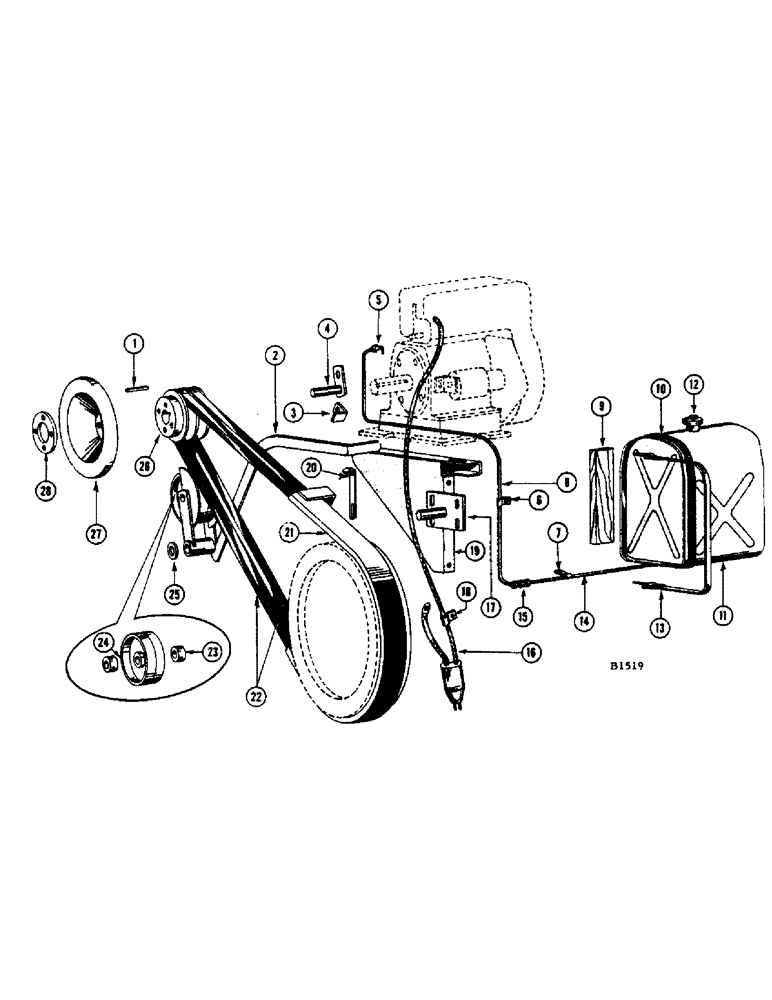

Запчасти Case IH 200 (62) - ENGINE ATTACHMENT

1

O2018AB

X

KEY - sheave to engine crankshaft

1шт.

2

F95505

LEVER - belt tightener

1шт.

3

F60862

STOP - tightener lever

1шт.

4

F95510

GUIDE - belt

2шт.

5

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" O.D. x 1/8" P.T. (Imperial #69FL)

2шт.

6

A27337

CLIP

- fuel line

1шт.

7

O3384N

CLIP - fuel line

4шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122) L.W. (192-20)

2шт.

8

F60859

LINE (38") Fuel, engine end

1шт.

9

F4912

BLOCK (Wood) Fuel tank

2шт.

10

F60857

FELT - fuel tank strap

2шт.

11

A30244

SHUT-OFF VALVE

TANK - fuel

1шт.

12

G13271

CAP

- fuel tank

1шт.

BUSHING - reducing 3/8" x 1/8" Imperial #69FL (217-41)

1шт.

13

F95508

STRAP - fuel tank mounting

2шт.

NUT - 5/16" N.C. hex. (129-102) L.W. (192-20)

4шт.

14

F60858

LINE (31") Fuel, tank end

1шт.

15

222-3

FITTING,1/2"-24 Flex Tube

UNION - 1/4" (Imperial #62FL(

1шт.

16

F60016

CABLE (70-5/16" long) Starter (Before #8221501) See F61272

1шт.

F61272

CABLE (83"long) Starter (#8221501 and after) See F60016

1шт.

17

F95504

BRACKET - pivot, for tightener lever

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123) L.W. (192-21) and fl. wshr. (195-104)

4шт.

PIN - 1/8" x 1-1/2" cotter (132-52)

1шт.

18

A26696

NO LONGER SERVICED

CLIP - starter cable

3шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123) L.W. (192-21)

3шт.

19

F95503

MOUNT - engine

2шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (114-406) nut (129-125) L.W. (192-23)

4шт.

20

F60863

STRAP - lock, tightener lever

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) L.W. (192-21)

1шт.

21

F95507

SHIELD - belt, around flywheel

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122) L.W. (192-20) and fl. wshr. (195-103)

3шт.

22

F95580

BELT - flywheel drive (Matched set of (2) F60948 belts which must be serviced in pairs)

1шт.

23

F10566

SPACER (7/8" O.D. x 21/32" long)

2шт.

24

F60848

IDLER (6" O.D.) Belt

1шт.

BOLT - 5/8" x 3-1/2" N.F. hex. (114-607) nut (129-127) L.W. (192-25)

1шт.

25

O9003BD

WASHER

(1-1/2" O.D. x 1-3/32" I.D. #16 ga.)

1шт.

26

F2551

SHEAVE (4-9/16" O.D. double) On engine crankshaft

1шт.

SCREW - 1/4" x 1/2" N.C. soc. hd. cup pt. set (83-48)

2шт.

27

F60852

WHEEL - hand crank

1шт.

SCREW - 5/16" x 1" N.C. rhd. mach. (173-230) L.W. (192-20)

4шт.

28

F61271

REINFORCEMENT - crank wheel

1шт.
