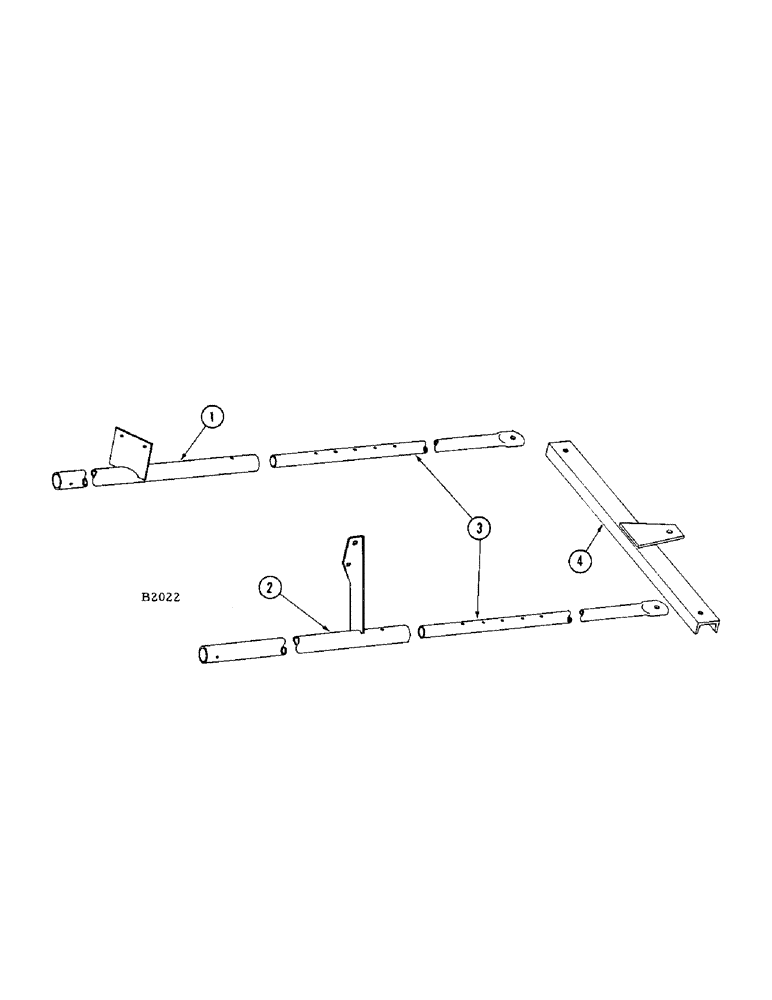

Запчасти Case IH 200 (60) - BALE LAUNCHER ATTACHMENT, DOUBLE WAGON HITCH

1

F95375

HITCH - wagon, R.H. side

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123) L.W. (192-21)

2шт.

BOLT - 1/2" x 2-3/4" N.F. hex. (114-414) nut (129-125) L.W. (192-23)

1шт.

BOLT - 5/8" x 4" N.F. hex. (114-616) nut (129-127) L.W. (192-25)

1шт.

2

F95595

HITCH - wagon, L.H. side

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103) L.W. (192-21)

2шт.

BOLT - 1/2" x 2-3/4" N.F. hex. (114-414) nut (129-125) L.W. (192-23)

1шт.

BOLT - 5/8" x 3-3/4" N.F. hex. (114-609) nut (129-127) L.W. (192-25)

1шт.

3

F60872

TONGUE

2шт.

4

F95596

DRAWBAR - wagon hitch

1шт.

BOLT - 3/4" x 1-3/4" N.F. hex. (114-701) nut (129-128) L.W. (192-27)

2шт.
