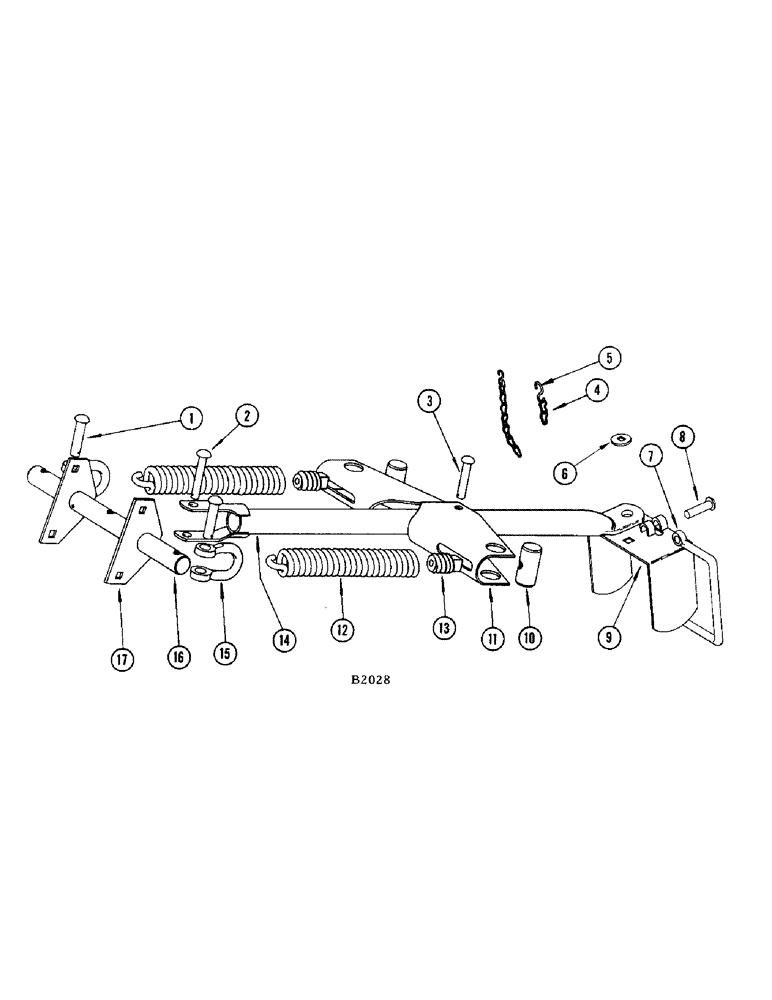

Запчасти Case IH 200 (60[A]) - WAGON FOLLOWER

1

F61202

PIN - spring to clevis (Replaced by F61244 when stocks are exhausted)

2шт.

PIN - 1/8" x 3/4" cotter (132-46)

2шт.

F61244

PIN - spring to clevis (Replaces F61202 when stocks are exhausted)

2шт.

2

O30077HT

PIN - wagon follower, Serial Range: tube-trunnion

1шт.

PIN - 3/32" x 3/4" cotter (132-26)

1шт.

3

11586K

PIN - wagon follower, Serial Range: tube-channel

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

4

F95716

CHAIN - support

1шт.

5

O58CW

"S" HOOK

2шт.

6

O63L

WASHER - square hole

1шт.

7

F61164

LATCH - safety

1шт.

WASHER - 3/8" flat (195-25)

1шт.

8

W10601S

PIN - safety latch

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

9

F95677

"U" STRAP - wagon follower

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620)

1шт.

NUT - 3/8" N.C. hex. (25-106)

2шт.

10

F61181

TRUNNION

2шт.

11

F61182

CHANNEL - spring, wagon follower

2шт.

BOLT - 3/8" x 4" N.C. hex. (113-202)

2шт.

12

F95746

SPRING

2шт.

13

94BF

PLUG - screw

1шт.

14

F95700

TUBE - wagon follower

1шт.

15

F61201

CLEVIS -, Serial Range: spring-trunnion

2шт.

16

F61179

TRUNNION - wagon follower

1шт.

PIN - 1/8" x 1-1/4" cotter (132-50)

2шт.

17

F61088

BRACKET - pivot

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (12-612) nut (25-106) L.W. (92-6)

4шт.
