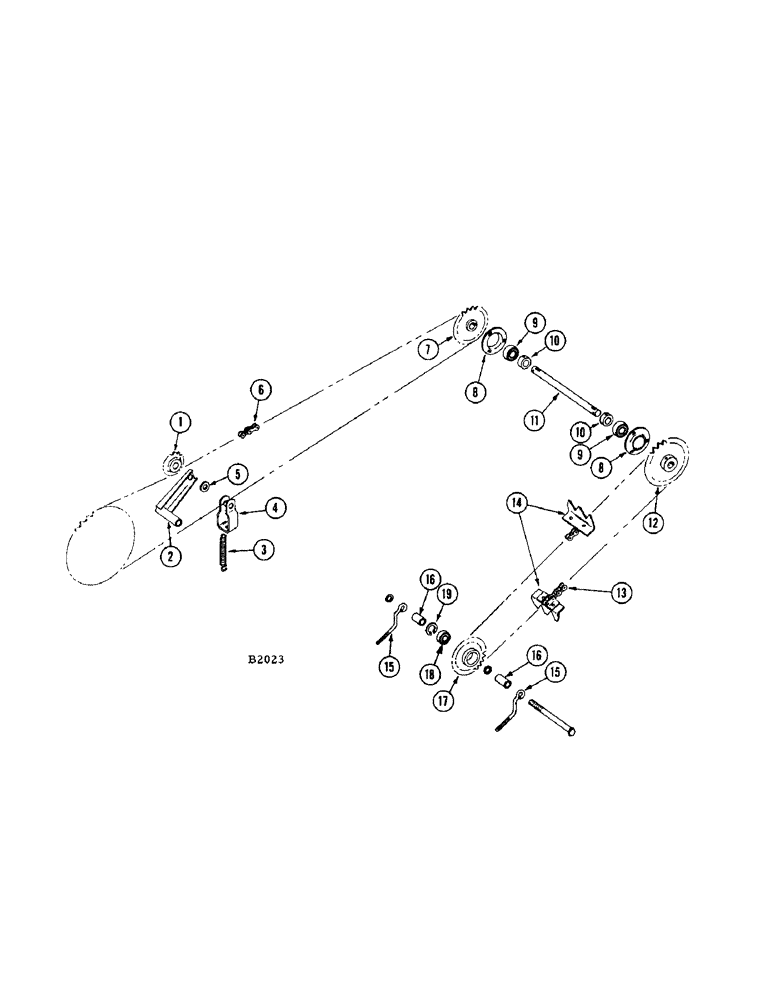

Запчасти Case IH 200 (58) - BALE LAUNCHER ATTACHMENT, DRAPER DRIVE AND CHAIN

1

F6078

SPROCKET ASSY.

IDLER

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1040) nut (25-1110) L.W. (92-10)

1шт.

WASHER - 5/8" flat (95-10)

2шт.

2

F95648

ARM - pivot, chain idler

1шт.

3

F60934

SPRING - chain idler yoke

1шт.

4

F61131

YOKE - idler

1шт.

5

F61030

SPACER - idler yoke

2шт.

6

O2625CK

CHAIN - draper drive (See chain page)

1шт.

7

F95645

SPROCKET (25T) Draper drive shaft drive

1шт.

KEY "C" Woodruff (126-29)

1шт.

PIN - 1/4" x 1-7/8" roll (138-141)

1шт.

8

O650CB

X

FLANGE - bearing

4шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106) L.W. (92-6)

6шт.

9

1443CKA

BALL BEARING

BEARING - upper draper shaft

2шт.

10

O3203CK

COLLAR - bearing

1шт.

11

F61124

SHAFT - upper, draper

1шт.

12

F95644

SPROCKET (28T) Draper chain drive

1шт.

KEY - "C" Woodruff (126-29)

1шт.

PIN - 1/4" x 1-7/8" roll (138-141)

1шт.

13

F95653

CHAIN AND FLIGHTS (Consists of 1-B12509 conn. link #60 and 18-F95696 flights)

1шт.

14

F95696

FLIGHT - draper chain (Includes attaching link and 2 roller links #60)

18шт.

B12509

DRAG LINK

LINK - connecting (#60 chain) For F95653

1шт.

B12511

LINK

- roller (#60 chain) For F95653

1шт.

15

F61127

EYEBOLT

2шт.

NUT - 3/8" N.C. hex. (25-106)

4шт.

16

F61028

SPACER - chain idler

2шт.

17

F95646

SPROCKET - idler, draper chain

1шт.

18

F7293

BEARING

- idler sprocket

1шт.

19

O935CK

SNAP RING - bearing retaining

1шт.

20

14-10104

BOLT - 5/8" x 6-1/2" N.F. hex.

1шт.

NUT - 5/8" N.F. hex. (25-1110) L.W. (92-10)

1шт.

WASHER - 5/8" flat (195-41)

6шт.
