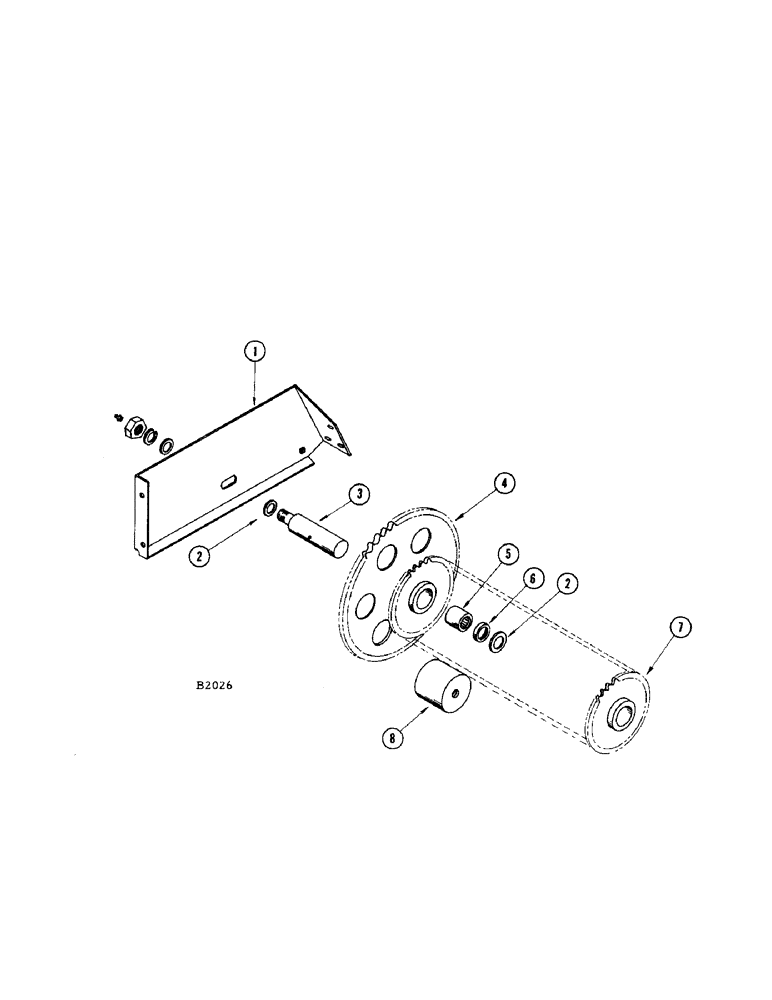

Запчасти Case IH 200 (58[A]) - DRAPER DRIVE JACKSHAFT AND SPROCKET

1

F95658

PLATE - jackshaft (Replaced by F61229 when stocks are exhausted)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

4шт.

F61229

PLATE - jackshaft (Replaces F95658 when stocks are exhausted)

4шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

4шт.

2

O468CH

WASHER - jackshaft

3шт.

3

F61128

JACKSHAFT - draper drive

1шт.

NUT - 3/4" N.F. hex. jam (25-1512) L.W. (92-12) fl. wshr. (195-45)

1шт.

FITTING - 1/4"-28 Lincoln #5010 (219-8)

1шт.

4

F95650

SPROCKET (23 and 54T) Jackshaft

1шт.

5

F51453

BEARING

2шт.

6

F51454

OIL SEAL

2шт.

7

O1676CS

X

CHAIN - jackshaft drive (See chain page)

1шт.

8

F4915

BLOCK - chain tightener

1шт.

BOLT - 3/8" x 3" rhd. sq. nk. (11-648) nut (25-106) L.W. (92-6) and fl. wshr. (195-25)

1шт.
