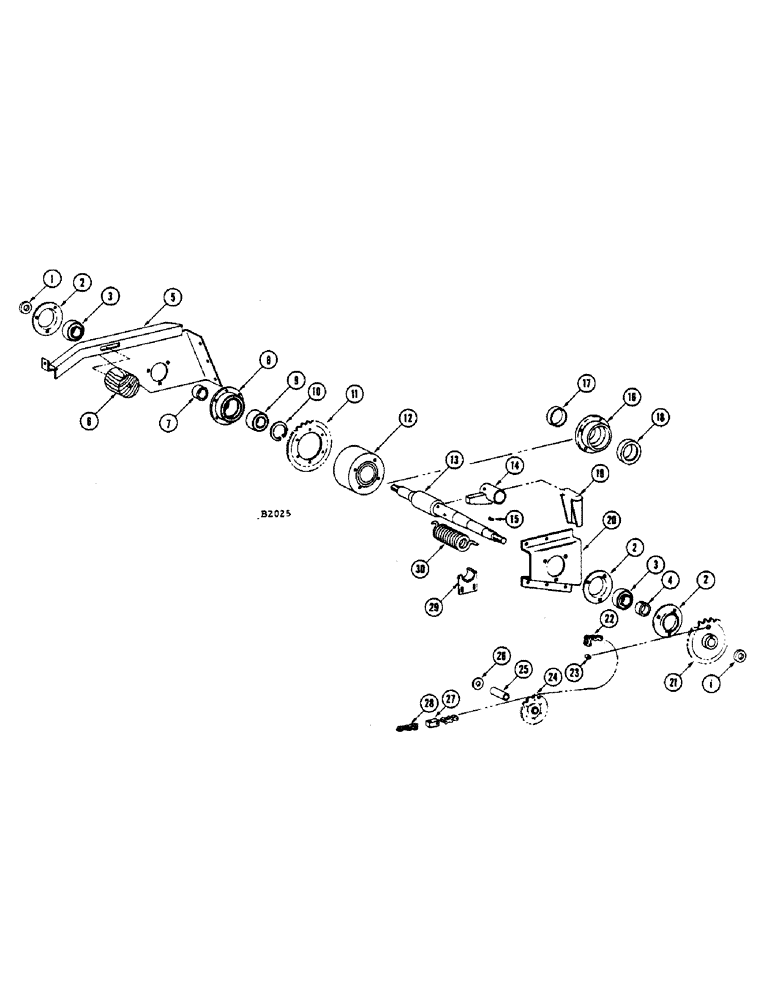

Запчасти Case IH 200 (56) - BALE LAUNCHER ATTACHMENT, MAIN DRIVE SHAFT

1

A27449

WASHER

(1-9/16" O.D. x 25/32" I.D. x 1/4") Shaft ends

2шт.

2

O650CB

X

FLANGE - bearing

4шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-116) L.W. (92-6)

6шт.

3

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - main drive shaft

2шт.

4

O697CB

X

COLLAR - bearing (Collar not used with outer end bearing)

1шт.

5

F95637

PLATE - bearing, outer (Replaced by F95739 when stocks are exhausted)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

4шт.

F95739

PLATE - bearing, outer (Replaces F95637 when stocks are exhausted)

1шт.

6

F4915

BLOCK - chain tightener

1шт.

BOLT - 3/8" x 3" rhd. sq. nk. (11-648) nut (25-106) L.W. (92-6) and fl. wshr. (95-6)

1шт.

7

F61019

SPACER - clutch bearing

1шт.

8

F2565

HOUSING - clutch bearing

1шт.

BOLT - 5/16" x 1-1/2" N.C. hex. (13-524) L.W. (92-5)

6шт.

9

O3354BF

X

BEARING

1шт.

10

F61018

SNAP RING,M73, Int

Ring, Snap, , brg 2.812", Int, #281

1шт.

11

F61123

SPROCKET (28T) Clutch

1шт.

12

F95734

HOUSING AND CLUTCH (Replaced by F95754 when stocks are exhausted)

1шт.

SCREW - 1/4"-28 x 1/2" cup pt. socket hd. set (84-48)

1шт.

F95754

HOUSING AND CLUTCH (Replaces F95734 when stocks are exhausted)

1шт.

13

F61160

SHAFT - main drive

1шт.

NUT - 3/4" N.F. hex. jam (25-1512) L.W. (92-12)

2шт.

14

F95926

BUMPER - main drive shaft

1шт.

BOLT - 5/16" x 2-1/2" N.F. hex. (14-540)

1шт.

NUT - 5/16" N.F. hex. jam (25-115)

2шт.

15

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

16

F95635

HOUSING - pilot bearing

1шт.

17

F61099

BEARING - pilot

1шт.

18

G10689

SEAL

OIL SEAL - pilot bearing housing

1шт.

BOLT - 5/16" x 7/8" N.C. hex. (13-514) L.W. (92-5)

4шт.

19

F95659

STOP - main drive shaft (Replaced by F95741 when stocks are exhausted)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

2шт.

F95741

STOP - main drive shaft (Replaces F95659 when stocks are exhausted)

1шт.

20

F61110

PLATE - bearing, inner

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

3шт.

21

F95643

SPROCKET (23T) Main drive

1шт.

22

F61042

CHAIN - clutch drive (See chain page) (2 used before #8228400) See F61233

1шт.

23

F61022

SPACER - connecting link

1шт.

24

F10427

SPROCKET ASSY.

IDLER - main drive chain

1шт.

BOLT - 5/8" x 6" N.F. hex. (14-1096) nut (25-1110) L.W. (92-10)

1шт.

25

F61171

SPACER - idler

2шт.

26

DN1516

WASHER (1-3/4" O.D. x 21/32" I.D. #12 ga.) Idler

2шт.

27

F61043

LINK - toggle, drive chain

1шт.

28

F61223

CHAIN - clutch drive (See chain page) (#8228400 and after) See F61042

1шт.

29

F95740

PILOT - torque spring (#8228400 and after)

1шт.

30

F61020

SPRING

- torsion, rewind

1шт.
