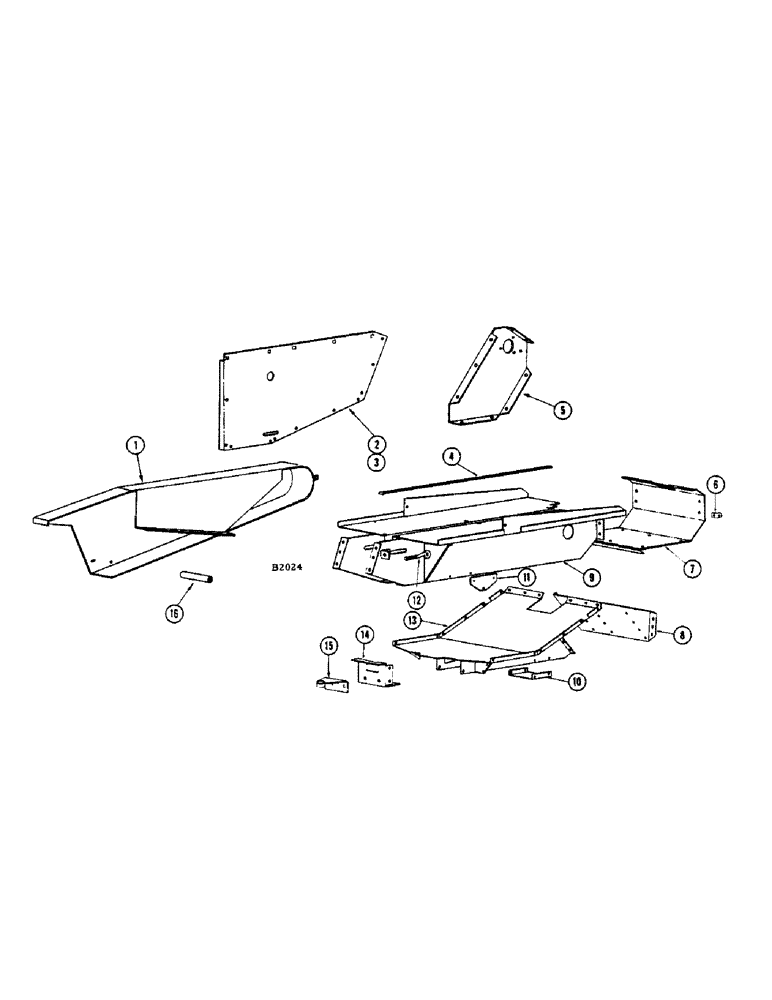

Запчасти Case IH 200 (54) - BALE LAUNCHER ATTACHMENT, LOWER FRAME AND DRAPER
№
Артикул
Название
Примечание
Количество
1
F95654
SHIELD - chain
1шт.
SCREW - 1/4" x 1/2" N.C. truss hd. (175-400) nut (129-101) L.W. (192-19)
3шт.
SCREW - 1/4" x 1/2" rhd. slotted self-tapping (187-1024)
2шт.
2
F61230
SHEET - side, R.H. (#8228400 and after) See F61155
1шт.
BOLT - 5/16" x 5/8" rhd. sq. nk. (111-228) nut (25-105) L.W. (92-5)
6шт.
SCREW - 1/4" x 1/2" N.C. truss hd. mach. (77-48) nut (25-104) L.W. (92-4)
9шт.
F61155
SHEET - side, R.H. (Before #8228400) See F61230
1шт.
3
F61231
SHEET - side, L.H. (#8228400 and after) See F61156
1шт.
BOLT - 5/16" x 5/8" rhd. sq. nk. (111-228) nut (25-105) L.W. (92-5)
7шт.
SCREW - 1/4" x 1/2" N.C. truss hd. (77-48) nut (25-104) L.W. (92-4)
9шт.
F61156
SHEET - side, L.H. (Before #8228400) See F61231
1шт.
4
F61210
STRIP - wear, draper chain
2шт.
SCREW - 5/16" x 3/4" N.C. hex. soc, cap (164-40) nut (25-105) L.W. (92-5)
6шт.
5
F61158
PLATE - bearing, upper shaft outer
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)
6шт.
BOLT - 5/16" x 5/8" rhd. sq. nk. (111-228) nut (25-105) L.W. (92-5)
3шт.
6
F61098
CLIP - wagon follower chain
2шт.
BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)
2шт.
7
F61159
PLATE - end, upper draper
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)
9шт.
SCREW - 1/4" x 1/2" N.C. truss hd. (77-48) nut (25-104) L.W. (92-4)
4шт.
8
F61212
PLATE - end, lower frame rear
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115) L.W. (92-5)
2шт.
SCREW - 1/4" x 1/2" N.C. truss hd. (77-48) nut (25-104) L.W. (92-4)
5шт.
9
F95667
FRAME - draper
1шт.
SCREW - 1/4" x 1/2" N.C. truss hd. (77-48) nut (25-104) L.W. (92-4)
2шт.
SCREW - 1/4" x 5/8" N.C. truss hd. (77-410) nut (25-104) L.W. (92-4)
2шт.
BOLT - 5/16" x 5/8" rhd. sq. nk. (111-228) nut (25-105) L.W. (92-5)
2шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115) L.W. (92-5)
6шт.
10
F61007
GUSSET - lower frame
1шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116) L.W. (92-6)
2шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)
2шт.
WASHER - 1/2" flat (95-6)
2шт.
11
F61088
BRACKET - pivot, wagon follower
2шт.
12
F61127
EYEBOLT - draper chain tightener
2шт.
NUT - 3/8" N.C. hex. (25-106)
4шт.
13
F95666
FRAME - lower and floor
1шт.
14
F60997
PLATE - end, lower frame front
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)
4шт.
BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)
2шт.
15
F95743
PIVOT - lower
1шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116) L.W. (92-6) and fl. wshr. (95-6)
2шт.
16
VT3930
SPACER - chain shield
1шт.
BOLT - 5/16" x 4" rhd. sq. nk. (11-532) nut (25-105) L.W. (92-5) and fl. wshr. (95-5)
1шт.
Выбрано товаров: 44
