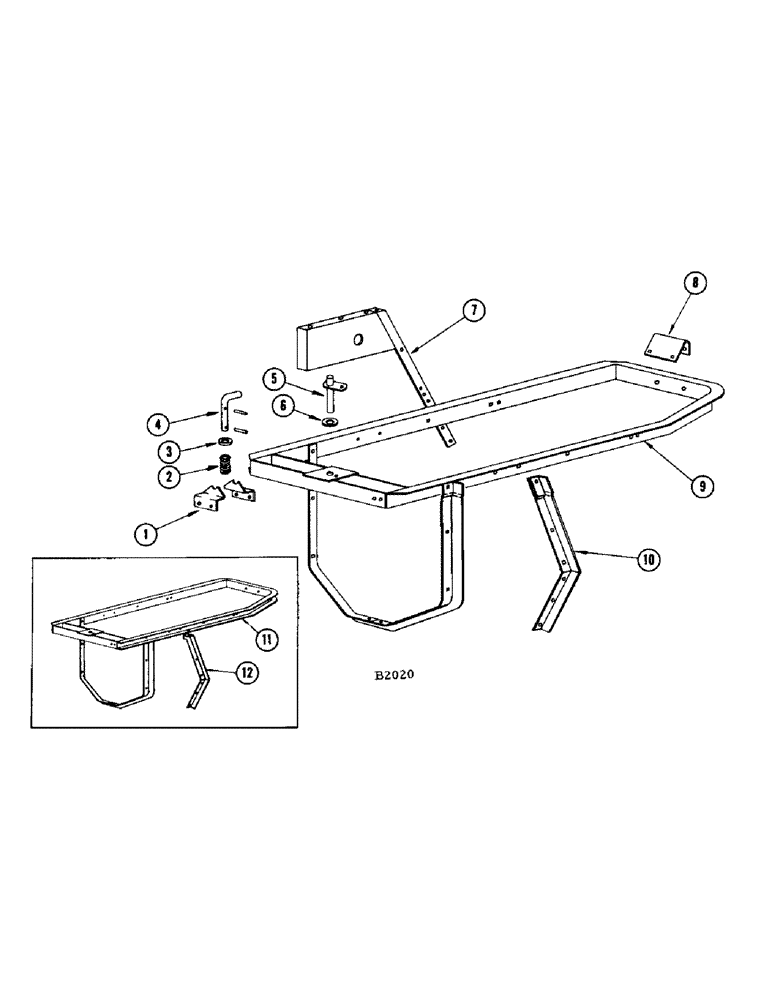

Запчасти Case IH 200 (52) - BALE LAUNCHER ATTACHMENT, UPPER FRAME

1

F61161

PLATE - latch pin, upper cross channel

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115) L.W. (92-5)

4шт.

2

T27892

SPRING - latch pin

1шт.

3

195-33

WASHER,1/2"

- flat 1/2"

1шт.

4

F61162

PIN - latch, pivot

1шт.

PIN - 1/8" x 1-1/4" roll (138-63)

2шт.

5

F95623

PIN - pivot, upper

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

1шт.

6

O173B

WASHER - pivot pin

1шт.

7

F95738

ANGLE - frame, R.H. rear (#8228400 and after) See F95636

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

7шт.

F95636

ANGLE - frame, R.H. rear (Before #8228400) See F95738

1шт.

8

F61017

BRACKET - mounting, draper rear

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105) L.W. (92-5)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

2шт.

9

F95737

FRAME - upper (#8228400 and after) See ref. 11

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115) L.W. (92-5) and fl. wshr. (95-5)

4шт.

10

F61221

ANGLE - frame, L.H. rear (#8228400 and after) See ref. 12

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6) and fl. wshr. (95-6)

4шт.

11

F95662

FRAME - upper (Before #8228400) See ref. 9

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

2шт.

BOLT - 5/16" x 3/4" x 3/4" N.F. hex. (14-512) nut (25-115) L.W. (92-5) and fl. wshr. (95-5)

4шт.

12

F61208

ANGLE - frame, L.H. rear (Before #8228400) See ref. 10

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6) and fl. wshr. (95-6)

4шт.
