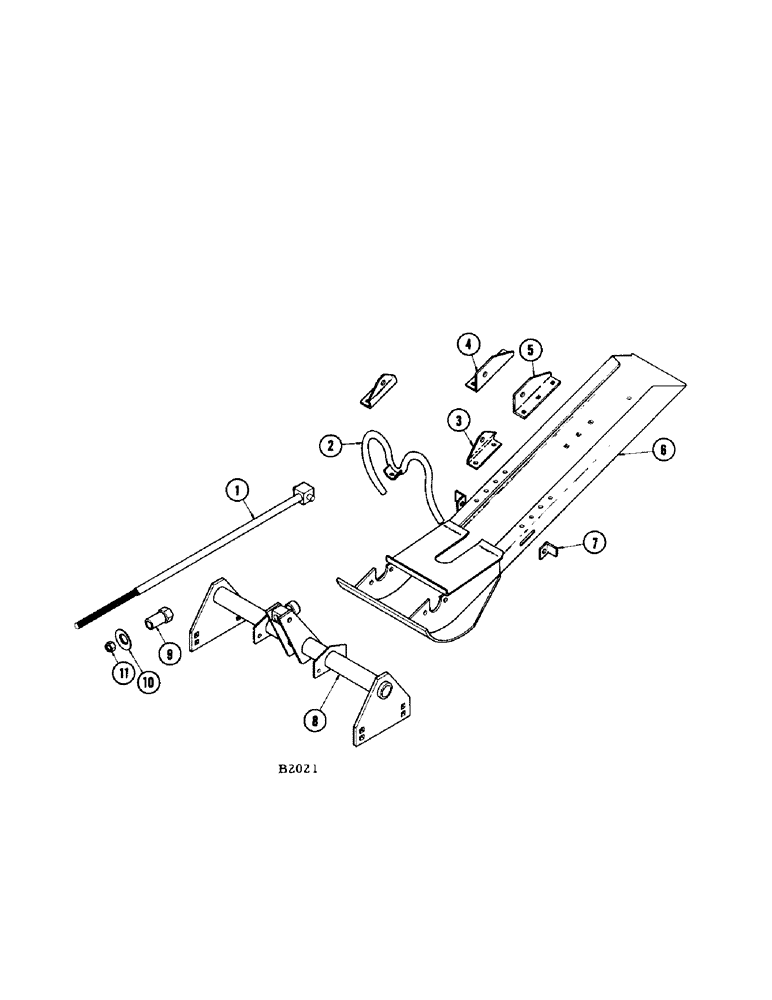

Запчасти Case IH 200 (52[A]) - COMPRESSION SHOE

1

F95925

ROD - compression

1шт.

NUT - 5/8" N.F. hex. (129-127)

1шт.

2

F95630

FORK

- trip

1шт.

3

F61076

BRACKET - trip fork

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122) L.W. (192-20) and fl. wshr. (195-521)

4шт.

4

F65236

BRACKET - trunnion support, R.H.

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-108) nut (129-101) L.W. (192-19)

3шт.

5

F65235

BRACKET - trunnion support, L.H.

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-108) nut (129-101) L.W. (192-19)

3шт.

6

F96067

SHOE - compression

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122) L.W. (192-20)

4шт.

PIN - 3/16" x 2-1/2" cotter (132-102)

2шт.

7

F61174

STOP - trip fork

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122) L.W. (192-20) and fl. wshr. (195-521)

2шт.

8

F95824

PIPE - pivot (#8228400 and after) See F95652

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) nut (129-103) L.W. (192-21)

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103) L.W. (192-21)

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-319) nut (129-103) L.W. (192-21)

1шт.

F95652

PIPE - pivot (Before #8228400) See F95824

1шт.

9

F61276

NUT - spring

1шт.

10

F61279

DISC - spring

8шт.

11

131-817

NUT - 5/8" N.F. hex. self-locking

1шт.
