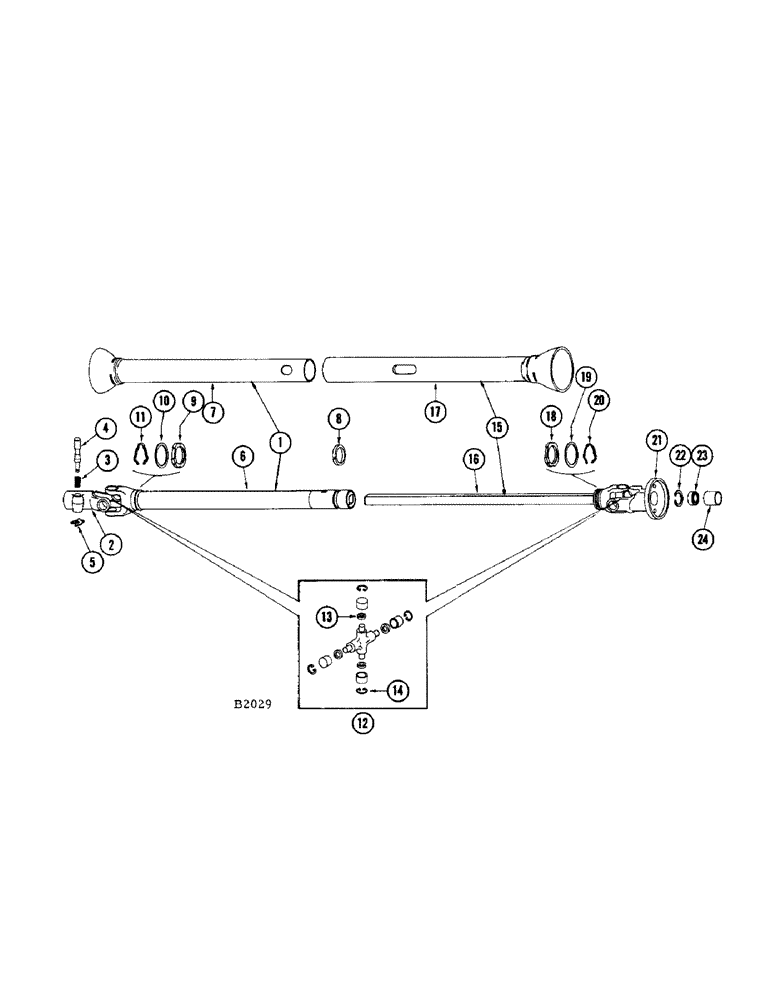

Запчасти Case IH 200 (06[A]) - PTO SHAFT, SHORT DRAWBAR, SERIAL NO. 8221501 AND AFTER

1

F95616

TUBE - PTO, tractor end

1шт.

2

B13272

YOKE (1-3/8" spline) Universal joint tractor end

1шт.

3

F62208

SPRING

- hitch pin

1шт.

4

N5519

PIN

- hitch

1шт.

5

N5518

WASHER

"X" WASHER

1шт.

6

F95617

YOKE AND SLEEVE TUBE

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str. Lincoln #5000

1шт.

7

F95618

SHIELD - safety, tractor end

1шт.

8

F60928

CENTER JOINT

BEARING - shield support

1шт.

9

T19565

SHIELD

BEARING - nylon

1шт.

10

F60927

WASHER

- thrust

1шт.

11

F60925

RING, SNAP

SNAP RING - bearing retaining

1шт.

12

B13270

KIT

- universal joint center parts

1шт.

13

B13439

WASHER - cork

4шт.

14

B13271

RING, SNAP

SNAP RING

4шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" - 45 degree Lincoln #5200

1шт.

15

F95554M

SHAFT - PTO, machine end

1шт.

16

F95563

YOKE - universal joint, with shaft

1шт.

17

F95562

SHIELD - safety, machine end

1шт.

18

T19565

SHIELD

BEARING - nylon

1шт.

19

F60927

WASHER

- thrust

1шт.

20

F60925

RING, SNAP

SNAP RING - bearing retaining

1шт.

B13270

KIT

- universal joint center parts (See ref. 12)

1шт.

21

F95427

YOKE - universal joint, machine end

1шт.

22

N4649

RING, SNAP

SNAP RING - retaining

1шт.

23

F60695

BEARING

1шт.

24

F60692

BUSHING

(1-7/16" O.D. x 1" long)

1шт.
