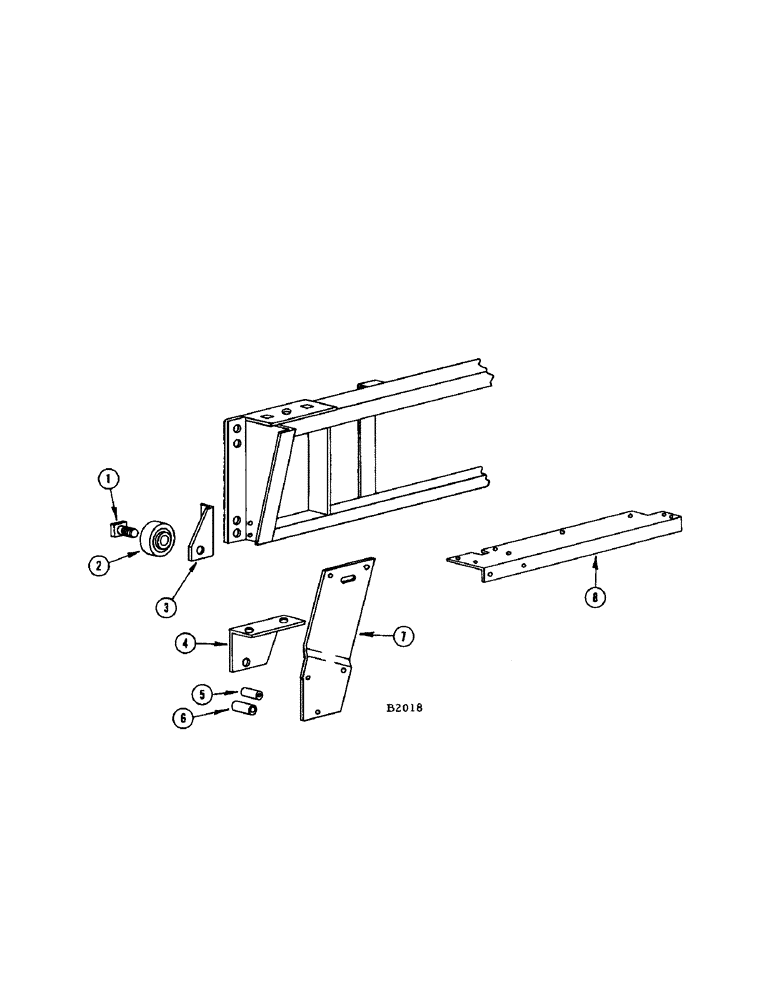

Запчасти Case IH 200 (50) - BALE LAUNCHER ATTACHMENT, CLUTCH ROLLER

1

F60617

BOLT - plunger roller

1шт.

NUT - 5/8" N.C. hex. (129-107) L.W. (192-25)

1шт.

2

F60616

BEARING

ROLLER - plunger

1шт.

3

F61048

BRACKET - front, plunger roller

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123) L.W. (192-21)

2шт.

4

F61142

BRACKET - outer, clutch roller

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123) L.W. (192-21)

4шт.

5

F61243

SPACER - clutch roller pivot

1шт.

BOLT - 3/8" x 3" N.F. hex. (114-228) nut (129-123) L.W. (192-21)

1шт.

6

F61242

ROLLER - clutch

1шт.

7

F61143

BRACKET - inner, clutch roller

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) nut (129-123) L.W. (192-21)

4шт.

8

F61141

ANGLE - reinforcement, plunger

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123) L.W. (192-21)

4шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122) L.W. (192-20) and fl. wshr. (195-521)

2шт.
