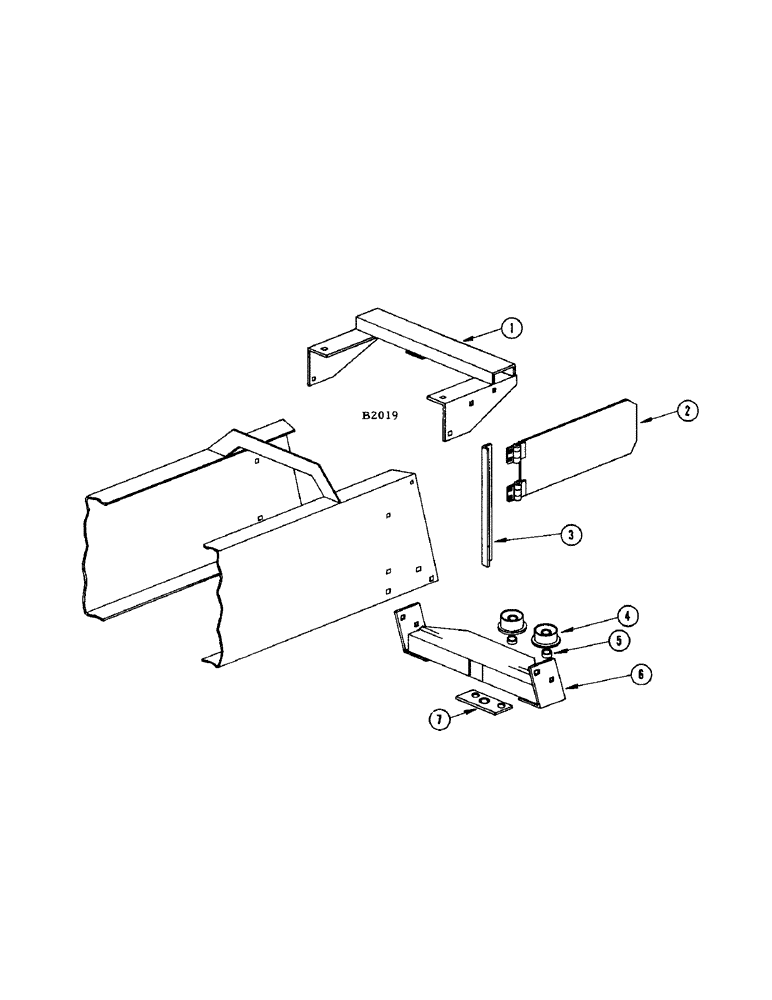

Запчасти Case IH 200 (50[A]) - CROSS CHANNEL AND LOWER PIVOT FRAME

1

F95664

CHANNEL - cross

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) nut (129-103) L.W. (192-21)

6шт.

2

F95649

SHEET - guide, bale

2шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101) L.W. (192-19)

8шт.

3

F61031

ANGLE - pivot, guide sheet

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103) L.W. (192-21)

2шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) nut (129-103) L.W. (192-21)

2шт.

4

F61041

IDLER - flat

2шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032)

2шт.

NUT - 5/8" N.F. hex. (131-6)

2шт.

5

VB1180

SPACER - idler

2шт.

6

F95665

FRAME - lower pivot

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) nut (129-123) L.W. (192-21)

4шт.

7

F95679

BRACKET - pivot, lower

1шт.
