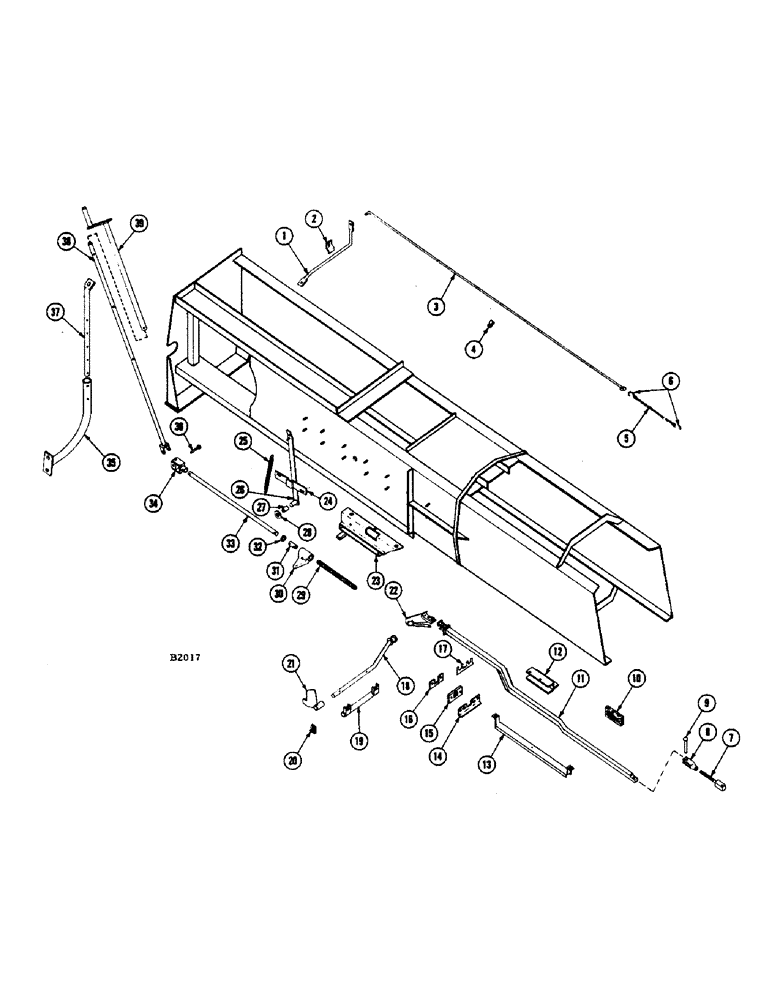

Запчасти Case IH 200 (48) - BALE LAUNCHER ATTACHMENT, THROW CONTROL, DRIVE AND TRIP ROD (CONTD)

29

F61254

SCREW - clutch release adj. (#8249001 and after) See F61071

1шт.

PIN - 3/16" x 1-1/4" roll (138-98)

1шт.

F61071

SCREW - clutch release adj. (Before 8249001) When stocks are exhausted order F95857

1шт.

F95857

KIT - adjusting screw repair (Consists of ref. 29, 31, 32 and 33) Replaces F61071 when stocks are exhausted

1шт.

30

F2575

PIN - clutch release (#8249001 and after) See F95629

1шт.

F95629

NUT - adj. screw, clutch release (Before #8249001) See F2575

1шт.

31

F61255

COUPLING - crank rod (#8249001 and after) See F61095

1шт.

F61095

COUPLING - crank rod (Before #8249001) See F61255

1шт.

32

O479B

WASHER (1-1/4" O.D. x 25/32" I.D. #16 ga.) Adj. screw coupling

1шт.

33

F61257

ROD - coupling, hand crank (#8249001 and after) See F61096

1шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (114-6) Flexloc nut (131-526)

1шт.

F61096

ROD - coupling, hand crank (Before #8249001) See F61257

1шт.

34

F79307

UNIVERSAL - hand crank

1шт.

35

F95660

STANDARD - adjusting lever support, lower

1шт.

BOLT - 1/2" x 2" N.F. hex. (114-410) nut (129-125) L.W. (192-23)

2шт.

36

O1803BF

PIN - crank rod

1шт.

PIN - 5/32" x 5/8" cotter (132-35)

1шт.

37

F61086

STANDARD - adjusting lever support, upper

1шт.

BOLT - 5/16" x 2" N.F. hex. (114-122) nut (129-122) L.W. (192-20)

2шт.

38

F95634

ROD - crank

1шт.

39

F95715

CRANK - hand, throw control

1шт.

PIN - 1/8" x 1-1/4" cotter (132-50)

1шт.
