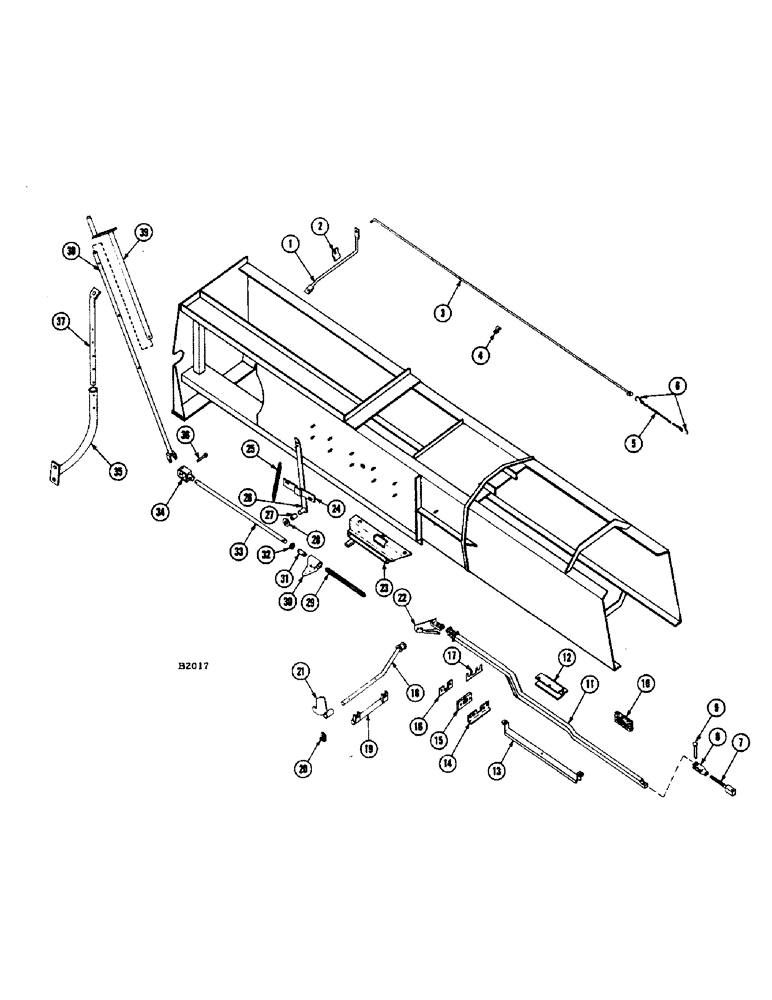

Запчасти Case IH 200 (46) - BALE LAUNCHER ATTACHMENT, THROW CONTROL, DRIVE AND TRIP ROD

1

F61145

ROD - pivot, upper

1шт.

PIN - 1/8" x 3/4" roll (138-57)

2шт.

2

F65210

PIN

CLIP - upper pivot rod

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122) L.W. (192-20)

2шт.

3

F61061

ROD - pull, trip mechanism

1шт.

PIN - 1/16" x 5/8" cotter (132-6)

1шт.

4

F9263

CLIP - pull rod

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121) L.W. (192-19) and fl. wshr. (195-518)

1шт.

5

F95919

CHAIN - trip

1шт.

6

O58CW

HOOK - trip chain

2шт.

7

F95745

ROD - adjusting, drive member (#8228400 and after) See F95724

1шт.

NUT - 1/2" N.F. hex. jam (25-158)

1шт.

F95724

ROD - adjusting, drive member (Before #8228400 - replaced by F95745 when stocks are exhausted)

1шт.

NUT - 1/2" N.F. hex. jam (25-158)

1шт.

8

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - 1/2"

1шт.

9

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

10

F4916

BLOCK - wear, drive member

1шт.

BOLT - 1/4" x 2-1/2" rhd. sq. nk. (111-121) nut (129-10) L.W. (192-19)

2шт.

11

F95761

DRIVE MEMBER (#8249001 and after) See F95655

1шт.

F95655

DRIVE MEMBER (Before #8249001) Replaced by F95761 when stocks are exhausted

1шт.

12

F95626

BRACKET - guide, rear

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105) L.W. (92-5)

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5)

1шт.

13

F61256

BRACKET - guide, front (#8249001 and after) See F61144

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105) L.W. (92-5)

2шт.

F61144

BRACKET - guide, front (Before #8249001) See F61256

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105) L.W. (92-5)

2шт.

14

F65206

BRACKET - retainer, drive member

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123) L.W. (192-21)

2шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (114-203) locknut (131-166)

2шт.

WASHER - 3/8" flat (195-521)

4шт.

15

F61238

BUMPER (Rubber)

1шт.

16

F65207

PIN

PAD - main drive

1шт.

17

F62218

SHIM - retainer bracket

1шт.

18

F95923

BELLCRANK - lower

1шт.

PIN - 1/8" x 1-1/4" roll (138-66)

1шт.

PIN - 1/4" x 1" roll (138-134)

1шт.

WASHER - 5/8" flat (195-541)

1шт.

19

F95914

PIVOT - bellcrank

1шт.

FITTING - 1/4" N.F. x 45 degree Lincoln #5242 (219-400)

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122) L.W. (192-20)

2шт.

20

F65223

STOP - cam

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) L.W. (92-6)

1шт.

21

F95921

CAM - trip rod

1шт.

22

F95920

DOG - clutch

1шт.

BOLT - 3/8" x 1-3/8" N.F. hex. (14-622) nut (25-116)

1шт.

23

F95786

GUIDE - clutch release (#8249001 and after) See F95657

1шт.

F95657

GUIDE - clutch release (Before 8249001 - replaced by F95749 when stocks are exhausted)

1шт.

F95749

GUIDE - clutch release (Before 8249001 - replaces F95657 when stocks are exhausted)

1шт.

24

F65228

BRACKET - guide, trip rod

1шт.

25

F65214

PIN

SPRING - trip rod

1шт.

26

F95922

ROD - trip

1шт.

WASHER - 1/4" flat (195-518)

1шт.

PIN - 3/32" x 5/8" cotter (132-25)

1шт.

27

F65233

ROLLER - trip rod

1шт.

28

O2073B

X

WASHER (7/8" O.D. x 17/32" I.D. #16 ga.) Trip rod stud

1шт.
