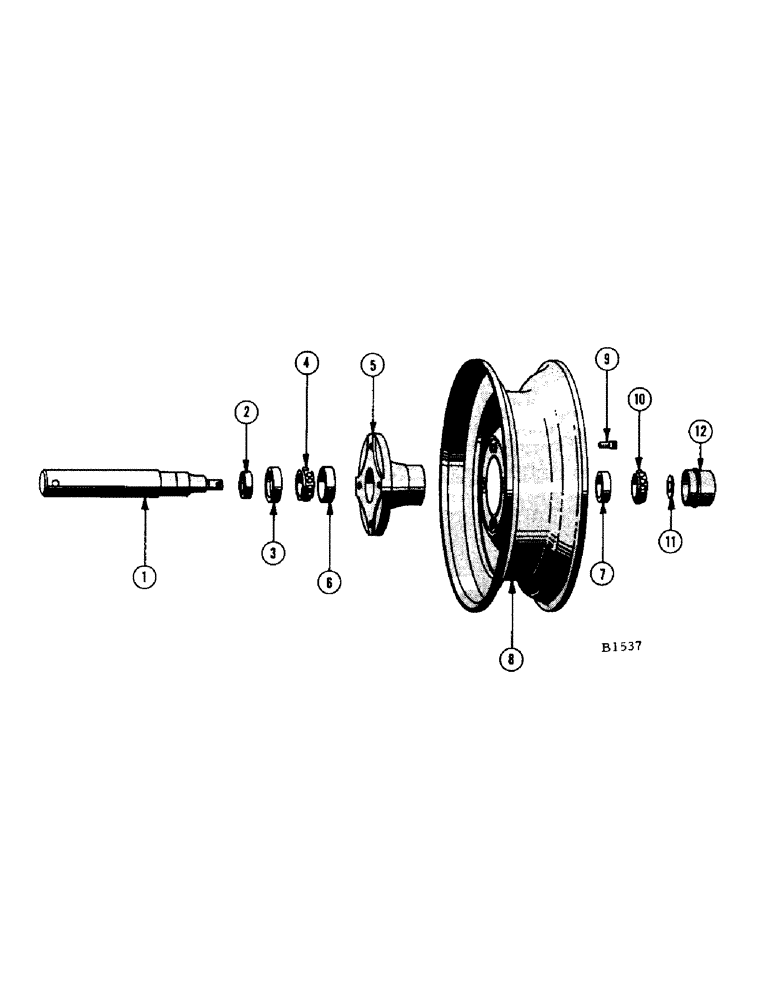

Запчасти Case IH 200 (44) - WHEELS AND SPINDLES, BEFORE SERIAL NO. 8223051

1

F60674

SPINDLE - wheel (Replaced by F60969 when stocks are exhausted)

2шт.

BOLT - 1/2" x 2-1/2" N.F. hex. (14-840) nut (25-118) L.W. (92-8)

2шт.

NUT - 5/8" N.F. hex. slotted (25-1310)

2шт.

PIN - 5/32" x 1" cotter (132-69)

2шт.

F60969

SPINDLE - wheel (Replaces F60674 when stocks are exhausted)

2шт.

2

F60673

COLLAR - wheel spindle

2шт.

3

FD3792

OIL SEAL

- wheel hub

2шт.

4

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - inner

2шт.

5

F95416

HUB

2шт.

6

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - inner

1шт.

7

B12410

BEARING, CUP,1.782" OD

CUP - outer

1шт.

8

F60676

WHEEL - R.H. (For 5:00 X 15 4 ply implement tire)

1шт.

F60951

WHEEL

- L.H. (For 6:40 X 15 4 ply implement tire)

1шт.

9

A30064

BOLT

- wheel

8шт.

10

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer

2шт.

11

O2736AB

WASHER (1-3/8" O.D. x 21/32" I.D. #12 ga.)

2шт.

12

MT2560S

CAP

- hub

2шт.
