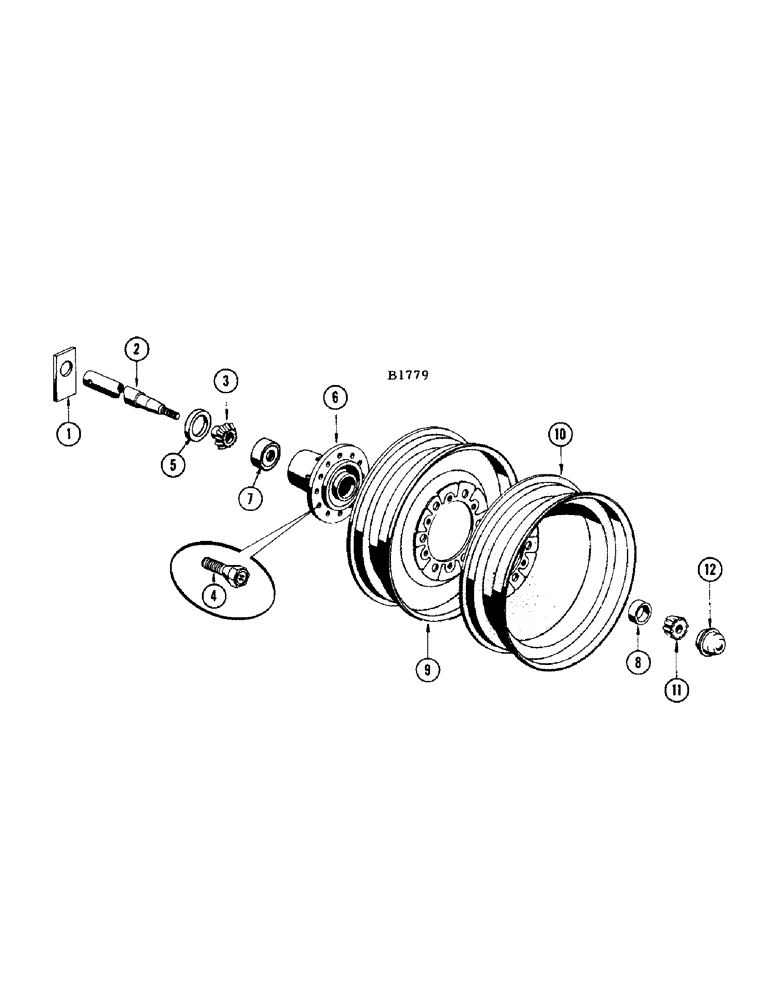

Запчасти Case IH 200 (44[A]) - DUAL WHEEL ATTACHMENT

1

F60938

BLOCK - axle, R.H. dual wheel

1шт.

F60937

BLOCK - axle, L.H. dual wheel (See note)

1шт.

2

F60939

SPINDLE

- wheel

2шт.

BOLT - 1/2" x 3-1/4" N.C. sq. hd. (117-400)

2шт.

NUT - 3/4" N.F. hex. slotted (129-228)

2шт.

PIN - 3/16" x 1-1/4" cotter (132-93)

2шт.

3

T12256

TAPERED BEARING,1.375" ID x 2.717" OD x 1.0623"

CONE - inner

2шт.

4

A29912

BOLT

BOLT - wheel

24шт.

5

MTA2043S

OIL SEAL

- wheel hub

2шт.

6

F95703

HUB - wheel

2шт.

7

A29977

BEARING CUP

CUP - inner

1шт.

8

A30318

BEARING, CUP

CUP - outer

1шт.

9

F60975

WHEEL - inside

2шт.

10

F60936

WHEEL - offset, outside

2шт.

11

A30611

ROLLER BEARING

CONE - outer

2шт.

12

W9649S

CAP

- hub

2шт.
