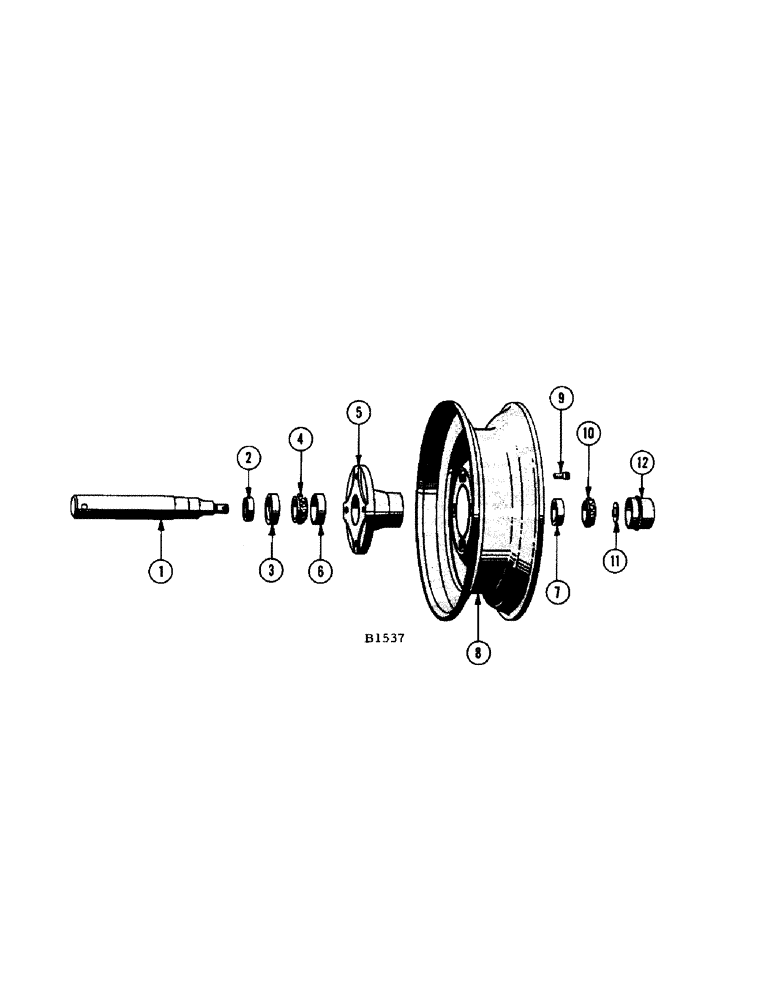

Запчасти Case IH 200 (42) - R.H. WHEEL AND SPINDLE, SERIAL NO. 8223051 AND AFTER

1

F60969

SPINDLE - wheel, R.H.

1шт.

BOLT - 1/2" x 2-1/2" N.C. hex. (14-840) nut (25-118) L.W. (92-8)

1шт.

NUT - 5/8" N.F. slotted hex. (25-1310)

1шт.

PIN - 5/32" x 1" cotter (132-69)

1шт.

2

F60673

COLLAR - wheel spindle

1шт.

3

FD3792

OIL SEAL

- wheel hub

1шт.

4

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - inner

1шт.

5

F95416

HUB

- wheel

1шт.

6

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - inner

1шт.

7

B12410

BEARING, CUP,1.782" OD

CUP - outer

1шт.

8

F60676

WHEEL (For 5:00 X 15 2 ply implement tire)

1шт.

9

A30064

BOLT

- wheel

4шт.

10

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer

1шт.

11

O2736AB

WASHER (1-3/8" O.D. x 21/32" I.D. #12 ga.)

1шт.

12

MT2560S

CAP

- hub

1шт.
