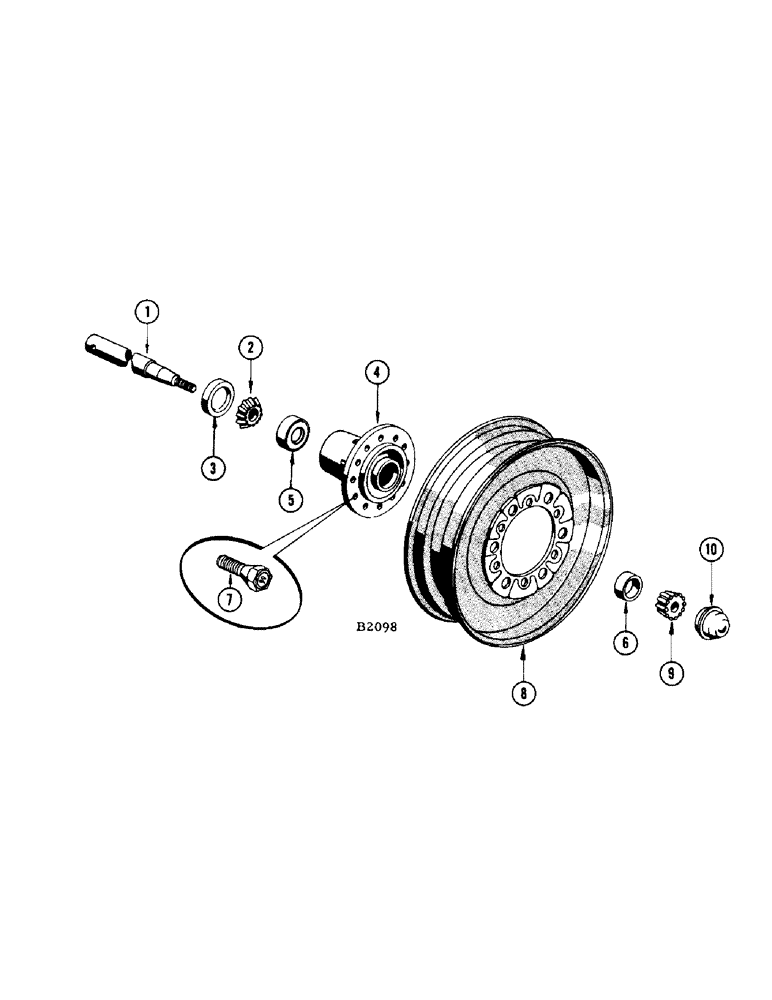

Запчасти Case IH 200 (42[A]) - L.H. WHEEL AND SPINDLE SERIAL NO. 8223051 AND AFTER

1

F60939

SPINDLE

- wheel, L.H.

1шт.

BOLT - 1/2" x 2-3/4" N.F. hex. (14-844) nut (25-118) L.W. (92-8)

1шт.

NUT - 3/4" N.F. hex. slotted (129-228)

1шт.

PIN - 3/16" x 1-1/4" cotter (132-93)

1шт.

2

T12256

TAPERED BEARING,1.375" ID x 2.717" OD x 1.0623"

CONE - inner

1шт.

3

MTA2043S

OIL SEAL

1шт.

4

F95703

HUB - wheel, L.H.

1шт.

5

A29977

BEARING CUP

CUP - inner

1шт.

6

A30318

BEARING, CUP

CUP - outer

1шт.

7

A29912

BOLT

BOLT - wheel

6шт.

8

F60975

WHEEL - L.H. (For 6:40 X 15 6 ply implement tire)

1шт.

9

A30611

ROLLER BEARING

CONE - outer

1шт.

10

W9649S

CAP

- hub

1шт.
