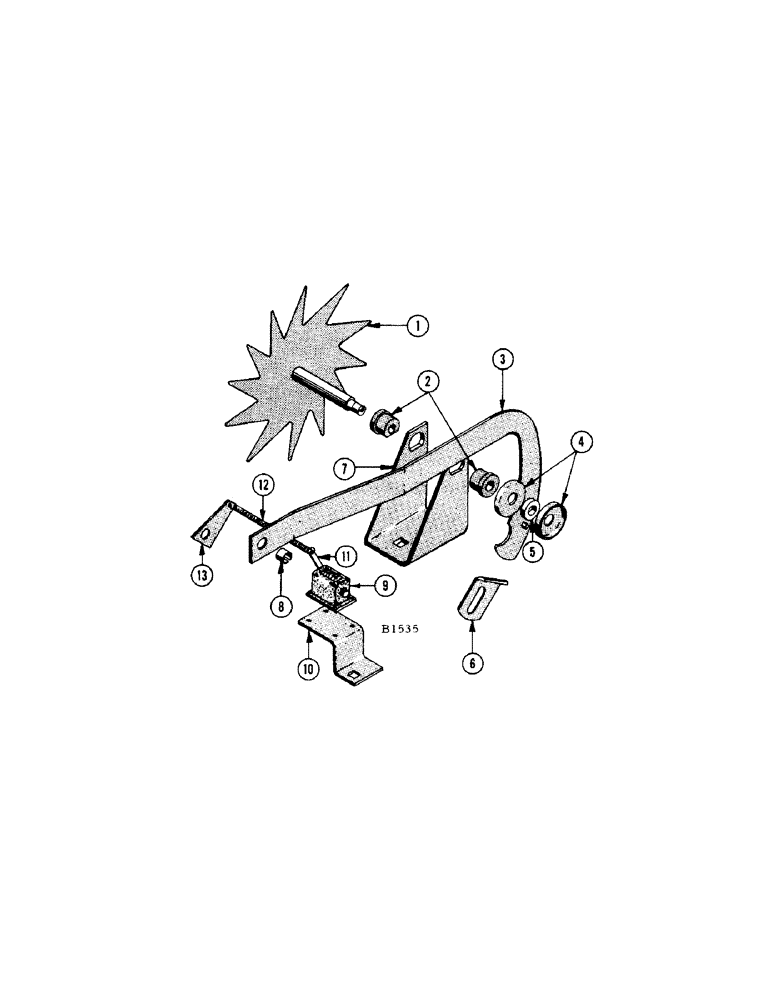

Запчасти Case IH 200 (40) - STAR WHEEL AND TRIP ARM

1

F95385

WHEEL - star

1шт.

NUT - 1/2" N.F. hex. jam (25-158) L.W. (92-8)

1шт.

2

F60585

BUSHING

(1-1/4" O.D. x 1" long) Flange

2шт.

WASHER - 5/8" flat (95-10)

1шт.

3

F95532

ARM

- bale measure

1шт.

4

B18271

WASHER - cup

2шт.

5

F60586

WHEEL (STEERING)

WHEEL - friction

1шт.

6

F60587

STOP - adjustable

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106) L.W. (92-6) and fl. wshr. (95-6)

1шт.

7

F60584

BRACKET - star wheel

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106) L.W. (92-6)

2шт.

8

F60880

SPACER (41/64" O.D. x 5/16" long) Arm

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) nut (25-106) L.W. (92-6) and fl. wshr. (95-6)

1шт.

9

F95469M

COUNTER - bale (Machinery item) bale counter attachment

1шт.

10

F60809

BRACKET

- bale counter bale counter attachment

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5) bale counter attachment

1шт.

11

O3424N

LEVER - bale counter attachment

1шт.

12

F60456

SPRING

- bale counter attachment

1шт.

13

F60801

ANCHOR - spring bale counter attachment

1шт.
