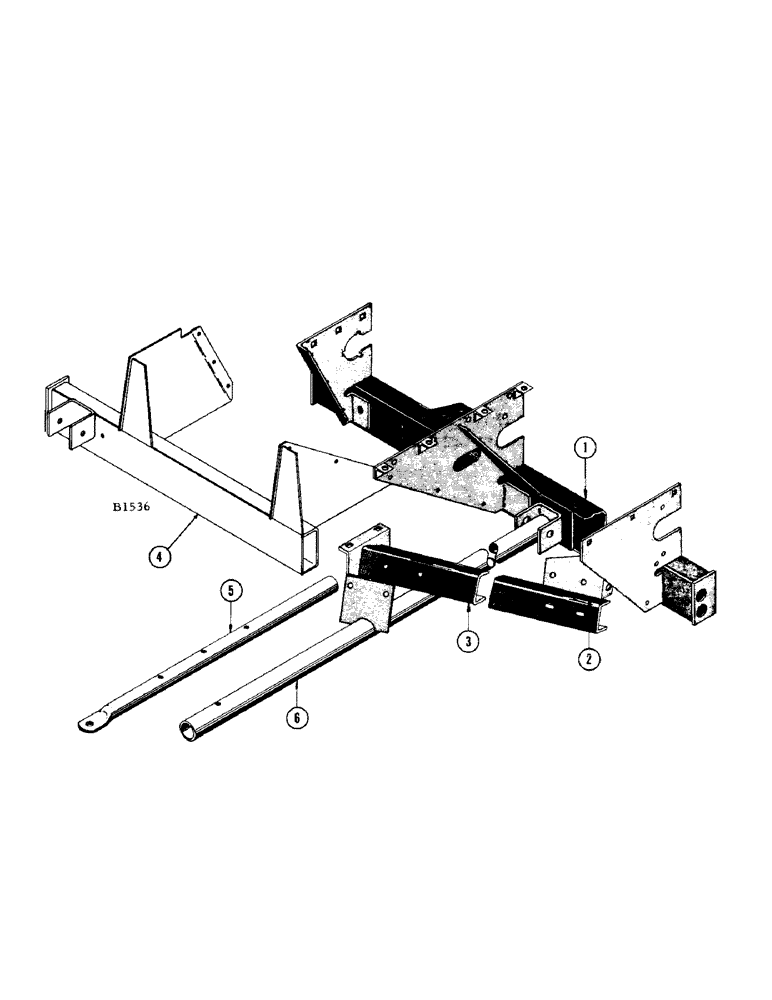

Запчасти Case IH 200 (40[A]) - AXLE

1

F95702

AXLE (#8223051 and after) See F95411

1шт.

BOLT - 1/2" x 1-1/2" N.C. hex. full thrd. (113-407) jam nut (25-148)

1шт.

BOLT - 1/2" x 3" N.C. hex. full thrd. (115-405) jam nut (25-148)

1шт.

NUT - 1/2" N.C. hex. heavy (25-168)

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) L.W. (92-6)

3шт.

F95411

AXLE (Before #8223051) See F95702

1шт.

2

F60679

BRACKET - lower, axle brace

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) L.W. (92-6)

4шт.

WASHER - 3/8" flat (95-6)

2шт.

3

F95413

BRACE - axle

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106) L.W. (92-6)

2шт.

4

F95593

AXLE - stub, for machines equipped with bale launcher

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123) L.W. (192-21)

8шт.

5

F60872

TONGUE - wagon hitch

1шт.

BOLT - 1/2" x 3" N.F. hex. (14-848) nut (25-118) L.W. (92-8)

1шт.

6

F95375

PIPE - wagon hitch

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) L.W. (92-6)

2шт.

BOLT - 5/8" x 4" N.F. hex. (14-1064) nut (25-1110) L.W. (92-10)

1шт.
