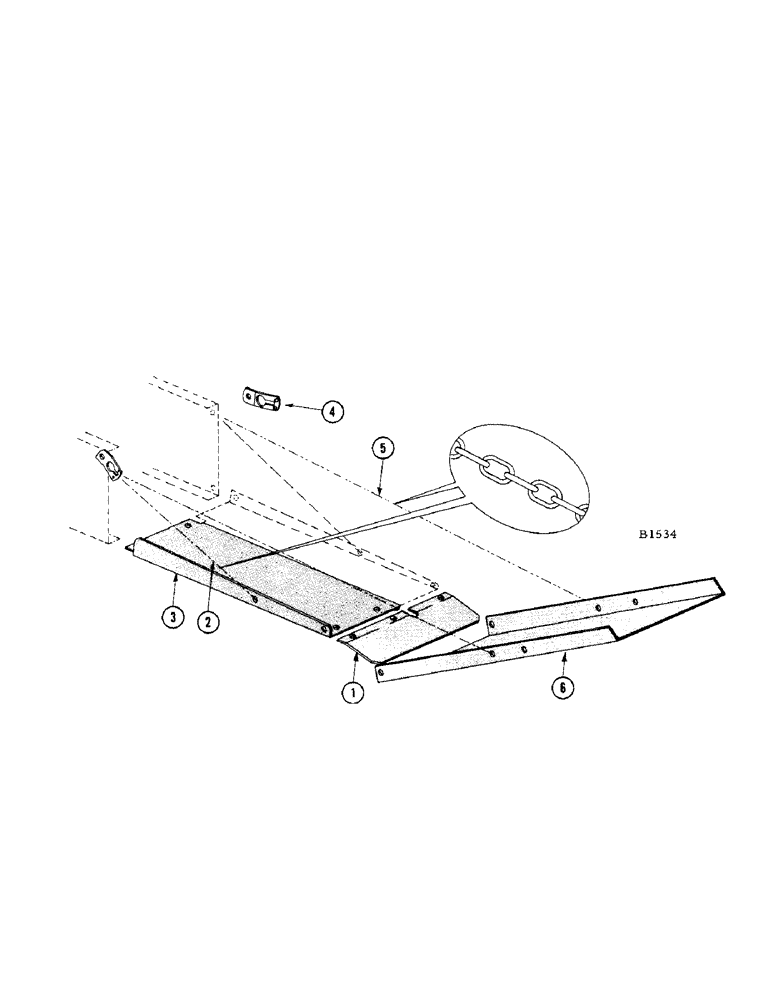

Запчасти Case IH 200 (38[A]) - BALE CHUTE ATTACHMENT

1

F60556

EXTENSION - end, bale diverter

1шт.

SCREW - 3/8" x 5/8" N.C. rhd. (75-610) nut (25-106) L.W. (92-6)

3шт.

2

F60560

CHAIN (27 links) Bale diverter

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5)

1шт.

SCREW - 3/8" x 1-1/4" N.C. rhd. (75-620) fl. wshr. (95-6)

1шт.

NUT - 3/8" N.C. hex. (25-106)

2шт.

3

F60555

EXTENSION - side, bale diverter

1шт.

SCREW - 3/8" x 3/4" N.C. rhd. (75-612) nut (25-106) L.W. (92-6)

4шт.

4

F60553

HOLDER - chute chain

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (12-612) nut (25-106) L.W. (92-6)

1шт.

2

F60560

CHAIN (27 links) Bale chute

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5)

1шт.

SCREW - 3/8" x 1-1/4" N.C. rhd. (75-620) fl. wshr. (95-6)

1шт.

NUT - 3/8" N.C. hex. (25-106)

2шт.

3

F60555

EXTENSION - side, bale diverter

1шт.

SCREW - 3/8" x 3/4" N.C. rhd. (75-612) nut (25-106) L.W. (92-6)

4шт.

4

F60553

HOLDER - chute chain

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (12-612) nut (25-106) L.W. (92-6)

1шт.

5

O5131N

CHAIN (AG)

CHAIN (63 links) Loader chain support

2шт.

SCREW - 3/8" x 1-1/4" N.C. rhd. (75-620) fl. wshr. (95-6)

2шт.

NUT - 3/8" N.C. hex. (25-106)

4шт.

6

F60871

CHUTE - bale loader

1шт.

SCREW - 3/8" x 1" N.C. rhd. (75-612)

2шт.

NUT - 3/8" N.C. hex. (25-106)

4шт.
