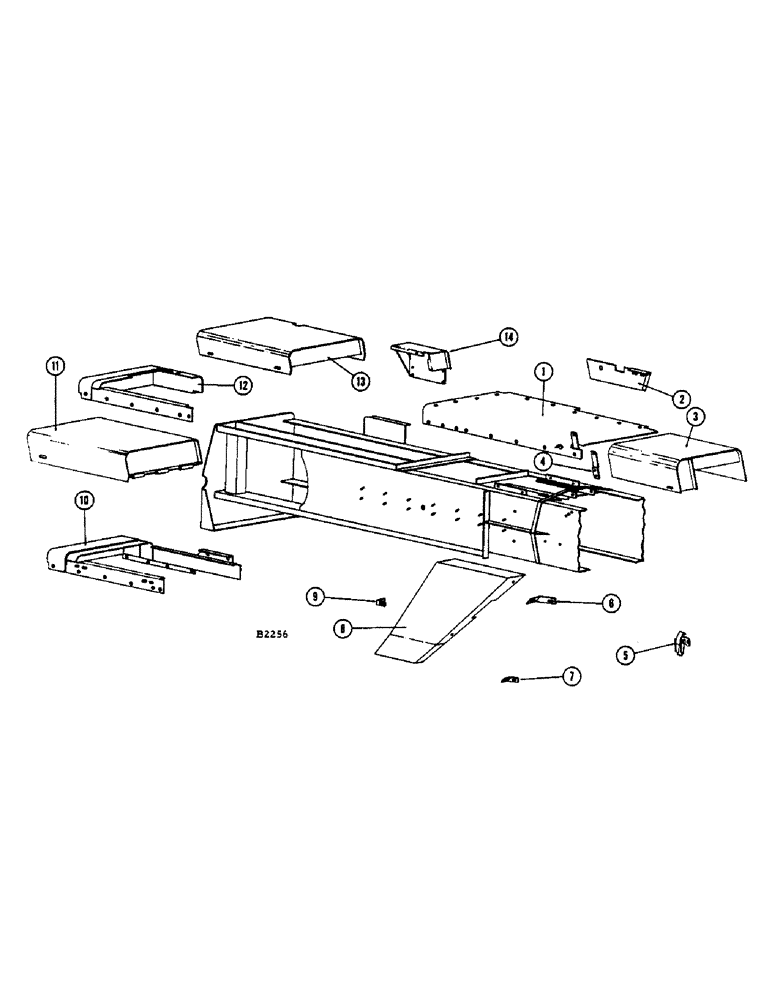

Запчасти Case IH 200 (36) - SHIELD ATTCHMENT

1

F95787

COVER - chamber, Serial Range: crank-knotter

1шт.

SCREW - #10 - 24 x 5/8" truss hd. mach. (175-446) Tinnerman nut (131-143)

5шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (175-400)

11шт.

NUT - 1/4" N.C. hex. (129-101) L.W. (192-19)

2шт.

NUT - Tinnerman (131-132)

3шт.

NUT - Tinnerman (131-117)

6шт.

2

F65023

PIN

SHEET - filler, knotter cover, R.H.

1шт.

3

F95789

COVER - knotter

1шт.

A24526

MEDALLION - Eagle (Not shown)

1шт.

NUT - Tinnerman snap on (131-138)

2шт.

4

F65024

PIN

BRACKET - hinge, R.H.

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121) L.W. (192-19)

2шт.

5

F65031

CLAMP - Bassick #HR-5 (4 for PTO model; 5 for engine model)

1шт.

SCREW - #10 - 24 rhd. mach. (173-212) nut (129-17) L.W. (192-18) and fl. wshr. (195-101)

2шт.

6

F65019

PIN

BRACKET - knotter chain shield, upper rear

1шт.

7

F65020

PIN

BRACKET - knotter chain shield, lower rear

1шт.

BOLT - 3/8" x 5/8" N.C. hex. (113-205) nut (129-103) L.W. (192-21)

1шт.

8

F95788

SHIELD - knotter chain

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (175-400) and Tinnerman nut

4шт.

9

F65018

PIN

BRACKET - knotter chain shield, lower front

1шт.

10

F95790

COVER - front chamber (PTO machines)

1шт.

SCREW - #10 - 24 x 5/8" truss hd. mach. (175-446) Tinnerman nut (131-143)

6шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (175-400) nut (129-101) and L.W. (192-19)

2шт.

11

F95791

COVER - crank (PTO machines)

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (175-400) nut (129-101) and L.W. (192-19)

4шт.

12

F95793

COVER - front chamber (Engine machines)

1шт.

SCREW - #10 - 24 x 5/8" truss hd. mach. (175-446) Tinnerman nut (131-143)

6шт.

13

F95795

COVER - crank (Engine machines)

1шт.

14

F95794

FILLER - crank cover (Engine machines)

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. mach. (175-400) nut (129-101) and L.W. (192-19)

2шт.
