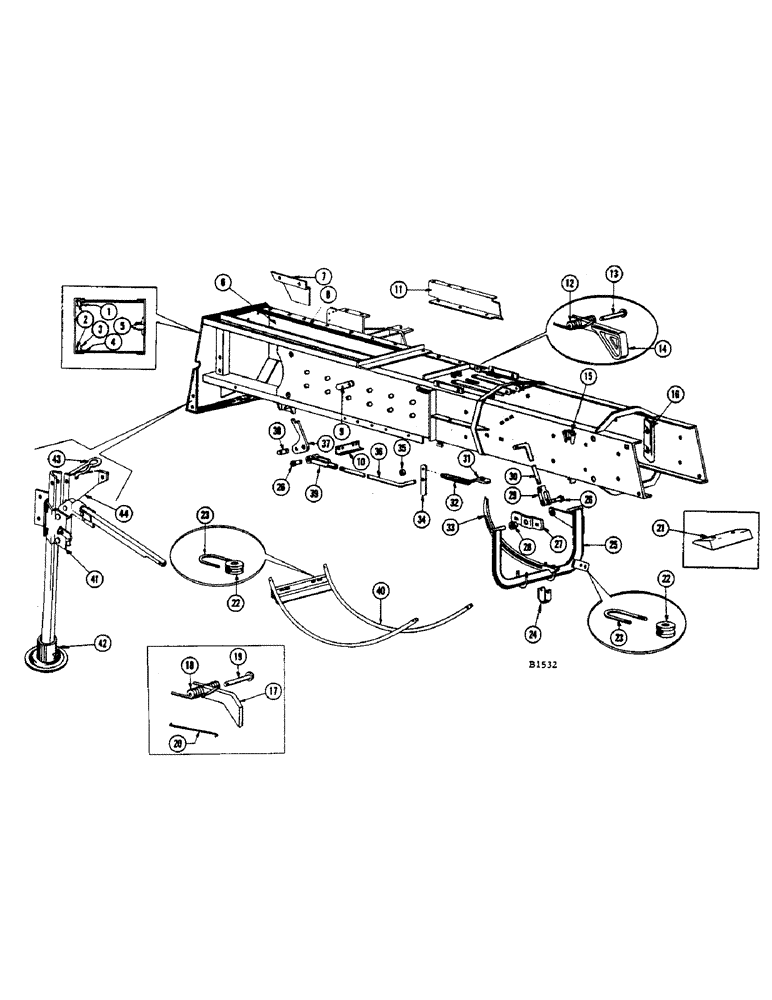

Запчасти Case IH 200 (32) - BALING CHAMBER AND HAY DOGS

1

F95399

WEAR ANGLE - top

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106) L.W. (92-6) fl. wshr. (95-6)

6шт.

2

F95796

WEAR STRIP - side

2шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6)

13шт.

3

F95398

WEAR ANGLE - lower

1шт.

BOLT - 3/8" x 1" #3 plow (18-616) nut (25-106) L.W. (92-6)

4шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106) L.W. (92-6)

2шт.

4

F62060

WASHER (1" O.D. x 17/32" I.D. #12 ga.)

6шт.

5

F60638

ANGLE - plunger skid

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106) L.W. (92-6)

14шт.

6

F95348

CHAMBER - baling (Before #8221501) See F95599

1шт.

F95599

X

CHAMBER - baling (#8221501 and after) See F95348

1шт.

7

F60647

GUARD - guide sheet

1шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6)

2шт.

8

F60636

X

WEAR PLATE - top front

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106) L.W. (92-6)

6шт.

9

F60639

COVER - hole

1шт.

10

F61166

STRAP - reinforcing (Used w/o bale launcher)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

4шт.

11

F60803

COVER - rail

1шт.

12

F60881

SPRING

- hay dog

3шт.

13

MT2854S

PIN (1/2" x 2-1/2" drilled) Hay dog

3шт.

PIN - 3/16" x 3/4" cotter (13-89)

3шт.

14

F2528

STOP

DOG - hay

3шт.

15

A8179

SOCKET

BRACKET - warning lamp socket

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) nut (25-105) L.W. (92-6)

2шт.

16

F60941

WEDGE

- restrictor lug

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (12-512) nut (25-105) L.W. (92-5)

2шт.

629N

WEDGE - bale case (May be used in place of F60941 wedge)

1шт.

17

F95853

RETAINER

DOG - hay, auxiliary hay dog attachment

2шт.

18

F60881

SPRING

- hay dog hay dog attachment

2шт.

19

O1144CH

PIN

(1/2" x 3") Hay dog hay dog attachment

2шт.

PIN - 3/16" x 1-1/8" cotter (132-92) hay dog attachment

2шт.

20

F65116

LINK - spring hay dog attachment

1шт.

21

F2585

WEDGE - hay hay wedge attachment

3шт.

BOLT - 3/8" x 3/4" N.C. hex. (113-206) L.W. (192-21) hay wedge attachment

6шт.

22

F60580

GUIDE - twine needles

3шт.

23

F60581

BOLT

"U" BOLT - twine guide needles

3шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4) fl. wshr. (95-4) needles

6шт.

24

F61259

CLAMP needles

1шт.

BOLT - 5/16" x 2-1/2" N.F. hex. (14-540) nut (25-115) L.W. (92-5) needles

1шт.

25

F95382

YOKE - needle

1шт.

NUT - 7/16" N.F. hex. (25-117) L.W. (92-7) fl. wshr. (95-7) needles

4шт.

26

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis needles

2шт.

PIN - 1/8" x 3/4" cotter (132-91) needles

2шт.

27

F60577

CLAMP - needle yoke pivot needles

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-116) L.W. (92-6) needles

4шт.

28

F60576

BUSHING (1-3/4" O.D. x 7/8" long) Flange needles

2шт.

29

O4380N

CLEVIS

- needle Pitman needles

1шт.
