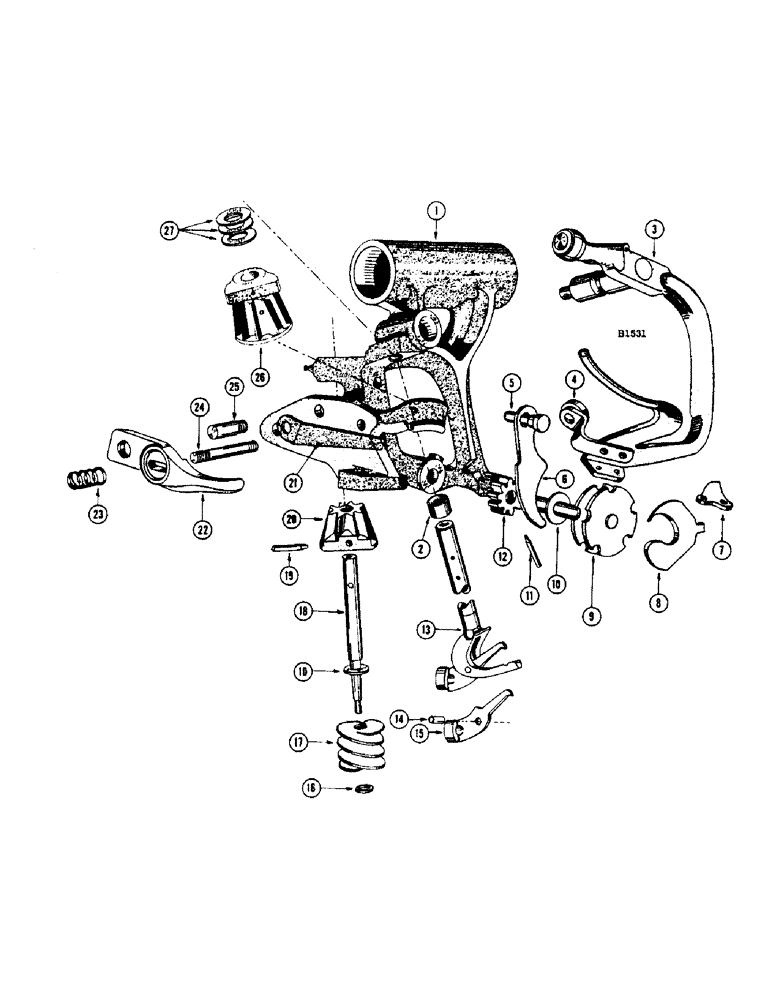

Запчасти Case IH 200 (30) - KNOTTER AND KNOTTER FRAME

F95439

KNOTTER - complete (Replaced by F95710 when stocks are exhausted)

2шт.

F95710

KNOTTER - complete (Replaces F95439 when stocks are exhausted)

2шт.

1

1778NA

FRAME - knotter

1шт.

2

O5017N

BUSHING (25/32" O.D. x 3/4" long)

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Lincoln #205010 1/4"-28 x .56" lg, Self-Tap

5шт.

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Lincoln #205410 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

BOLT - 7/16" x 1-1/4" N.F. hex. (14-720) nut (25-117) L.W. (92-7)

1шт.

3

F95581

SPARE PART

ARM - twine stripper

1шт.

PIN - 5/16" x 1" cotter (132-69)

1шт.

4

1777NA

ARM

SUPPORT - stripper, with pad and 3/16" x 3/8" ctsk. hd. rivets

1шт.

SCREW - 1/4" x 3/8" N.F. rhd. mach. (76-46)

2шт.

WASHER - 1/4" ext. tooth #1114 (193-8)

2шт.

5

F60321

X

STUD - twine holder

1шт.

6

F60950

HOLDER

- twine (Replaced by F61198 when stocks are exhausted)

1шт.

F61198

HOLDER

- twine (Replaces F60950 when stocks are exhausted)

1шт.

7

O5029N

KNIFE

- twine

1шт.

SCREW - 1/4" x 3/8" N.F. rhd. mach. (76-46)

2шт.

WASHER - 1/4" ext. tooth #1114 (193-8)

2шт.

8

F60968

CLEANER

- twine disc

1шт.

9

F95335

DISC

- twine

1шт.

10

O5507N

WASHER

(1-1/8" O.D. x 39/64" I.D. #18 ga.)

1шт.

11

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

12

F61197

GEAR

(10T) Twine tension disc

1шт.

13

F95491

HOOK

- knotter

1шт.

14

F60837

PIN - for knotter tongue and hook

1шт.

15

F95493

TONGUE - knotter hook

1шт.

16

O5234N

WASHER - 13/16" O.D. x 19/32" I.D. #22 ga.)

1шт.

17

O5493N

WORM

- twine disc drive

1шт.

18

F60967

SHAFT - knife arm

1шт.

NUT - 3/8" N.F. hex. (25-116)

1шт.

19

135-340

GROOVED PIN,3/16" x 7/8", Type F

Pin, Grooved, 3/16" x 7/8", Type F

1шт.

20

639N

PINION (8T) Worm shaft

1шт.

21

O5015N

X

SPRING - twine holder (Replaced F61199 when stocks are exhausted)

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (13-620) nut (25-106) fl. wshr. (95-6)

1шт.

F61199

HOLDER

SPRING - twine holder (Replaces O5015N when stocks are exhausted)

1шт.

22

F2559

HOOK

CAM - knotter tongue roller

1шт.

23

O5024N

SPRING

- cam

1шт.

24

O5023N

STUD - cam spring

1шт.

25

E143S

STUD - cam

1шт.

NUT - 5/16" N.C. hex. jam (25-145)

1шт.

26

F2562

PINION - knotter hook

1шт.

27

O5092N

WASHER

(13/16" O.D. x 19/32" I.D. #18 ga.) Knotter hook pinion

1шт.
