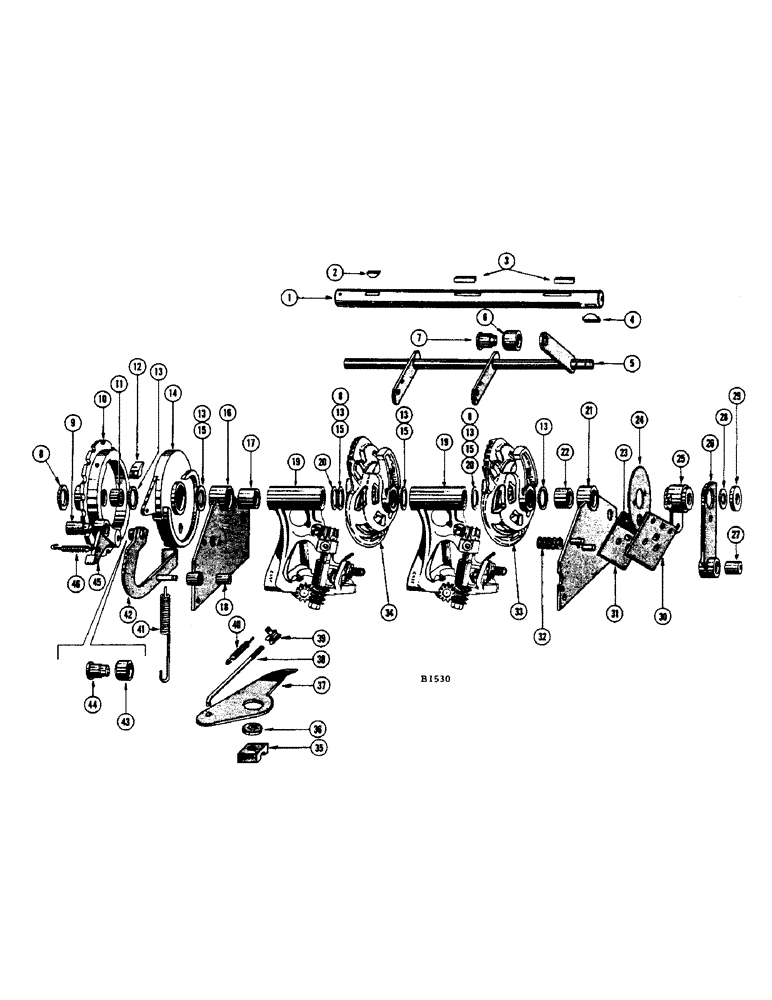

Запчасти Case IH 200 (28) - KNOTTER SHAFT AND TUCKER FINGERS

1

F60922

SHAFT - knotter

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) L.W. (92-6)

1шт.

2

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

#D, 5/16" x 1-1/4"

1шт.

3

F60923

KEY (3/8" x 3/8" x 2" long)

2шт.

4

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

5

F95447

BELLCRANK

1шт.

6

F60730

ROLLER - cam

1шт.

7

F60735

SPINDLE - bellcrank

1шт.

PIN - 3/16" x 1" cotter (132-91)

1шт.

8

O3919N

X

WASHER (1-3/4" O.D. x 1-5/32" I.D. #16 ga.) Knotter shaft

1шт.

9

F60724

PIN - pivot, clutch dog

1шт.

10

F95444

SPROCKET ASSY.

SPROCKET (25T) Driven, knotter

1шт.

11

F60725

BUSHING

(1-1/4" O.D. x 3/4" long - split)

2шт.

12

F60726

STOP

- clutch ring

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Lincoln #5010 1/4"-28 NPT x .54" lg

1шт.

BOLT - 3/8" x 7/8" N.C. hex. (13-614) L.W. (92-6)

1шт.

PIN - 3/16" x 1-1/2" cotter (132-95)

1шт.

13

F62078

WASHER

(1-3/4" O.D. x 1-5/32" I.D. #20 ga.) Knotter shaft

1шт.

14

F2540

X

CAM - clutch

1шт.

SCREW - 3/8" x 3/4" N.C. sq. hd. cup pt. set (85-612) Jam nut (25-146)

1шт.

15

O5235N

WASHER (1-3/4" O.D. x 1-5/32" I.D. #28 ga.) Knotter shaft

1шт.

16

F95440

PLATE - knotter support, L.H.

1шт.

17

F60716

BUSHING (1-3/8" O.D. x 1-5/8" long)

1шт.

18

F60721

BUSHING (5/8" O.D. x 1-1/4" long)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516)

1шт.

NUT - 5/16" N.C. hex. (25-105)

2шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116) L.W. (92-6)

4шт.

19

F95439

KNOTTER - complete (Replaced by F95710 when stocks are exhausted)

2шт.

F95710

KNOTTER - complete (Replaces F95439 when stocks are exhausted)

2шт.

20

F60974

WASHER (1-3/4" O.D. x 1-5/32" I.D. x .010") Knotter shaft

1шт.

21

F95435

PLATE - knotter support, R.H.

1шт.

22

F60716

BUSHING (1-3/8" O.D. x 1-5/8" long)

1шт.

23

F95538

LINING - knotter brake (Set of 2)

1шт.

24

F60712

DISC - brake

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115) L.W. (92-5)

2шт.

25

F2539

X

HUB - Pitman (Replaced by F2571 when stocks are exhausted)

1шт.

F2571

PITMAN

HUB - Pitman (Replaces F2539 when stocks are exhausted)

1шт.

SCREW - 3/8" x 7/8" N.C. sq. hd. cup pt. set (85-614) Jam nut (25-146)

1шт.

26

F95433

ARM - Pitman

1шт.

27

F60711

BUSHING (7/8" O.D. x 1-3/8" long)

1шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (14-420) nut (25-114) L.W. (92-4)

1шт.

28

F60727

WASHER

(1-1/16" O.D. x 13/32" I.D. #20 ga.) Adjusting, knotter shaft

1шт.

29

O1917CH

WASHER (2-1/4" O.D. x 13/32" I.D. #12 ga)

1шт.

30

F95438

PLATE - knotter brake, outside (Includes lining)

1шт.

31

F95437

BRAKE

PLATE - knotter brake, inside (Includes lining)

1шт.

BOLT - 5/16" x 1-3/4" rhd. sq. nk. (11-528) Jam nut (25-145)

1шт.

32

A26691

SPRING

- brake plates

1шт.

33

A641N

WHEEL - tyer, R.H. (Replaced by F2568 when stocks are exhausted)

1шт.

34

640N

WHEEL - tyer, L.H. (Replaced by F2568 when stocks are exhausted)

1шт.

F2568

WHEEL - typer (Replaces A641N and 640N when stocks are exhausted)

2шт.

35

F60652

LOCKNUT

2шт.

36

F60869

BUSHING (41-64" O.D. x 15/64" long)

2шт.

37

F60648

FINGER

- tucker

2шт.

SCREW - 3/8" x 7/8" N.C. button hd. cap (164-596) fl. wshr. (95-6)

2шт.

38

F60649

LINK - tucker finger

2шт.

PIN - 1/8" x 3/4" cotter (132-46)

2шт.

39

F60650

SWIVEL - tucker finger link

2шт.

PIN - 1/8" x 3/4" (132-46)

2шт.

40

F60934

SPRING - tucker, Serial Range: finger-bellcrank

1шт.

41

F60940

SPRING

- clutch dog arm

1шт.

42

F95445

ARM - clutch dog

1шт.

43

F60730

ROLLER - cam

1шт.

44

F60731

SPINDLE - cam roller

1шт.

45

F95443

DOG - clutch

1шт.

46

O1140HS

SPRING

- clutch dog

1шт.
