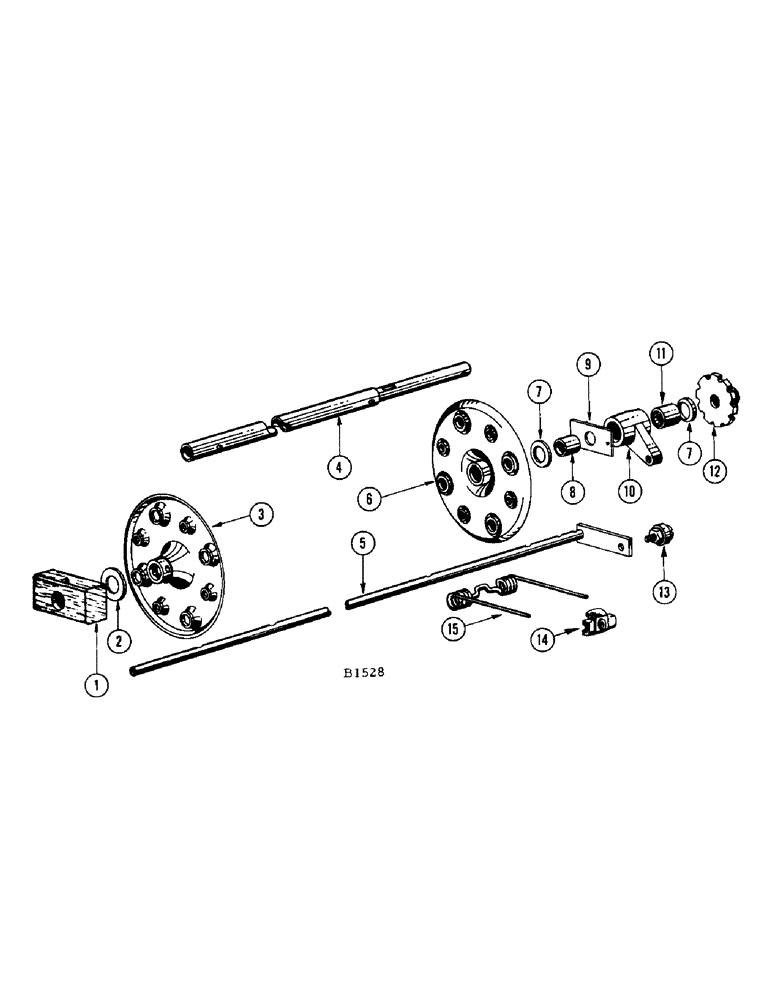

Запчасти Case IH 200 (26) - PICKUP SHAFT, HEADS AND FINGERS

1

F4909

BEARING (Wood) R.H.

1шт.

FITTING - 7/16" x 67-1/2 degree Lincoln #5365 (219-52)

1шт.

2

O5032A

WASHER

(2-3/4" O.D. x 1-3/4" I.D. #16 ga.)

1шт.

3

F95598

HEAD - cylinder, R.H. (#8221501 and after) See F95359

1шт.

BOLT - 3/8" x 2-3/4" N.F. hex. (14-644) Flexloc nut (131-528)

1шт.

F95359

HEAD - cylinder, R.H (Before #8221501) See F95598

1шт.

BOLT - 3/8" x 2-3/4" N.F. hex. (14-644) Flexloc nut (131-528)

1шт.

4

F95358

SHAFT - pickup (Replaced by F95597 when stocks are exhausted)

1шт.

F95597

SHAFT - pickup (Replaces F95358 when stocks are exhausted)

1шт.

5

F95367

BAR - finger

4шт.

PIN - 1/8" x 1-1/2" cotter (132-52)

4шт.

6

F95365

HEAD - cylinder, L.H.

1шт.

KEY - #21 Woodruff (126-32)

1шт.

7

A26476

WASHER

(2-1/8" O.D. x 1-7/16" I.D. #16 ga.)

1шт.

8

F60551

SPACER - pickup shaft (Replaced by F60973 when stocks are exhausted)

1шт.

F60973

SPACER - pickup shaft (Replaces F60551 when stocks are exhausted)

1шт.

9

F60970

PLATE - wear

1шт.

SCREW - 1/4" x 5/8" N.C. truss hd. (77-410) nut (25-104) L.W. (92-4)

2шт.

10

F95373

HOUSING - bearing

1шт.

11

F60550

BEARING

BUSHING

1шт.

12

F2524

SPROCKET ASSY.

SPROCKET (12T) Pickup drive, driven

1шт.

BOLT - 5/16" x 2-1/2" N.F. hex. (14-540) nut (25-115) L.W. (92-5)

1шт.

13

F60545

GUIDE

FOLLOWER - cam

4шт.

NUT - 3/8" N.F. hex. self-locking (131-366)

4шт.

14

F2522

CLAMP

- pickup fingers

24шт.

BOLT - 5/16" x 2" N.F. hex. (14-532) nut (25-115) L.W. (92-5)

24шт.

15

F60546

SPRING

FINGER - pickup

24шт.
