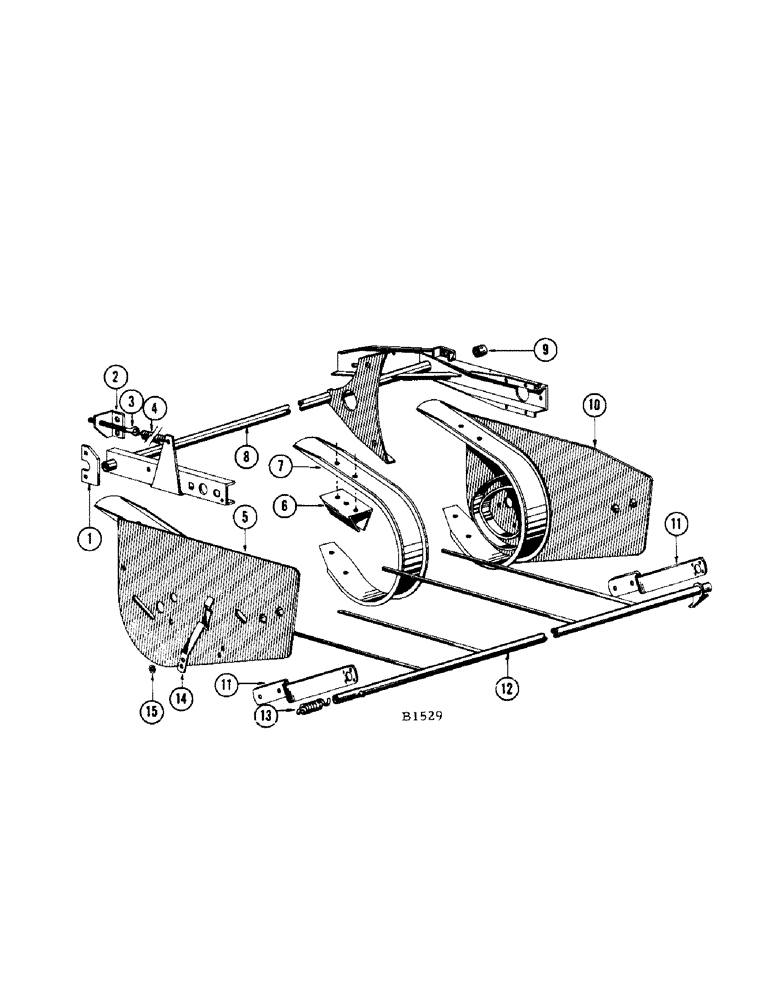

Запчасти Case IH 200 (26[A]) - PICKUP STRIPPERS, WINDGUARD AND LIFT

1

F60569

PLATE - keeper

2шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-319) nut (129-103) L.W. (192-21)

4шт.

2

F60756

BRACKET - balance spring

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) nut (25-106) L.W. (92-6)

2шт.

3

F60924

EYEBOLT - lift spring

1шт.

NUT - 3/8" N.C. hex. (25-106)

2шт.

FLATWASHER - 3/8" (95-6)

1шт.

4

F60865

SPRING - pickup lift

1шт.

5

F95537

STRIPPER - R.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116) L.W. (92-6)

2шт.

6

F60815

GUIDE - pickup fingers (Needed to guide pickup fingers when flywheel is turned backwards) Before #8203001

13шт.

7

F60547

STRIPPER

- pickup

11шт.

SCREW - 1/4" x 7/16" Shakeproof self-tapping type 1 wshr. hd. (187-1013)

52шт.

8

F95721

TUBE - torque (#8223051 and after) See F95356

1шт.

9

F60525

BUSHING (1-5/8" O.D. x 1-1/4" long)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

1шт.

BOLT - 3/8" x 3-1/2" N.F. hex. (14-656) dbl. nut (25-116)

1шт.

FLATWASHER - 3/8" (95-6)

4шт.

F95356

TUBE - torque (Before #8223051) See F95721

1шт.

F60525

BUSHING (1-5/8" O.D. x 1-1/4" long)

1шт.

10

F95483

STRIPPER - L.H., with cam

1шт.

SCREW - 1/4" x 5/8" N.C. truss hd. (77-410) nut (25-104) L.W. (92-4)

4шт.

11

F60566

ARM - windguard

2шт.

SCREW - 3/8" x 3/4" N.C. flat hd. (171-219) nut (129-103) L.W. (192-21)

4шт.

12

F95381

WINDGUARD

1шт.

PIN - 3/16" x 2-1/4" cotter (132-101)

2шт.

13

F60568

SPRING

- windguard tension

1шт.

14

F60832

LATCH - pickup (Used in transport)

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4)

2шт.

15

O4901CS

WASHER (1" O.D. x 9/32" I.D. #18 ga.) Pickup latch bolt

1шт.
