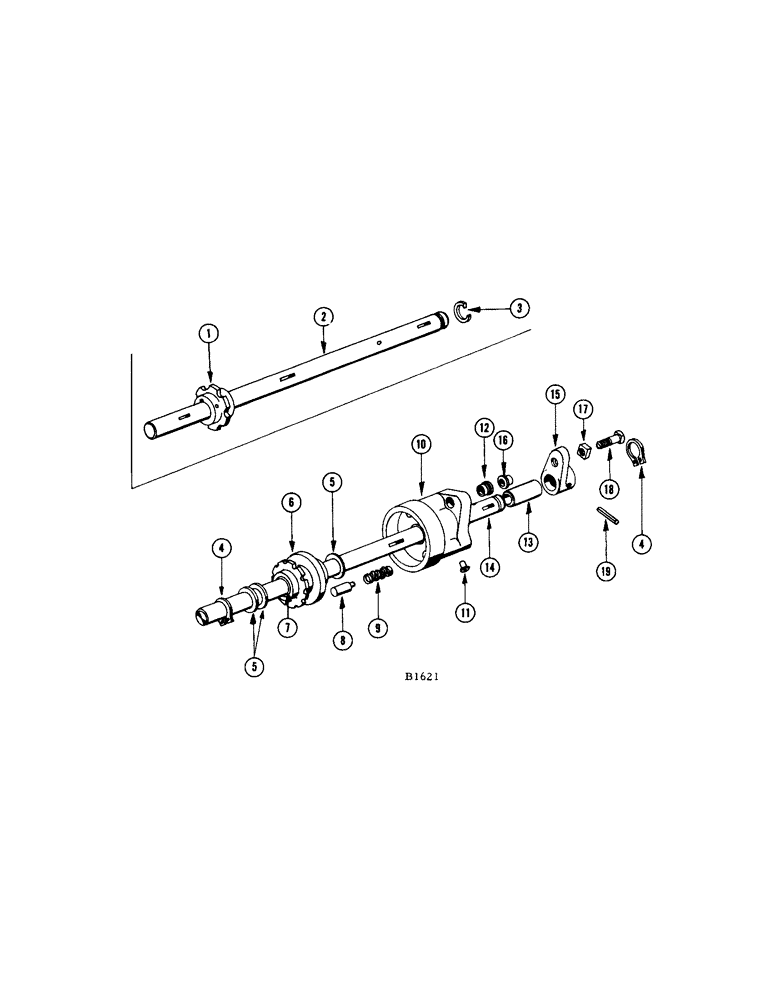

Запчасти Case IH 200 (24) - PICKUP OVERRUNNING CLUTCH

1

F2534

SPROCKET (9T) Pickup drive (Before #8203001) See F95543

1шт.

2

F60701

COUNTERSHAFT - pickup and knotter drive (Before #8203001) See F60895

1шт.

3

F60703

SNAP RING (Before #8203001) See F62020

1шт.

4

F62020

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

5

F60899

WASHER

(1-3/4" O.D. x 1-9/32" I.D. #18 ga.)

1шт.

6

F95543

SPROCKET (9T) Pickup drive

1шт.

7

F60900

BUSHING (1-3/8" O.D. x 1-3/4" long)

1шт.

8

F60697

PIN

- clutch

2шт.

9

F60698

SPRING

- clutch pin

2шт.

10

F95542

CLUTCH - overrunning, pickup drive

1шт.

11

F60921

COVER - ball valve hole

2шт.

12

F60896

SLEEVE (5/8" rd. x 5/8" long)

1шт.

13

F60897

BUSHING (1-3/8" O.D. x 2-1/4" long)

1шт.

14

F60895

COUNTERSHAFT - pickup and knotter drive (Replaces F60701 when stocks are exhausted)

1шт.

15

F95541

ARM - pickup drive shear pin

1шт.

16

F60896

SLEEVE (5/8" rd. x 5/8" long)

1шт.

17

131-350

LOCK NUT,1/4"-20, GA

LOCKNUT - 1/4" N.C. Gripco

1шт.

18

F60898

BOLT (1/4" x 1-3/4" N.C. sq. hd.) Shear

1шт.

19

135-377

PIN, GROOVED

PIN - 3/8" x 1-3/4" type A-3 groove

1шт.
