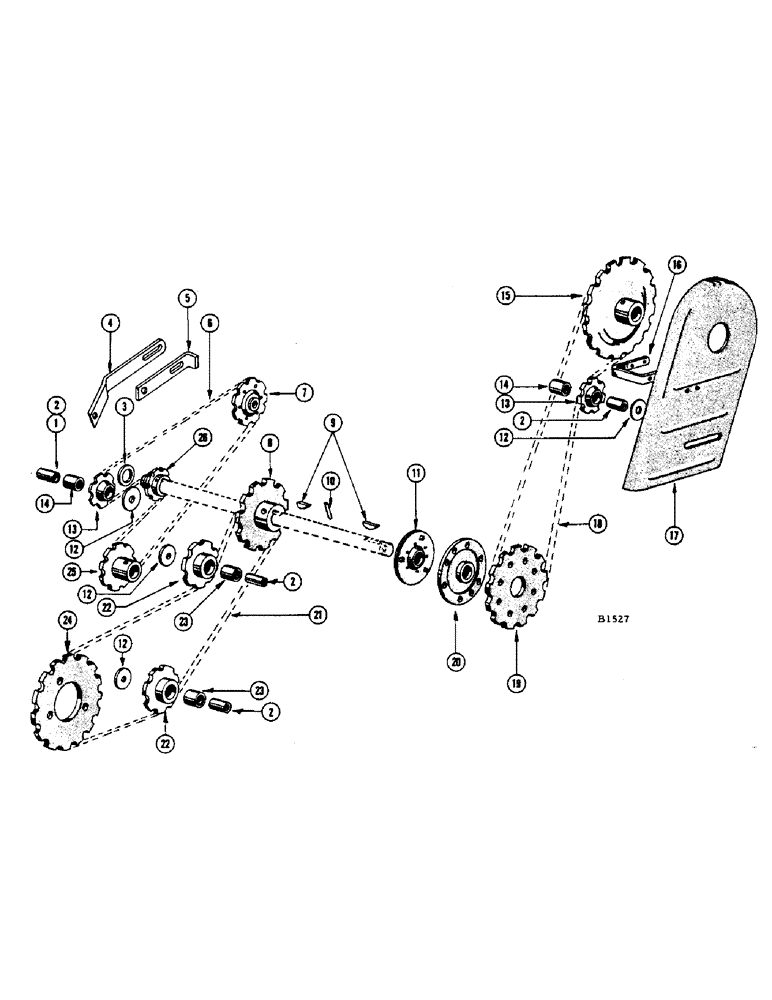

Запчасти Case IH 200 (22) - PICKUP AND KNOTTER DRIVE

1

F60552

SPACER (1" O.D. x 1-1/4" long) Pickup drive chain idler (Before #8223051) See ref. 2

1шт.

2

F60704

SPACER (1" O.D. x 1-5/16" long) Pickup drive chain idler (#8223051 and after) Knotter drive chain idler and countershaft drive chain idlers (See ref. 1)

4шт.

3

F60899

WASHER

(1-3/4" O.D. x 1-9/32" I.D. #18 ga.) Countershaft

1шт.

4

F60874

REINFORCEMENT - idler strap (Before #8203001)

1шт.

BOLT - 3/8" x 2-1/2" N.F. hex. (14-640) L.W. (92-6)

1шт.

5

F60873

STRAP - pickup drive chain idler sprocket, rear

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118) L.W. (92-8)

1шт.

BOLT - 1/2" x 1/4" N.F. hex. (14-836) nut (25-118) L.W. (92-8)

1шт.

FLATWASHER - 1/2" (95-8)

2шт.

6

F60877

CHAIN - pickup drive (See chain page)

1шт.

7

F60820

BEARING

SPROCKET (11T) Pickup drive chain rear idler

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118) L.W. (92-8) fl. wshr. (95-8)

1шт.

8

F2535

SPROCKET (16T) Driven, countershaft

1шт.

SCREW - 3/8" x 3/4" N.C. sq. hd. cup pt. set (85-612)

1шт.

9

126-32

WOODRUFF KEY,#21, 1/4" x 1 1/4"

2шт.

10

138-148

LOCK PIN,1/4" x 3 1/2", Slotted

PIN - 1/4" x 2" roll

1шт.

11

F60702

BEARING

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106) L.W. (92-6)

3шт.

12

O2681B

WASHER (1-7/8" O.D. x 17/32" I.D. #12 ga.)

5шт.

13

F95374

SPROCKET (9T) Idler

2шт.

14

F51165

BEARING

BUSHING (1-3/8" O.D. x 1" long)

1шт.

BOLT - 1/2" x 2-1/4" N.C. sq. hd. (17-836) nut (25-108) L.W. (92-8)

1шт.

FLATWASHER - 1/2" (95-8)

1шт.

BOLT - 1/2" x 2-1/4" N.F. hex. (14-836) nut (25-108) L.W. (92-8)

1шт.

15

F95444

SPROCKET ASSY.

SPROCKET (25T) Knotter ring

1шт.

16

F60817

BRACKET - knotter chain shield

1шт.

SCREW - 1/4" x 3/4" N.C. rhd. mach. (75-412) nut (25-104) L.W. (92-4)

2шт.

17

F60816

SHIELD - knotter chain

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (173-201) nut (129-101) L.W. (192-19)

2шт.

18

F60707

CHAIN - knotter drive (See chain page)

1шт.

19

F60819

SPROCKET (20T) Knotter drive

1шт.

BOLT - 5/16" x 1" N.C. hex. (13-516) nut (25-105) L.W. (92-5)

2шт.

20

F2537

HUB - knotter drive sprocket

1шт.

SCREW - 3/8" x 5/16" N.C. socket hd. cup pt. set (83-65)

1шт.

21

F60705

CHAIN - countershaft drive (See chain page)

1шт.

22

F95430

SPROCKET (9T) Idler, countershaft drive chain

2шт.

23

F51165

BEARING

BUSHING (1-3/8" O.D. x 1" long)

1шт.

24

F60660

SPROCKET (20T) Countershaft drive

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6)

3шт.

25

F2524

SPROCKET ASSY.

SPROCKET (12T) Driven, pickup

1шт.

BOLT - 5/16" x 2-1/2" N.F. hex. (14-540) nut (25-115) L.W. (92-5)

1шт.

26

F2534

SPROCKET (9T) Pickup drive (Before #8203001) See F95543

1шт.

F95543

SPROCKET (9T) Pickup drive (#8203001 and after) See F2534

1шт.
