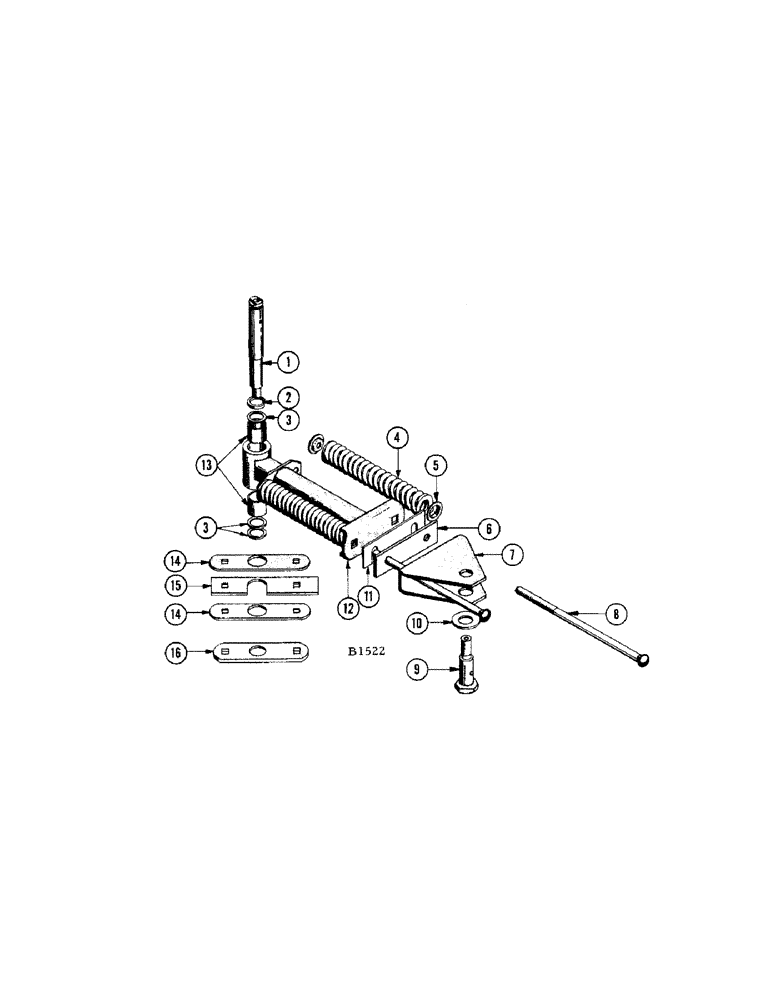

Запчасти Case IH 200 (18) - FEEDER ARM DRIVE LINK

1

F60627

SPINDLE

PIN - plunger

1шт.

NUT - 5/8" N.F. Flexloc (131-580) fl. wshr. (95-10)

1шт.

FITTING - 1/8" str. Lincoln #5000 (219-1)

1шт.

2

A27012

RING

- snap, plunger pin

1шт.

3

F60899

WASHER

(1-3/4" O.D. x 1-9/32" I.D. #18 ga.) Plunger pin

1шт.

4

F60743

SPRING - drive link

2шт.

5

F60744

WASHER - cupped, spring

4шт.

6

F60741

SPACER (Rubber) Drive link clevis

1шт.

7

F60742

CLEVIS - drive link

1шт.

8

F60745

BOLT (1/2" x 10" rhd. sq. nk.) Drive link

2шт.

NUT - 1/2" N.C. hex. (25-108)

4шт.

9

O6804HT

BOLT

- shoulder, drive link

1шт.

NUT - 3/4" N.F. hex. (25-1112) L.W. (92-12)

1шт.

FITTING - 1/8" str. Lincoln #5000

1шт.

10

O4515HT

WASHER

(2-1/8" O.D. x 1" I.D. #18 ga.)

1шт.

11

F60893

SHIM - drive link (Insert as needed to keep feeder arm head from hitting bale chamber) (#8191601 and after)

1шт.

12

F95450

LINK - drive

1шт.

13

F60736

BUSHING

(1-3/8" O.D. x 1" long) Drive link

2шт.

14

F60628

STRIP

- wear, drive link

2шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. (11-624) nut (25-106) L.W. (92-6)

2шт.

15

F60629

SPACER - wear strip

1шт.

16

F60630

STRIP - wear plate, plunger channel

1шт.
