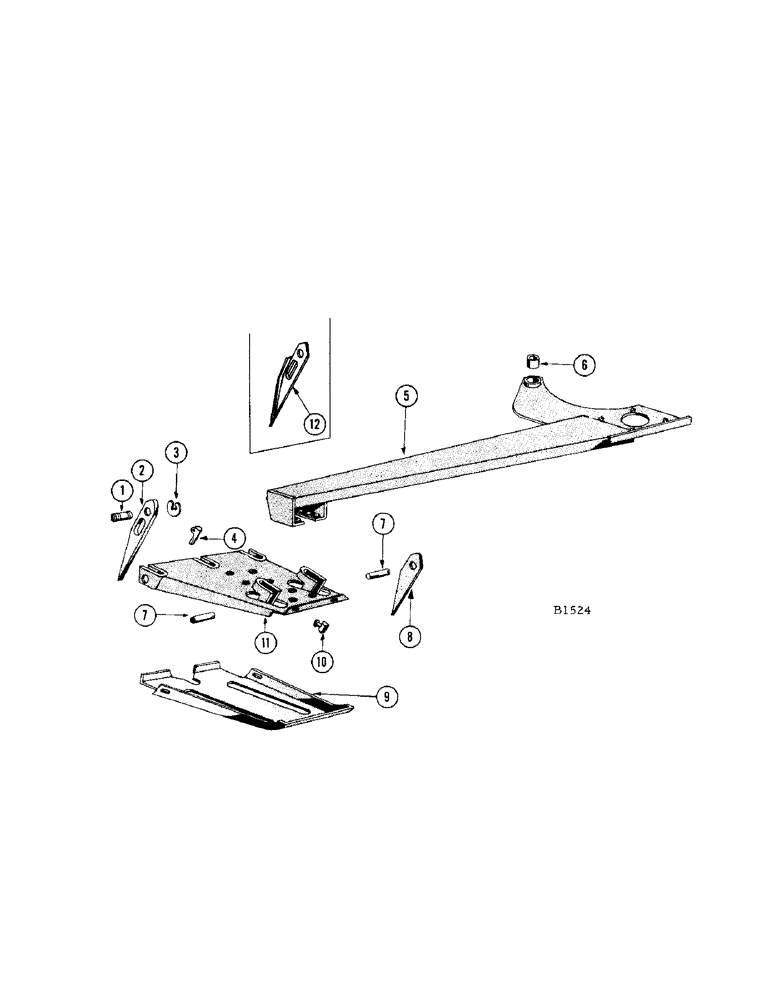

Запчасти Case IH 200 (18[A]) - FEEDER ARM, HEAD AND FINGERS

1

F60794

PIN

(3/4" O.D. x 27/32" long) Inside finger

3шт.

2

F65111

PIN

FINGER - inside

3шт.

3

O9635AB

X

WASHER - retaining, finger pin

6шт.

4

F60792

PAD - inside finger

3шт.

PIN - 3/32" x 1" cotter (132-28)

1шт.

PIN - 1/8" x 9/16" roll (138-54)

2шт.

5

F95463

ARM - feeder

1шт.

6

F60810

BUSHING

(1-1/8" O.D. x 1-3/8" long)

1шт.

BOLT - 3/8" x 5/8" N.C. hex. (13-610) L.W. (92-6)

4шт.

7

F60798

PIN

(1/2" O.D. x 31/32" long) Pivot, outside finger

2шт.

PIN - 1/8" x 13/16" roll (138-58)

2шт.

8

F65112

PIN

FINGER - outside

2шт.

9

F60799

SHOE - feeder head

1шт.

10

F60795

PAD - outside finger

2шт.

11

F95468

HEAD - feeder

1шт.

SCREW - 1/4" x 1/2" N.C. truss hd. slotted mach. (193-515)

4шт.

12

F95854

FINGER (Wedged) Inside (May be used in place of ref. 2 for baling slick material)

3шт.
