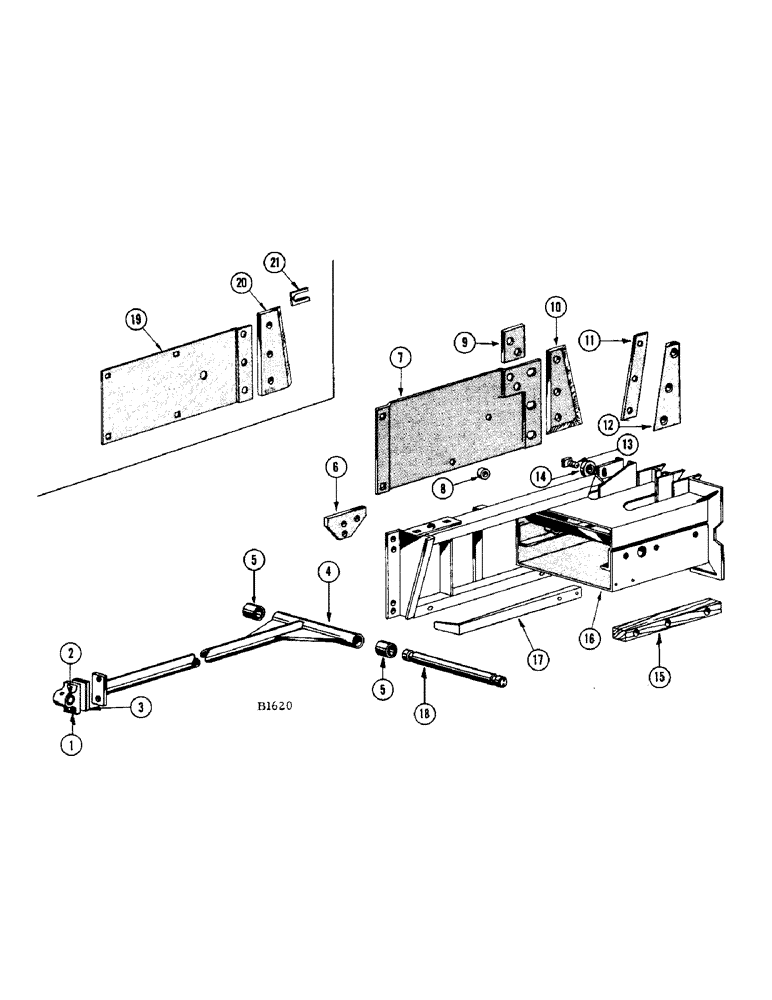

Запчасти Case IH 200 (16) - PLUNGER AND PLUNGER PITMAN
№
Артикул
Название
Примечание
Количество
1
F95395
CAP
- plunger Pitman
1шт.
2
F60624
BUSHING
(1-15/16" O.D. x 2" long)
1шт.
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - 1/8" str. Lincoln #5000
1шт.
3
F60625
PAD - plunger Pitman cap
1шт.
BOLT - 7/16" x 1-1/4" N.C. hex. (13-720) L.W. (92-7)
2шт.
4
F95393
PITMAN - plunger
1шт.
5
F60623
BUSHING
(1-3/8" O.D. x 2" long)
2шт.
219-40
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
FITTING - 1/8" 67-1/2 degree Lincoln #53000
1шт.
6
F60626
PAD - wear, side sheet
2шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116) L.W. (92-6)
6шт.
7
F60884
SHEET - side (#8175101 and after) See ref. 19
1шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5)
2шт.
8
F60886
SPACER (1" O.D. x 1/4" long) Side sheet (#8175101 and after)
1шт.
SCREW - 5/16" x 3/4" N.C. fl. hd. mach. (73-512) nut (25-105) L.W. (92-5)
1шт.
9
F60887
PLATE - guide (#8175101 and after)
1шт.
SCREW - 5/8" x 1-1/4" N.F. fl. hd. socket cap (164-134)
2шт.
10
F60885
KNIFE - plunger (#8175101 and after) See ref. 20
1шт.
SCREW - 5/8" x 1-1/4" N.F. fl. hd. socket cap (164-134)
2шт.
11
F60640
SHIM
- stationary knife
3шт.
SCREW - 5/8" x 1-1/2" N.C. fl. hd. socket cap (164-81) nut (25-1010) L.W. (92-10)
3шт.
12
F60641
BAR
KNIFE - stationary
1шт.
13
F60617
BOLT - plunger roller
2шт.
NUT - 5/8" N.C. hex. (25-1010) L.W. (92-10)
2шт.
WASHER - 21/32" flat (195-41)
1шт.
14
F60616
BEARING
ROLLER - plunger, upper and lower
2шт.
15
F4910
RUNNER (Wood) Wear
1шт.
BOLT - 3/8" x 1-3/4" rhd. sq. nk. (11-628) nut (25-106) L.W. (92-6)
3шт.
16
F95588
PLUNGER
1шт.
SCREW - 3/8" x 3/4" N.C. sq. hd. cup pt. set (85-612) jam nut (25-146)
2шт.
17
F60942
ARM - wiper (#8175101 and after)
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115) L.W. (92-5)
2шт.
18
F60618
PIN - wrist, plunger Pitman
1шт.
19
F60613
SHEET - side (Before #8175101) See ref. 7
1шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5)
2шт.
20
F60614
KNIFE - plunger (Before #8175101) See ref. 10
1шт.
SCREW - 5/8" x 1-1/4" N.F. fl. hd. socket cap (164-134)
3шт.
21
F60615
SHIM - knife (Before #8175101)
1шт.
Выбрано товаров: 37
