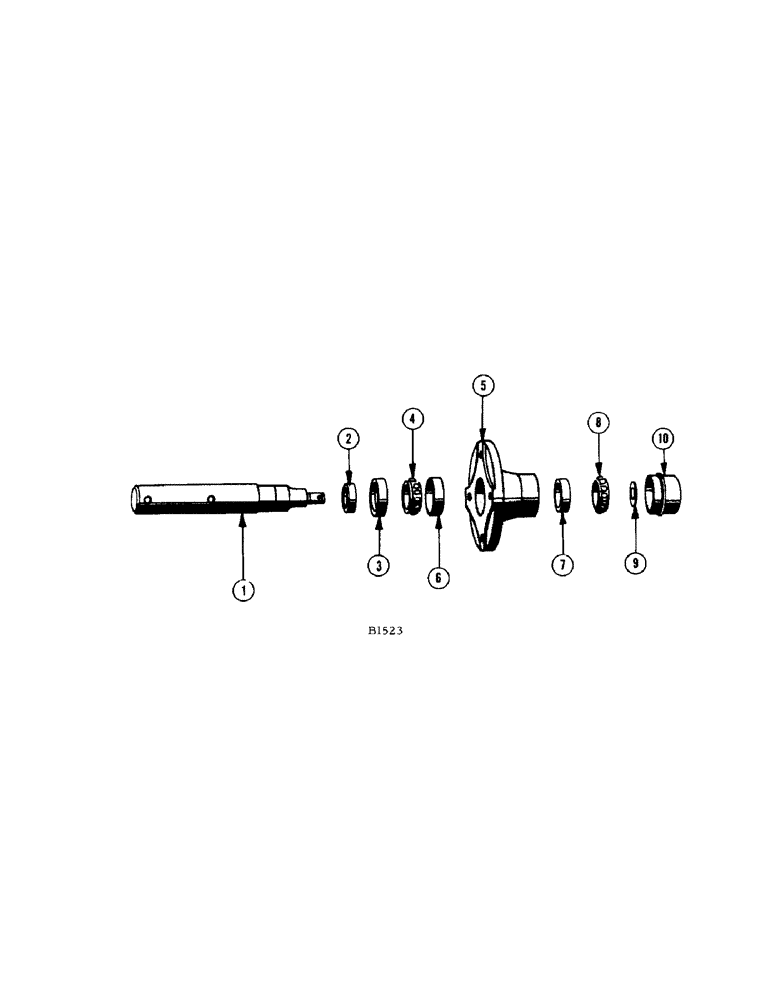

Запчасти Case IH 200 (16[A]) - FEEDER ARM PIVOT SPINDLE

1

F60680

SPINDLE

- pivot

1шт.

BOLT - 3/8" x 3" N.F. hex. (14-648) nut (25-116) L.W. (92-6)

2шт.

NUT - 5/8" N.F. slotted hex.

1шт.

PIN - 5/32" x 1" cotter (132-69)

1шт.

2

F60673

COLLAR - spindle

1шт.

3

FD3792

OIL SEAL

SEAL - oil, spindle hub

1шт.

4

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - lower

1шт.

5

F95416

HUB

- spindle

1шт.

6

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - lower

1шт.

7

B12410

BEARING, CUP,1.782" OD

CUP - upper

1шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) L.W. (92-8)

4шт.

8

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - upper

1шт.

9

O2736AB

WASHER (1-3/8" O.D. x 21/32" I.D. #12 ga.) Spindle slotted nut

1шт.

10

MT2560S

CAP

- hub

1шт.
