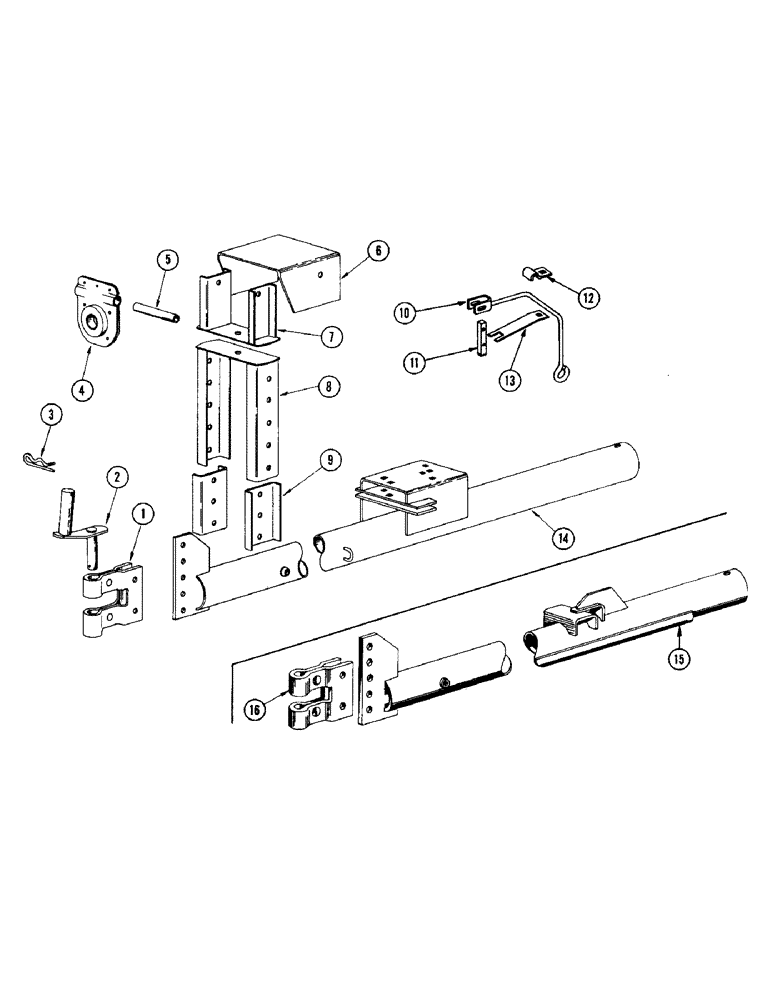

Запчасти Case IH 200 (12) - LONG DRAWBAR AND HANGER BEARING SUPPORTS

1

F2563

CLEVIS

- drawbar (#8221501 and after) See ref. 16

1шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) nut (25-118) L.W. (92-8)

2шт.

2

F95752

PIN - drawbar

1шт.

PIN - 1/8" x 1-1/4" cotter (132-50)

1шт.

3

T25682

SPLIT PIN

PIN - hair cotter

1шт.

4

F60913

BEARING - hanger

1шт.

BOLT - 1/2" x 5-1/2" N.C. hex. (13-888) nut (25-108) L.W. (92-8)

1шт.

5

F60912

SPACER - hanger bearing

1шт.

6

F95550

SHIELD - hanger bearing

1шт.

7

F95549

SWIVEL - PTO hanger bearing

1шт.

8

F95548

STANDARD - PTO hanger bearing

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) Flexloc nut (131-530)

1шт.

WASHER - 1/2" flat (95-8)

1шт.

9

F60910

ARM - vertical, standard

2шт.

BOLT - 3/8" x 1-3/4" N.F. hex. (14-628) nut (25-116) L.W. (92-6)

4шт.

BOLT - 1/2" x 5" N.F. hex. (114-416) Flexloc nut (131-578)

1шт.

WASHER - 1/2" flat (95-8)

2шт.

10

F95614

LIFT - pin (#8221501 and after)

1шт.

CORD - 1/4" braided cotton sash (134")

1шт.

11

F60986

PIN - drawbar swivel (#8221501 and after)

1шт.

PIN - 1/4" x 1" roll (138-134)

1шт.

PIN - 1/8" x 3/4" cotter (132-146)

1шт.

12

F60985

BRACKET - drawbar pin lift (#8221501 and after)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5)

1шт.

13

F60987

SPRING - drawbar pin (#8221501 and after)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5)

1шт.

14

F95620

DRAWBAR (#8221501 and after) See ref. 15

1шт.

BOLT - 5/8" x 5" N.F. hex. (14-1080) Flexloc nut (131-580)

1шт.

15

F95546

DRAWBAR (Before #8221501) See ref. 14

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118) L.W. (92-8) fl. wshr. (95-8)

2шт.

16

B18253

COUPLING

- drawbar (Before #8221501) See ref. 1

1шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) nut (25-118) L.W. (92-8)

2шт.
